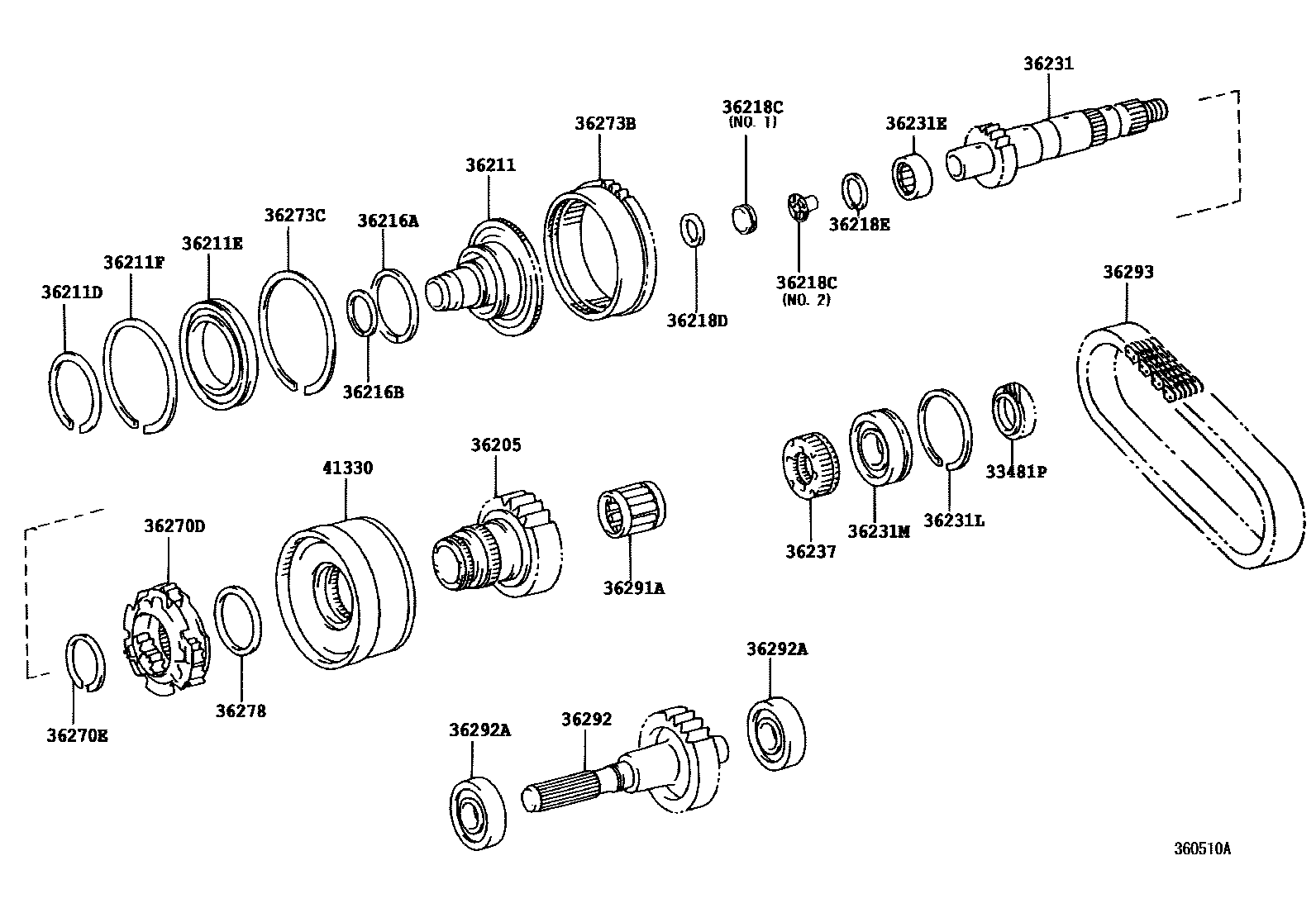

Toyota LITE/TOWNACE — TRANSFER GEAR
33481PGEAR, SPEEDOMETER DRIVE (FOR TRANSFER)
36205SPROCKET SUB-ASSY, TRANSFER DRIVE
36211SHAFT, TRANSFER INPUT
36211DRING, HOLE SNAP (FOR TRANSFER INPUT SHAFT)
36211EBEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT)
36216ARING, TRANSFER INPUT SHAFT SEAL, NO.1
36216BRING, TRANSFER INPUT SHAFT SEAL, NO.2
36218CPLUG, TRANSFER INPUT SHAFT
36218DRING, O (FOR TRANSFER INPUT SHAFT PLUG)
36218ERING, HOLE SNAP (FOR TRANSFER INPUT SHAFT PLUG)
36231SHAFT, TRANSFER OUTPUT, REAR
36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)
36231LRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT REAR)
36231MBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)
36237HUB, TRANSFER CLUTCH
36270DGEAR ASSY, MANUAL TRANSFER PLANETARY
36270ERING, SHAFT SNAP (FOR MANUAL TRANSFER PLANETARY GEAR)
36273BGEAR, MANUAL TRANSFER PLANETARY RING
36273CRING, HOLE SNAP (FOR MANUAL TRANSFER PLANETARY RING GEAR)
36278WASHER, MANUAL TRANSFER PLANETARY CARRIER
36291ABEARING (FOR TRANSFER DRIVE SPROCKET)
36292SPROCKET, TRANSFER DRIVEN
36292ABEARING (FOR TRANSFER DRIVEN SPROCKET)
36293CHAIN, TRANSFER FRONT DRIVE
41330COUPLING ASSY, CENTER DIFFERENTIAL CONTROL
25 parts on this diagram · 1 diagram in section
