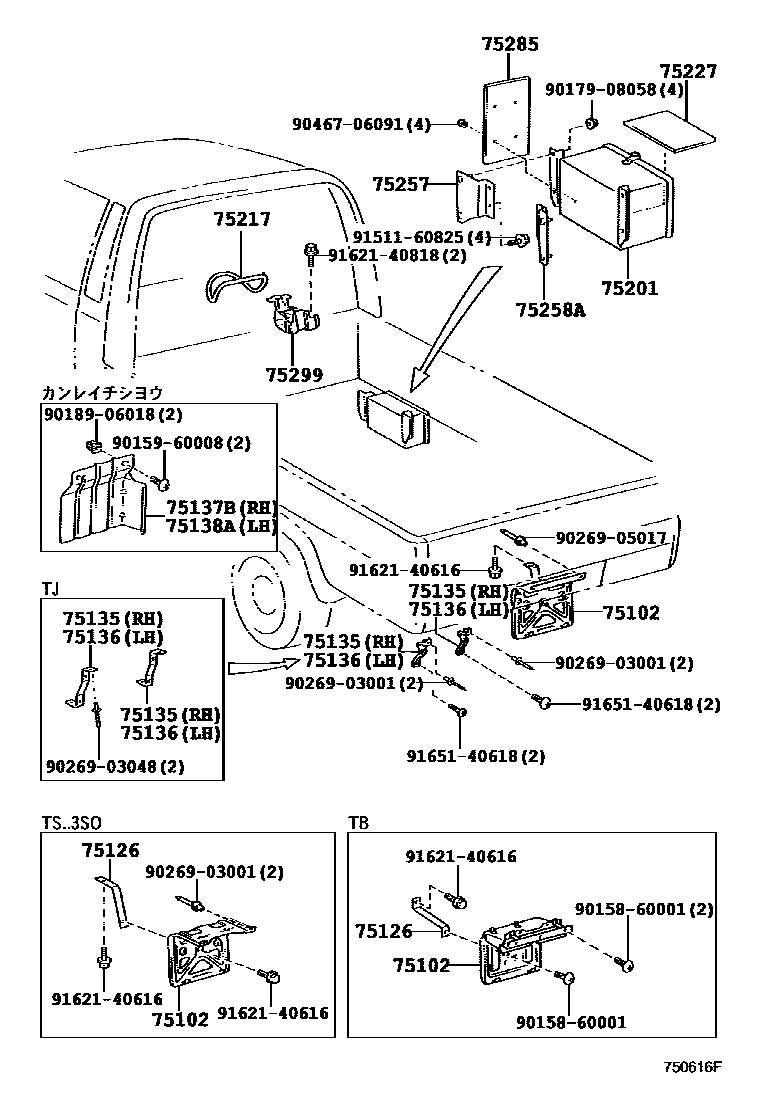

Toyota LITE/TOWNACE — TOOL BOX & LICENSE PLATE BRACKET

0001 1 0002 1

75102BRACKET SUB-ASSY, REAR LICENSE PLATE

main66490-95702iCM75,8#..TB¥8,400199906-200408

main75102-27020iKM70..1SO;KM70..GUT;CM80,KM80..T1¥2,710199906-200208

main75121-95706iCM80..TS;CM7#,85..TS..CBU;CM70,KM70,80..JL..5H..IV3¥1,330199906-200408

75126STAY, REAR LICENSE PLATE BRACKET, LOWER

main66493-27010iCM70..CBU¥1,470199906-200408

main66493-27020iCM75..TS..CBU;CM70,80,KM70,80..JL..5H..IV3¥880199906-200408

main66493-95713iCM75,KM75..TB¥630199906-200408

main66493-95714iCM85,KM85..TS..CBU¥1,090199906-200408

main66493-95715iCM80..TB¥1,340199906-200408

main66493-95716iKM70..TS..3SO..5H..CBU¥1,680200501

main66493-95716iKM80..TS..CBU¥1,680199906-200408

main66493-95717iCM85..TB¥620199906-200408

main66493-95718iKM70..TB¥1,010199906-200208

75135BRACKET, COMBINATION REAR LAMP, RH

main75105-27030iKM70,80..IV3¥5,300200408-200708

main75105-27040iKM75,85..IV3,IV6¥4,400200408-200708

main75107-27901iKM70..1SO¥7,100200408-200708

main75130-27010iCM80,KM80;CM70,KM70..JL..5H..IV3;CM7#,85,KM7#,85..3SO..CBU¥840199906-200408

main75135-27030iKM7#,8#..3SO..CBU¥2,140200408-200708

main75135-95704iKM70..TJ¥750199906-200208

75136BRACKET, COMBINATION REAR LAMP, LH

main75106-27030iKM70,80..IV3¥4,580200408-200708

main75106-27040iKM75,85..IV3,IV6¥3,790200408-200708

main75108-27901iKM70..1SO¥7,100200408-200708

main75130-27010iCM80,KM70,80..JL;CM70..JL..5H..IV3;KM70..SJL..3SO..CBU;CM7#,85,KM75,85..CBU¥840199906-200408

main75135-27030iKM7#,8#..3SO..CBU¥2,140200408-200708

main75135-95704iKM70..TJ¥750199906-200208

75137BCOVER, COMBINATION REAR LAMP, RH

main75137-95700iCM75,85,KM75,85..CBU¥3,590199906-200408

main75137-95701iCM80,KM80..3SO..CBU¥3,420199906-200408

main75137-95702iKM70..GUT;KM70..TS..1SO;CM80,KM80..T1¥2,110199906-200408

75138ACOVER, COMBINATION REAR LAMP, LH

main75138-95700iCM75,85,KM75,85..CBU¥3,590199906-200408

main75138-95701iCM80,KM80..3SO..CBU¥3,420199906-200408

main75138-95702iKM70..GUT;KM70..TS..1SO;CM80,KM80..T1¥2,110199906-200408

75201BOX SUB-ASSY, TOOL W/STAY

main75210-95701iCM75,KM75..SJLC¥18,400199906-200208

75217BAND, TOOL BAG

main58705-27010iCM7#,8#,KM7#,8#¥1,480199906-200408

75227CUSHION, TOOL BOX

main75227-95700iCM75,KM75..SJLC¥1,590199906-200208

75257SUPPORT, TOOL BOX, FRONT

main75257-95702iCM75,KM75..SJLC¥2,410199906-200208

75258ASUPPORT, TOOL BOX, REAR

main75258-95702iCM75,KM75..SJLC¥2,790199906-200208

75285PROTECTOR, TOOL BOX

main75285-27010iCM75,KM75..SJLC¥1,940199906-200208

75299BASE, JACK HOLDER

main75299-95702iCM7#,8#,KM7#,8#¥2,170199906-200408

9015860001

main90158-60001¥120

9015960008

main90159-60008¥70

9017908058

main90179-08058¥320

9018906018

main90189-06018¥80

9026903001

main90269-03001¥170

9026903048

main90269-03048¥320

9026905017

main90269-05017¥330

9046706091

main90467-06091¥90

9151160825

main91511-60825¥130

9162140616

main91621-40616¥80

9162140818

main91621-40818¥80

9165140618

main91651-40618¥260

25 parts on this diagram · 2 diagrams in section
