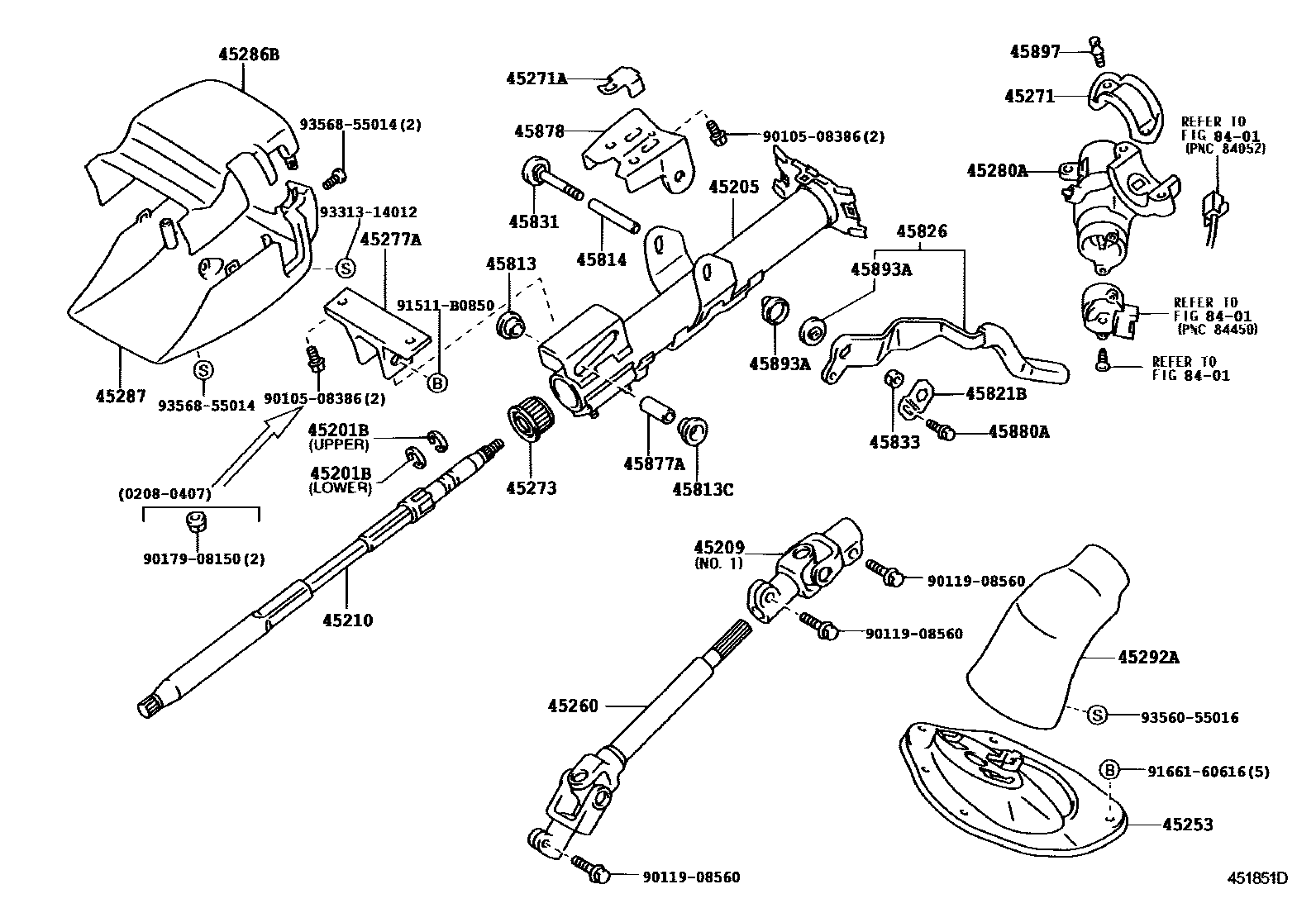

Toyota LITE/TOWNACE — STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iCM7#,8#¥120199906-200408

main90520-17269iCM7#,8#,KM7#,8#¥120199906-200408

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-27190iCM7#,8#,KM7#,8#..5H¥6,700199906-200004

sub45205-27191¥6,700

main45205-27191iKM7#,8#..5H¥6,700200004-200408

main45205-28210iCM7#,85..4HC¥5,800199906-200408

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-27020iCM7#,8#,KM7#,8#¥7,500199906-200208

main45209-44010iCM7#,8#,KM7#,8#¥9,300199906-200408

45210SHAFT ASSY, STEERING MAIN

main45210-27110iCM7#,8#,KM7#,8#¥3,060199906-200408

45253COVER, STEERING COLUMN HOLE

main45253-27160iCM7#,8#,KM7#,8#¥4,010199906-200408

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-27020iCM7#,8#,KM7#,8#¥14,800199906-200408

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iCM7#,8#,KM7#,8#¥520199906-200408

45271ACLAMP, STEERING COLUMN, UPPER NO.2

main45271-52010iCM7#,8#,KM7#,8#¥130199906-200408

45273BUSH, STEERING MAIN SHAFT

main45273-33030iCM7#,8#,KM7#,8#¥630199906-200408

45277ASUPPORT, TILT STEERING

main45277-28030iCM7#,8#,KM7#,8#¥670199906-200408

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-28240iCM7#,8#..5H¥14,800199906-200408

sub45280-28250¥14,800

main45280-28250iCM7#,85,KM7#..4HC¥14,800199906-200408

45286BCOVER, STEERING COLUMN, UPR

main45286-27330-B0iCM7#,8#,KM7#,8#..5H199906-200708

DK.CHARCOAL,TRIM1#

main45286-27340-B0iCM7#,85,KM7#..4HC199906-200708

DK.CHARCOAL,TRIM1#

45287COVER, STEERING COLUMN, LWR

main45287-27160-B0iCM7#,8#,KM7#,8#..5H199906-200708

DK.CHARCOAL,TRIM1#

main45287-27170-B0iCM7#,85,KM7#..4HC199906-200708

DK.CHARCOAL,TRIM1#

45292ACOVER, MAIN SHAFT LOWER DUST

main45292-27040iCM7#,8#,KM7#,8#¥1,150199906-200408

45813COLLAR, TILT STEERING SUPPORT, NO.1

main45813-52010iCM7#,8#¥120199906-200408

45813CCOLLAR, TILT STEERING SUPPORT, NO.1

main45813-52020iCM7#,8#,KM7#,8#¥120199906-200408

45814COLLAR, TILT STEERING SUPPORT, NO.2

main45814-52010iKM7#,8#¥170199906-200408

45821BREINFORCE, TILT STEERING SUPPORT, NO.1

main45821-52010iKM7#,8#¥240199906-200408

45826LEVER, STEERING TILT

main45826-27010iKM7#,8#..5H¥2,760199906-200408

main45826-28040iKM7#,85..4HC¥1,070199906-200408

45831BOLT, TILT LEVER LOCK, NO.1

main45831-52010iCM7#,8#¥320199906-200408

45833NUT, TILT STEERING ADJUSTING, NO.1

main45833-52010iCM7#,8#,KM7#,8#¥320199906-200408

45877ASPACER, STEERING COLUMN BRACKET

main45877-52010iCM7#,8#,KM7#,8#¥360199906-200408

45878BRACKET, STEERING COLUMN UPPER SUPPORT

main45878-52010iCM7#,8#,KM7#,8#¥1,070199906-200408

45880ABOLT(FOR STEERING TILT LEVER)

main45832-12010iCM7#,8#,KM7#,8#¥200199906-200408

45893ASTOPPER, TILT STEERING PAWL

main45893-52010iCM7#,8#,KM7#,8#¥320199906-200408

45897BOLT, STEERING LOCK SET

main45897-12020iCM7#,8#,KM7#,8#¥210199906-200408

8401

9010508386

main90105-08386¥130

9011908560

main90119-08560¥110

9017908150

main90179-08150¥120

91511B0850

main91511-B0850¥190

9166160616

main91661-60616¥70

9331314012

main93313-14012¥60

9356055016

main93560-55016¥70

9356855014

main93568-55014¥70

35 parts on this diagram · 3 diagrams in section
