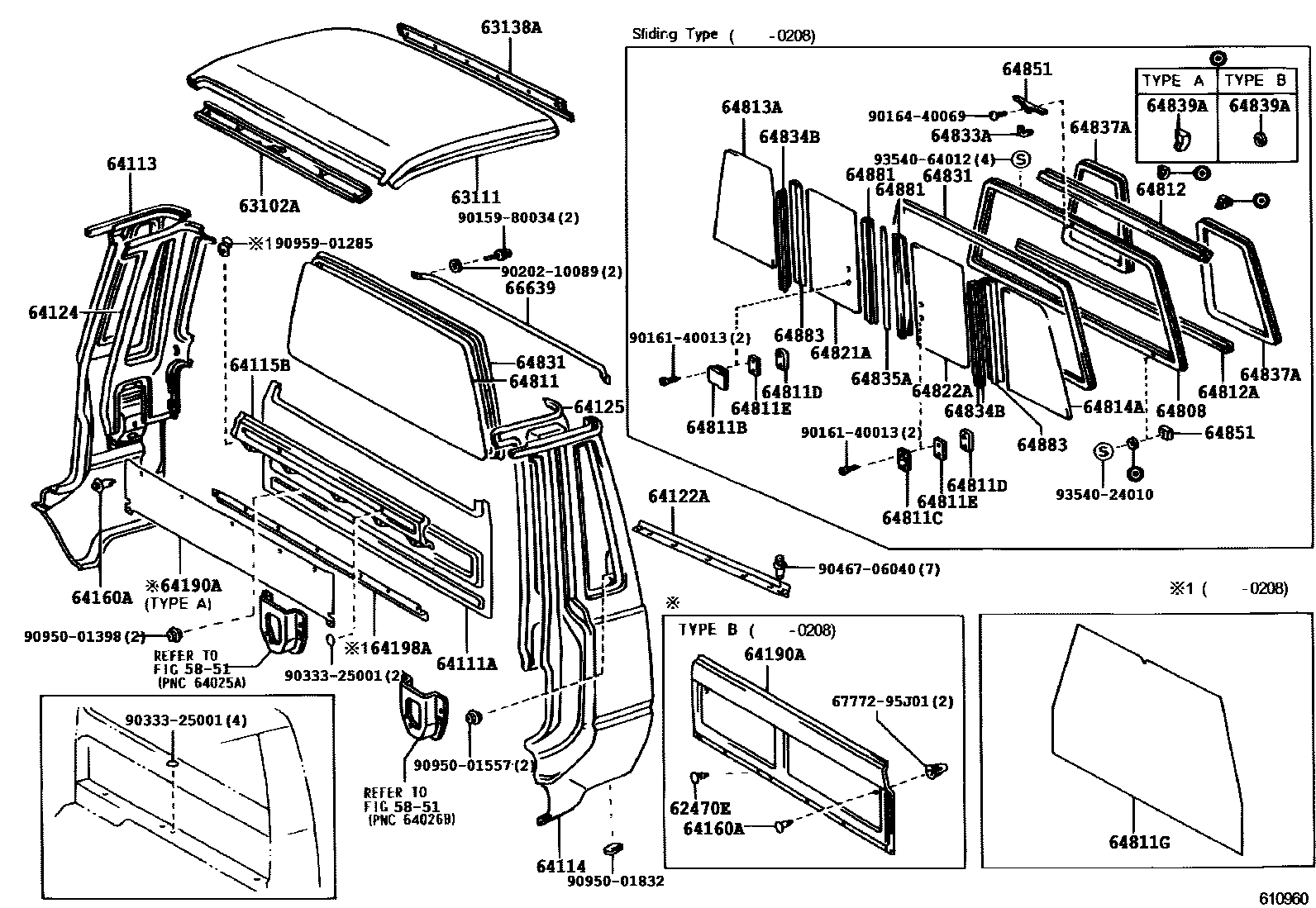

Toyota LITE/TOWNACE — ROOF PANEL & BACK PANEL

5851

62470ECLIP(FOR BACK PANEL TRIM)

main90467-10034-B7iCM85..TS;CM7#,80,KM7#,8#199906-200208

DK.CHARCOAL,TRIM1#

sub90467-10034¥130

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-95706iCM7#,8#,KM7#,8#..DX¥5,700199906-200408

main63102-95707iCM85..TS;CM7#,80,KM7#,8#¥5,700199906-200208

63111PANEL, ROOF

main63111-27010iCM7#,8#,KM7#,8#¥17,800200205-200408

main63111-95715iCM7#,8#,KM7#,8#¥18,400199906-200205

sub63111-27010¥17,800

63138AREINFORCEMENT, BACK WINDOW, UPPER

main63138-95700iCM7#,8#,KM7#,8#¥3,650199906-200408

64111APANEL, BACK

main64111-27020iCM7#,8#,KM7#,8#¥20,600199906-200103

sub64111-27040¥25,300

sub90950-01181¥220

main64111-27040iCM7#,8#,KM7#,8#¥25,300200103-200408

64113PANEL, BACK CORNER, OUTER RH

main64103-27010iCM7#,8#,KM7#,8#¥34,400199906-200205

sub64103-27090¥22,900

main64103-27020iKM70,80..TS..1SO..DX¥34,400199906-200205

sub64103-27100¥23,000

main64103-27030iCM7#,8#¥34,200200205-200408

main64103-27040iKM70..1SO¥34,200200205-200208

64114PANEL, BACK CORNER, OUTER LH

main64104-27010iCM7#,8#,KM7#,8#¥34,400199906-200205

sub64104-27090¥22,100

main64104-27020iKM70,80..TS..1SO..DX¥34,400199906-200205

sub64104-27100¥22,300

main64104-27030iCM7#,8#,KM7#,8#¥34,400200205-200301

main64104-27031iCM7#,8#¥34,200200301-200408

main64104-27040iKM70,80..TS..1SO..DX¥34,400200205-200301

main64104-27041iKM70..1SO¥34,200200301

64115BREINFORCEMENT, BACK PANEL

main64115-27010iKM7#,8#¥6,800199906-200408

64122ABAFFLE, DUST REAR BODY

main64122-27030iCM7#,8#,KM7#,8#¥910199906-200408

64124PANEL, BACK CORNER, INSIDE, RH

main64015-27010iCM7#,8#,KM7#,8#..DX¥16,100199906-200205

sub64015-27060¥16,100

main64015-27011iCM7#,8#,KM7#,8#..DX¥16,100200205-200208

sub64015-27060¥16,100

main64015-27020iCM85..TS;CM7#,80,KM7#,8#¥16,100199906-200205

sub64015-27070¥16,100

main64015-27021iCM85..TS;CM7#,80,KM7#,8#¥16,100200205-200208

sub64015-27070¥16,100

main64015-27030iCM7#,8#,KM7#,8#¥16,100200208-200408

main64015-27040iKM7#,8#¥16,100200408

64125PANEL, BACK CORNER, INSIDE, LH

main64016-27020iCM7#,8#,KM7#,8#..DX¥16,100199906-200205

sub64016-27080¥16,100

main64016-27021iCM7#,8#,KM7#,8#..DX¥16,100200205-200208

sub64016-27080¥16,100

main64016-27030iCM85..TS;CM7#,80,KM7#,8#¥16,100199906-200205

sub64016-27140¥16,100

main64016-27031iCM85..TS;CM7#,80,KM7#,8#¥16,100200205-200208

sub64016-27140¥16,100

main64016-27040iCM70,80,KM70,80..JL..5H..IV3¥16,100199906-200205

sub64016-27090¥16,100

main64016-27041iCM70,80,KM70,80..JL..5H..IV3¥16,100200205-200208

sub64016-27090¥16,100

main64016-27080iCM7#,8#,KM7#,8#¥16,100200208-200408

main64016-27090iCM70,80,KM70,80..JL..5H..IV3¥16,100200208-200408

main64016-27130iKM7#,8#¥16,100200408

64160ACLIP(FOR BACK PANEL UPPER SILENCER)

main90467-06171-B4iCM7#,8#;KM8#..TS..CBU;KM7#..SJL..TS..3SO..CBU200208-200708

sub90467-06171¥110

main90467-06171-C0iCM7#,8#199906-200208

sub90467-06171¥110

main90467-07054-B3iCM85..TS;CM7#,80,KM7#,8#199906-200208

sub90467-07054¥110

64190ASILENCER ASSY, BACK PANEL

main64190-27010-B2iCM85..TS;CM7#,80,KM7#,8#199906-200208

main64190-27020iCM7#,8#¥7,600199906-200208

main64190-27021-B1iCM7#,8#;KM8#..TS..CBU;KM7#..SJL..TS..3SO..CBU200208-200708

64198ABRACKET, BACK PANEL SILENCER

main64198-95700iCM85..TS;CM7#,80,KM7#,8#¥3,960199906-200208

64808CHANNEL SUB-ASSY, BACK WINDOW SLIDE GLASS

main64808-95700iKM70,80..SPX¥14,800199906-200208

64811GLASS, BACK WINDOW

main64811-27010iCM7#,8#,KM7#,8#..DX¥25,500199906-200408

64811BLOCK ASSY, BACK WINDOW

main69370-89102iKM70,80..SPX¥1,250199906-200208

64811CCATCH, BACK WINDOW LOCK

main69374-89102iKM70,80..SPX¥390199906-200208

64811DRETAINER, BACK WINDOW

main69375-89102iKM70,80..SPX¥450199906-200208

64811EPACKING, BACK WINDOW LOCK

main69376-89102iKM70,80..SPX¥140199906-200208

64811GCOVER, BACK WINDOW

main64811-27050iKM75,85..IV6¥2,110200106-200408

64812WEATHERSTRIP, BACK WINDOW GLASS, NO.1

main64812-95700iKM70,80..SPX¥2,010199906-200208

64812AWEATHERSTRIP, BACK WINDOW GLASS, NO.2

main64832-95700iKM70,80..SPX¥2,390199906-200208

64813AGLASS, BACK WINDOW CORNER, RH

main64813-27010iKM70,80..SPX¥7,500199906-200208

64814AGLASS, BACK WINDOW CORNER, LH

main64814-27010iKM70,80..SPX¥7,500199906-200208

64821AGLASS, BACK WINDOW SLIDE, RH

main64821-27010iKM70,80..SPX¥7,400199906-200208

64822AGLASS, BACK WINDOW SLIDE, LH

main64822-27010iKM70,80..SPX¥7,400199906-200208

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-95700iCM7#,8#,KM7#,8#¥6,400199906-200408

64833AWEATHERSTRIP, BACK WINDOW CENTER CHANNEL

main64833-89109iKM70,80..SPX¥140199906-200208

64834BWEATHERSTRIP, BACK WINDOW GLASS, INNER

main64834-95700iKM70,80..SPX¥850199906-200208

64835AWEATHERSTRIP, BACK WINDOW GLASS, CENTER

main64835-95700iKM70,80..SPX¥440199906-200208

64837AWEATHERSTRIP, BACK WINDOW CORNER

main64837-95700iKM70,80..SPX¥2,170199906-200208

64839APACKING, BACK WINDOW

main64839-89103iKM70,80..SPX¥130199906-200208

main64839-89104iKM70,80..SPX¥200199906-200208

main64839-95700iKM70,80..SPX¥180199906-200208

64851STOP, BACK WINDOW SLIDE GLASS

main64851-89102iKM70,80..SPX¥300199906-200208

main64852-95700iKM70,80..SPX¥270199906-200208

64881CHANNEL, BACK WINDOW GLASS

main64885-95700iKM70,80..SPX¥1,340199906-200208

main64886-95700iKM70,80..SPX¥1,340199906-200208

64883FRAME, BACK WINDOW

main64881-95700iKM70,80..SPX¥2,170199906-200208

66639BAR, BACK WINDOW GUARD, LOWER

main66639-95700iKM70,80..TS..1SO..DX¥10,900199906-200208

6777295J01WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-95J01¥100

9015980034

main90159-80034¥120

9016140013

main90161-40013¥70

9016440069

main90164-40069¥120

9020210089

main90202-10089¥230

9033325001

main90333-25001¥140

9046706040

main90467-06040¥120

9095001398

main90950-01398¥100

9095001557

main90950-01557¥200

9095001832

main90950-01832¥110

9095901285

main90959-01285¥230

9354024010

main93540-24010¥160

9354064012

main93540-64012¥80

51 parts on this diagram · 1 diagram in section
