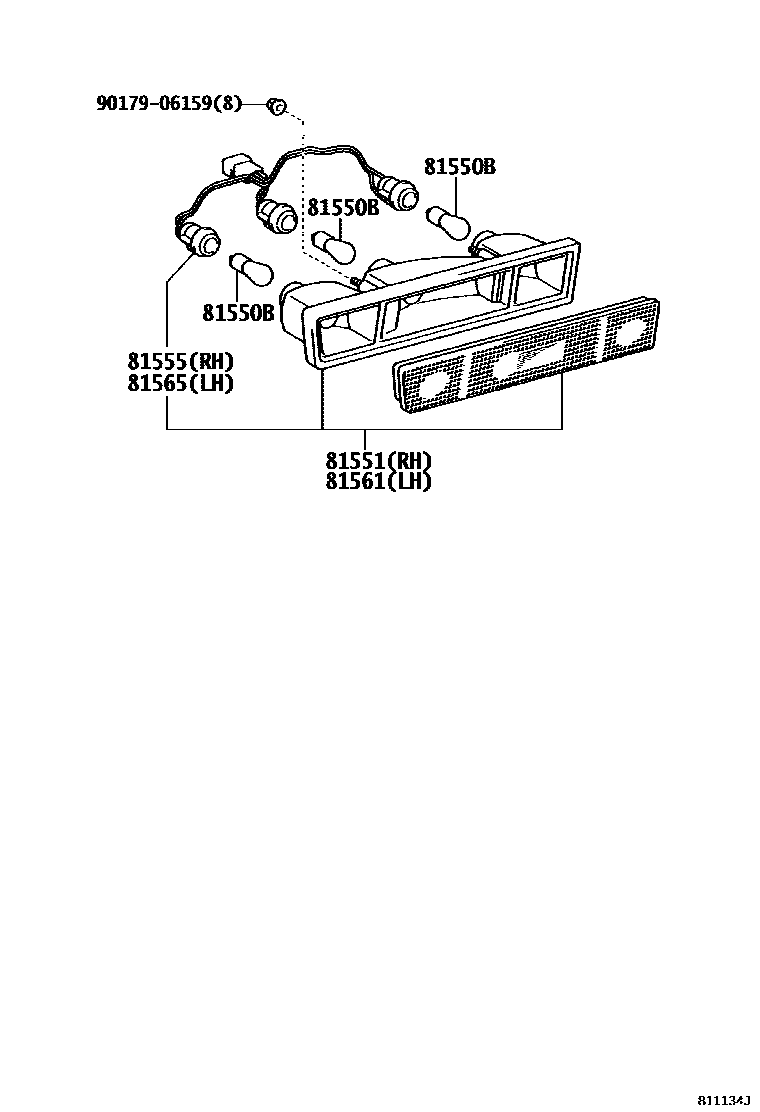

Toyota LITE/TOWNACE — REAR COMBINATION LAMP

0001 1 0002 1 0003 1����� ���

81550LAMP ASSY, REAR COMBINATION, RH

main81550-25100iCM70,80,KM70,80..5H..IV3¥7,100199906-200408

main81550-27070iKM7#,8#..IV3,IV6¥11,800200408-200704

main81550-37280iKM7#,8#..IV3,IV6¥7,400200704

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210iCM7#,8#,KM7#,8#¥170199906-200208

main99132-21210iCM7#,8#,KM7#,8#¥190199906-200208

81551LENS, REAR COMBINATION LAMP, RH

main81551-25060iCM70,80,KM70,80..5H..IV3¥1,860199906-200408

main81551-27050iKM70..3SO;CM7#,8#,KM75,8#¥11,900199906-200408

main81551-27051iKM70..1SO¥11,900199906-200408

main81551-60442iKM7#,8#¥1,970200408

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-27050iCM7#,8#,KM7#,8#..3SO¥2,470199906-200408

main81555-27051iKM70..1SO;KM70..GUT;CM80,KM80..T1¥2,470199906-200408

81561LENS, REAR COMBINATION LAMP, LH

main81561-25040iCM70,80,KM70,80..5H..IV3¥1,860199906-200408

main81561-27050iKM70..3SO;CM7#,8#,KM75,8#¥11,900199906-200408

main81561-27051iKM70..1SO;KM70..GUT;CM80,KM80..T1¥11,900199906-200408

main81561-60372iKM7#,8#¥1,970200408

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-27050iKM70..3SO;CM7#,8#,KM75,8#¥2,470199906-200408

main81555-27051iKM70..1SO;KM70..GUT;CM80,KM80..T1¥2,470199906-200408

9017906159

main90179-06159¥70

7 parts on this diagram · 3 diagrams in section
