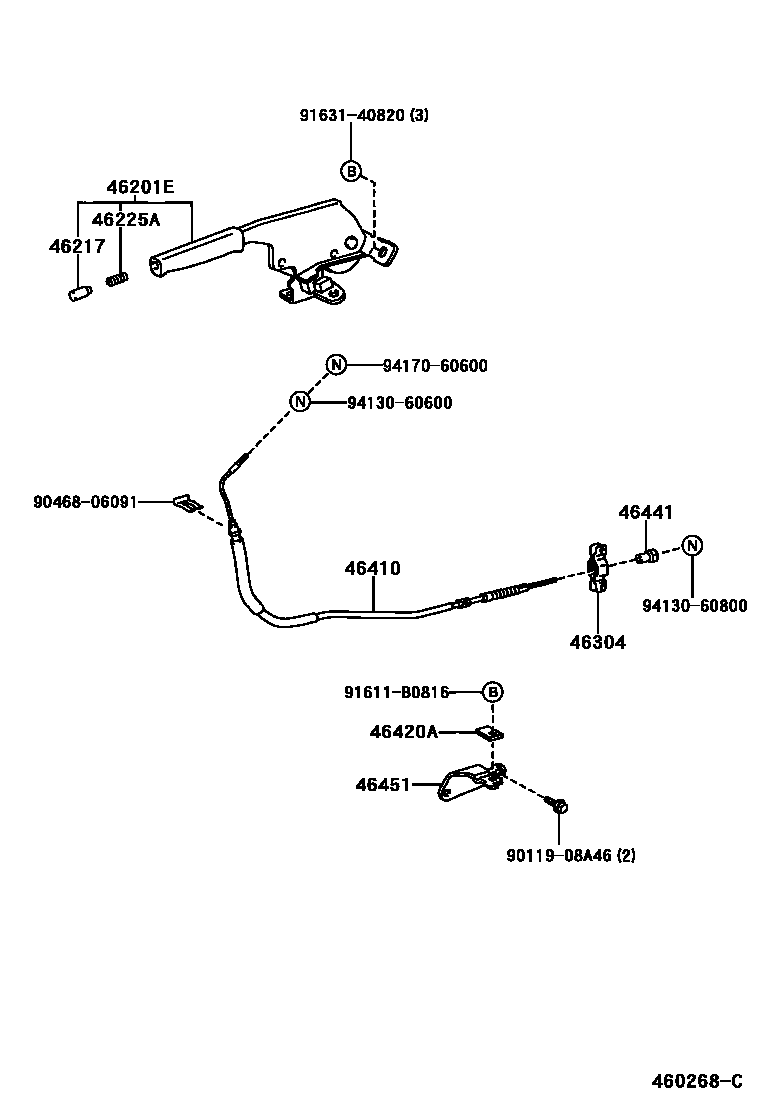

Toyota LITE/TOWNACE — PARKING BRAKE & CABLE

0001 1 0002 1 0004 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-27022-B1iCM7#,8#,KM7#,8#199906-200708

DK.CHARCOAL,TRIM1#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-12020-B5iCM7#,8#,KM7#,8#199906-200708

DK.CHARCOAL,TRIM1#

sub46217-12020¥230

sub46217-16030¥240

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10132iCM7#,8#,KM7#,8#¥160199906-200408

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-28010iCM7#,8#,KM7#,8#¥440199906-200408

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-27220iCM7#,8#,KM7#,8#¥3,700199906-200408

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-27330iCM85,KM85¥5,100199906-200203

main46420-27331iCM85,KM85¥5,400200204-200708

main46420-27340iCM80,KM80¥4,770199906-200203

main46420-27341iCM80,KM80¥4,930200204-200708

main46420-27350iCM75,KM75¥5,100199906-200708

main46420-27360iCM70,KM70..SJL¥4,780199906-200708

main46420-27370iCM70,KM70..JL,T1¥4,780199906-200708

main46420-27380iCM75..IV3¥5,400199906-200208

main46420-27390iCM85..IV3¥5,400199906-200208

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01167iKM7#,8#¥320199906-200408

46441NUT, WIRE ADJUSTING, NO.1

main46441-35010iKM7#,8#¥230199906-200408

46451BRACKET, CABLE SUPPORT

main46451-27130iCM7#,8#¥780199906-200408

9011908A46

main90119-08A46¥80

9046806091

main90468-06091¥50

91611B0816

main91611-B0816¥140

9163140820

main91631-40820¥130

9413060600

main94130-60600¥80

9413060800

main94130-60800¥60

9417060600

main94170-60600¥60

16 parts on this diagram · 3 diagrams in section
