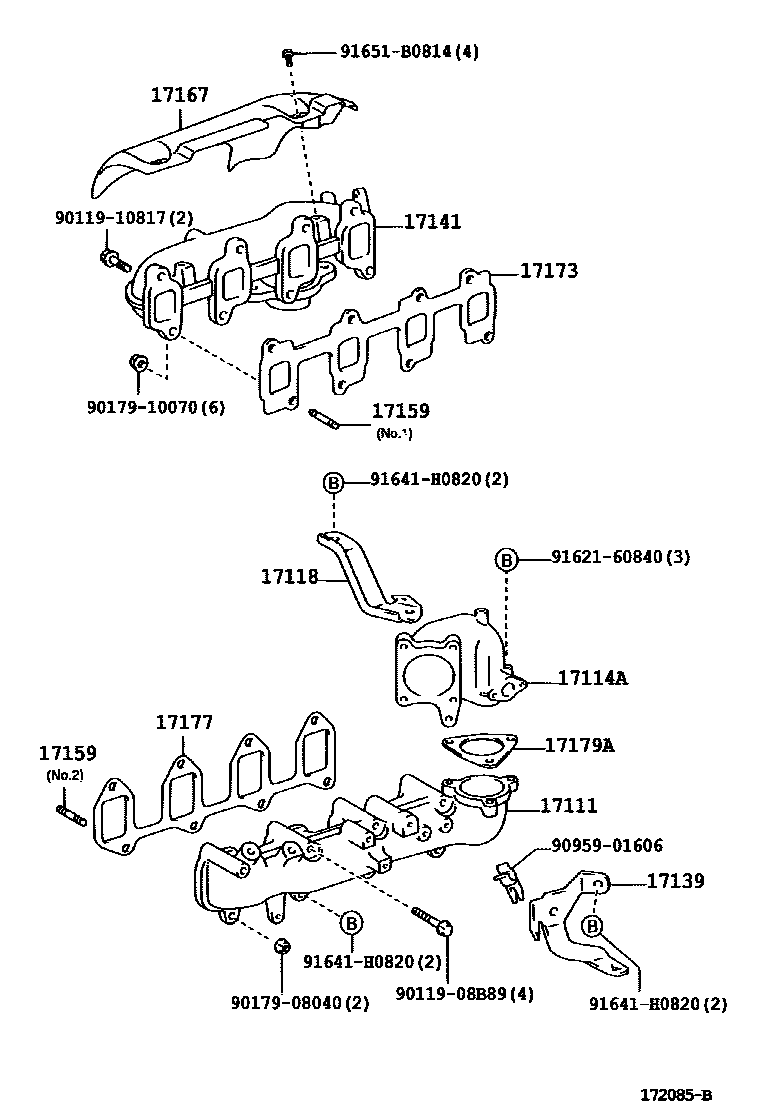

Toyota LITE/TOWNACE — MANIFOLD
17111MANIFOLD, INTAKE
17114AFLANGE, INTAKE
17118STAY, MANIFOLD
17139STAY, MANIFOLD, NO.2
17141MANIFOLD, EXHAUST
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
�m�n�D�P
�m�n�D�P
�m�n�D�Q
�m�n�D�Q
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17179AGASKET, INTAKE MANIFOLD, NO.2
9011908B89
9011910817
9017908040
9017910070
9095901606
9162160840
91641H0820
91651B0814
18 parts on this diagram · 3 diagrams in section
