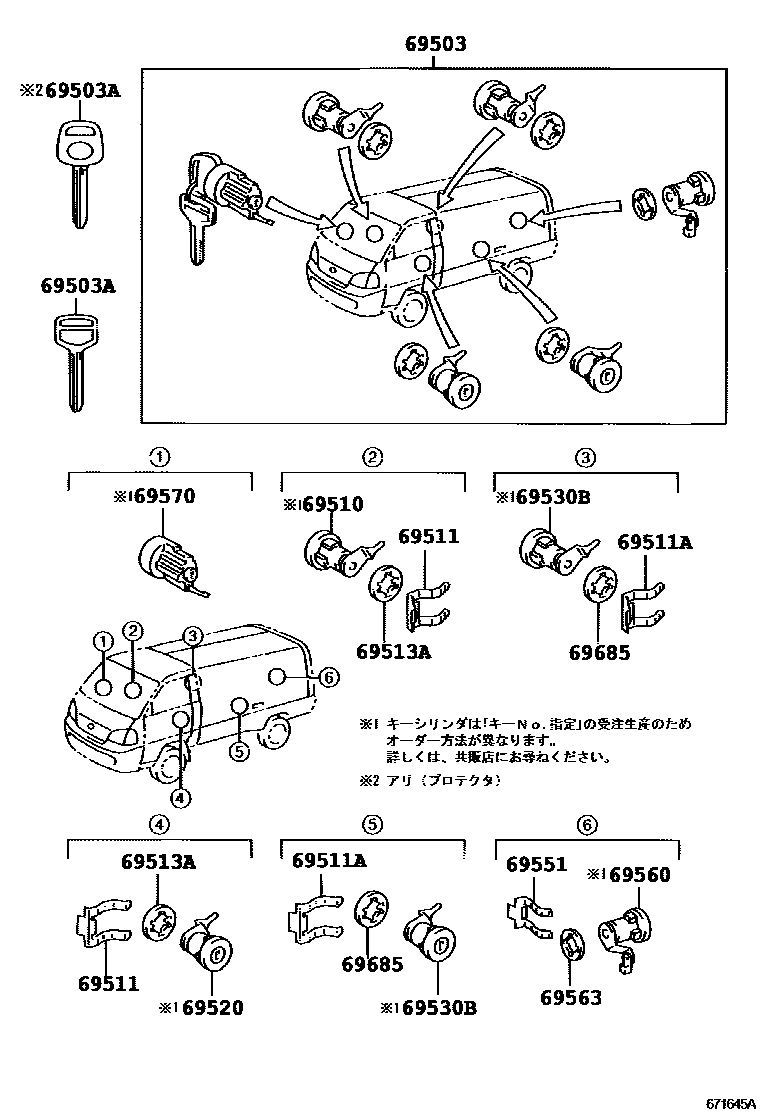

Toyota LITE/TOWNACE — LOCK CYLINDER SET

0001 1 0002 1

69503CYLINDER SET, LOCK

main69503-27340iCM7#,8#,KM7#,8#..(1SO,3SO)..DX¥12,800199906-200208

main69503-27350iCM80,KM70..GUT¥18,100199906-200208

main69503-27360iKM70,80..SPX¥14,700199906-200208

main69503-27370iKM70,80..TS..1SO..DX¥18,100199906-200208

main69503-27380iKM70,80..SPX¥19,800199906-200208

main69503-27400iCM7#,8#,KM7#,8#¥12,900200208

main69503-27410iKM70..1SO¥14,900200208

main69503-27420iKM8#..TS..CBU;KM7#..SJL..TS..3SO..CBU¥12,900200208-200507

sub69503-27421¥12,900

main69503-27421iKM8#..TS..CBU;KM7#..SJL..TS..3SO..CBU¥12,900200508

69503AKEY, BLANK

main90999-00130iCM7#,8#,KM7#,8#¥1,550199906-200708

sub90999-00153¥980

main90999-00132iCM7#,8#,KM7#,8#¥2,070199906-200708

sub90999-00174¥2,070

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-27030iCM7#,8#,KM7#,8#..DX¥8,900199906-200208

main69510-27040iKM70,80..SPX¥10,700199906-200208

main69510-27050iCM7#,8#,KM7#,8#¥9,000200208-200708

main69510-27061iKM8#..TS..CBU;KM7#..SJL..TS..3SO..CBU¥11,400200208-200708

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-95400iCM7#,8#,KM7#,8#¥250199906-200408

69511ARETAINER, SIDE TARPAULIN LOCK CYLINDER

main69511-95400iCM80,KM70..GUT¥250199906-200208

69513APAD, DOOR CYLINDER

main69513-27010iCM7#,8#,KM7#,8#¥300199906-200408

69520CYLINDER ASSY, FRONT DOOR LOCK, LH

main69520-27030iCM7#,8#,KM7#,8#¥9,000199906-200208

main69520-27030iKM8#..TS..CBU;KM7#..SJL..TS..3SO..CBU¥9,000200208-200708

main69520-27040iCM7#,8#,KM7#,8#¥9,000200208-200708

69530BCYLINDER ASSY, TOP COVER LOCK

main69530-27030iKM70..GUT;KM70..TS..1SO;CM80,KM80..T1¥9,000199906-200708

69551RETAINER, BACK DOOR LOCK CYLINDER

main69511-95400iKM70..GUT;KM70..TS..1SO;CM80,KM80..T1¥250199906-200208

69560CYLINDER ASSY, BACK DOOR LOCK

main69540-27030iKM70,80..TS..1SO¥9,000199906-200708

main69540-27040iCM80,KM70..GUT¥8,900199906-200208

69563PAD, BACK DOOR LOCK CYLINDER

main69513-32010iKM70..GUT;KM70..TS..1SO;CM80,KM80..T1¥120199906-200208

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-27050iCM7#,8#,KM7#,8#¥12,000199906-200708

69685PAD, LOCK CYLINDER

main69513-27010iKM70,80..TS..1SO¥300199906-200208

main69513-32010iCM80,KM70..GUT¥120199906-200208

13 parts on this diagram · 2 diagrams in section
