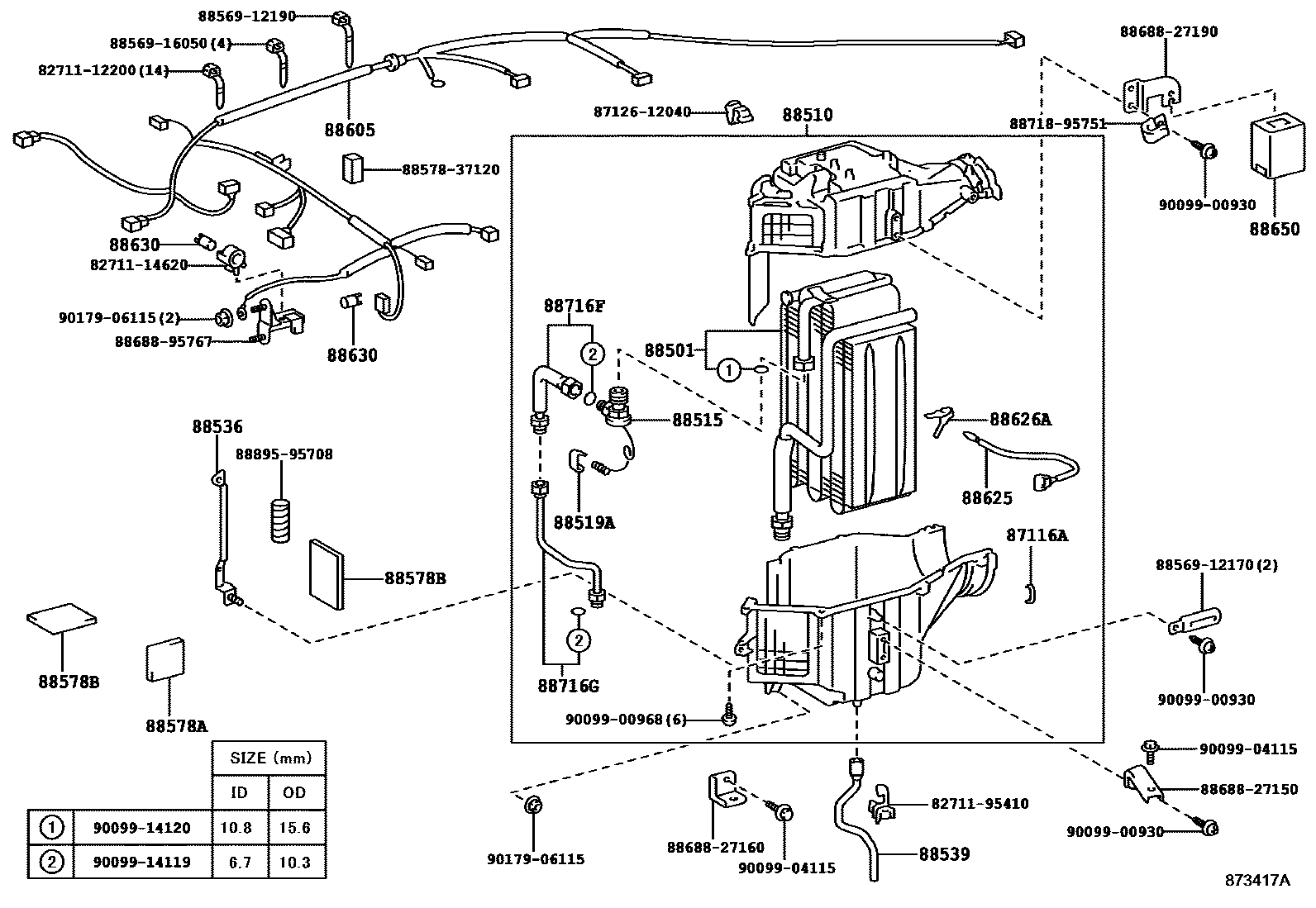

Toyota LITE/TOWNACE — HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010iCM7#,8#,KM7#,8#199906-200408

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-27010iCM7#,8#,KM7#,8#199906-200208

main88501-27020iCM7#,8#,KM7#,8#200208-200708

88510UNIT ASSY, COOLER

main88510-27030iCM7#,8#,KM7#,8#199906-200208

main88510-27040iKM7#,8#200208-200708

main88510-27050iCM7#,8#200208-200408

main88510-27070iKM7#,85..IV3200301-200708

88515VALVE, COOLER EXPANSION

main88515-27020iKM80;KM7#,85..CBU,IV6¥10,300200208-200406

sub88515-28160¥10,200

main88515-27020iCM7#,85,KM7#,85..IV3¥10,300200208-200708

sub88515-28160¥10,200

main88515-28090iCM7#,8#,KM7#,8#¥4,310199906-200208

main88515-28160iCM7#,8#,KM7#,8#¥10,200200406-200708

88519AHOLDER, REMOTE BULB, PARTS

main88519-87301iCM7#,8#,KM7#,8#199906-200208

88536BRACKET, COOLING UNIT, NO.1

main88688-95747iCM7#,8#,KM7#,8#199906-200708

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-27020iCM7#,8#,KM7#,8#199906-200208

main88539-27030iCM7#,8#200208-200408

88578APACKING, COOLER STABILIZER AMPLIFIER

main88578-95703iCM7#,8#,KM7#,8#199906-200208

88578BPACKING, COOLING UNIT, NO.1

main88592-87002iCM7#,8#,KM7#,8#199906-200208

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-27190iCM7#199906-200208

main88605-27200iKM7#,8#199906-200208

main88605-27210iCM75..5H..IV3199906-200208

main88605-27220iCM85..5H..IV3199906-200208

main88605-27230iCM7#,85..5H..IV3199906-200208

main88605-27260iKM7#,8#200208-200708

main88605-27270iCM7#,8#200208-200408

main88605-27280iCM7#,85..IV3200208-200408

main88605-27290iKM7#,85..IV3200301-200708

88625THERMISTOR, COOLER, NO.1

main88625-12070iCM7#,8#,KM7#,8#199906-200208

main88625-16210iCM7#,85..IV3;KM85..4HC..IV3200208-200708

main88625-27010iCM7#,8#,KM7#,8#200208-200708

88626AHOLDER, THERMISTOR

main88626-40050iCM7#,8#,KM7#,8#199906-200208

88630RELAY ASSY, COOLER

main88630-26040iCM7#,8#,KM7#,8#200208-200708

main90987-02004iCM7#,8#,KM7#,8#¥2,330199906-200208

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-27020iKM7#,8#200208-200708

main88650-27030iKM7#..IV3;KM85..5H..IV3200208-200708

main88650-37070iCM7#,8#199906-200208

main88650-43030iKM7#,8#199906-200208

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-27130iCM7#,8#,KM7#,8#¥2,420199906-200208

main88716-27170iKM7#,85..IV3¥2,880200208-200708

88716GPIPE, COOLER REFRIGERANT LIQUID, G

main88716-27120iCM7#,8#,KM7#,8#¥2,140199906-200208

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200¥120

8271114620WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14620¥390

8271195410WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-95410¥200

8712612040CLAMP, HEATER CONTROL

main87126-12040¥310

8856912170CLAMP (FOR COOLER RELAY)

main88569-12170

8856912190CLAMP (FOR COOLER RELAY)

main88569-12190

8856916050CLAMP (FOR COOLER RELAY)

main88569-16050

8857837120PAKING, COOLER AIR DUCT

main88578-37120

8868827150BRACKET, COOLER DIAPHRAGM

main88688-27150

8868827160BRACKET, COOLER DIAPHRAGM

main88688-27160

8868827190BRACKET, COOLER DIAPHRAGM

main88688-27190

8868895767BRACKET, COOLER DIAPHRAGM

main88688-95767

8871895751PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95751

8889595708HOLDER, FUSE

main88895-95708

9009900930

main90099-00930

9009900968

main90099-00968

9009904115

main90099-04115

9009914119

main90099-14119

9009914120

main90099-14120¥0

9017906115

main90179-06115¥120

36 parts on this diagram · 2 diagrams in section
