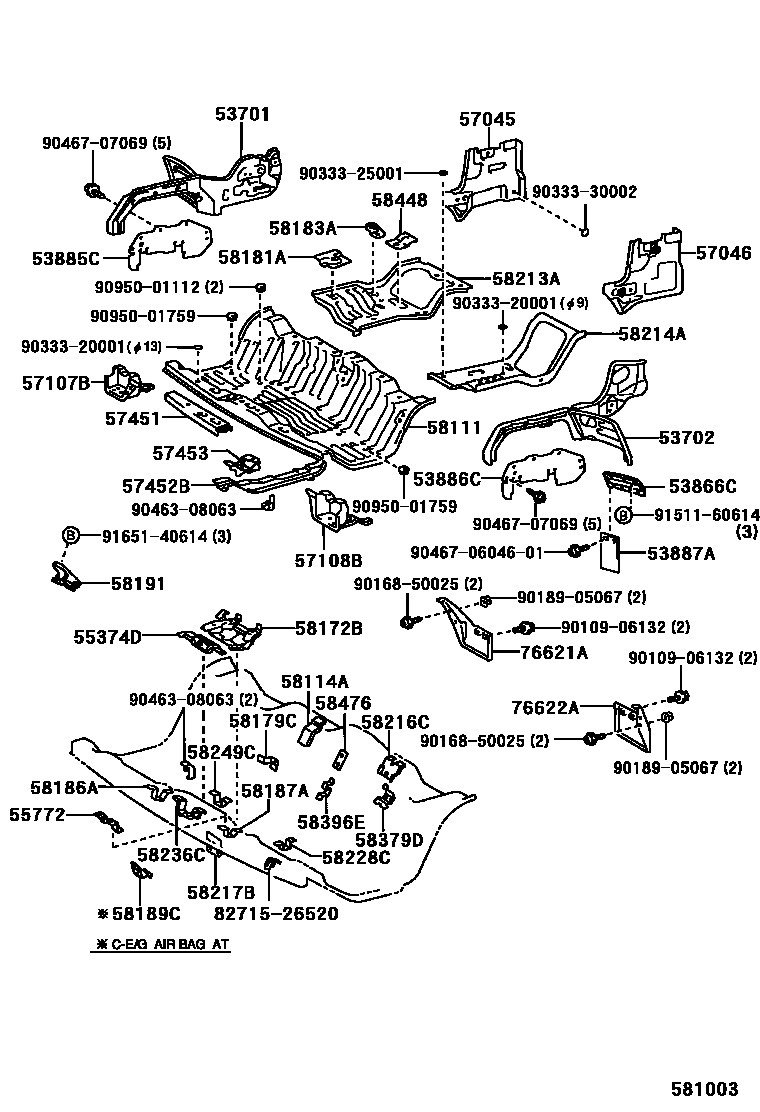

Toyota LITE/TOWNACE — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1 0004 1

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-27020iCM7#,8#,KM7#,8#¥10,500199906-200208

sub53701-27040¥10,500

main53701-27030iCM7#,8#¥13,000200208-200408

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-27030iCM7#,8#¥10,500199906-200208

sub53702-27070¥10,500

main53702-27040iKM7#,8#¥10,500199906-200208

sub53702-27080¥10,500

main53702-27050iCM7#,8#¥12,800200208-200408

main53702-27060iKM7#,8#¥13,000200208

53866CPLATE, FRONT FENDER EXTENSION, LH

main53866-27010iCM7#,8#,KM7#,8#¥1,520200208

main53866-95701iCM7#,8#,KM7#,8#¥1,540199906-200208

53885CSEAL, FENDER APRON MUDGUARD, RH

main53885-27010iCM7#,8#¥1,710200208-200408

main53885-95704iCM7#,8#,KM7#,8#¥1,590199906-200208

53886CSEAL, FENDER APRON MUDGUARD, LH

main53885-27010iCM7#,8#¥1,710200208-200408

main53885-95704iCM7#,8#,KM7#,8#¥1,590199906-200208

53887ASEAL, FRONT FENDER SPLASH SHIELD, NO.1

main53887-95701iCM7#,8#,KM7#,8#¥680199906-200408

55374DBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-27020iCM7#,8#¥1,290199906-200408

55772RETAINER, PEDAL BRACKET, LOWER

main55772-27010iCM8#,KM8#¥820199906-200408

57045PLATE SUB-ASSY, FLOOR SIDE RAIL, RH

main57045-27010iCM7#,8#,KM7#,8#¥7,600199906-200205

main57045-27011iCM7#,8#,KM7#,8#¥7,600200205-200208

main57045-27030iCM7#,8#¥8,200200208-200408

57046PLATE SUB-ASSY, FLOOR SIDE RAIL, LH

main57046-27020iCM7#,8#,KM7#,8#¥7,600199906-200205

main57046-27021iCM7#,8#,KM7#,8#¥7,600200205-200208

main57046-27040iCM7#,8#,KM7#,8#¥9,100200208-200301

main57046-27041iCM7#,8#¥9,000200301-200408

57107BBRACKET SUB-ASSY, CAB FRONT MOUNTING, RH

main57107-27080iCM7#,8#,KM7#,8#¥2,970199906-200205

sub57107-27100¥2,970

main57107-27090iCM7#,8#¥2,970200208-200408

57108BBRACKET SUB-ASSY, CAB FRONT MOUNTING, LH

main57108-27090iCM7#,8#,KM7#,8#¥3,260199906-200205

sub57108-27110¥3,260

main57108-27100iCM7#,8#¥2,970200208-200408

57451MEMBER, FRONT FLOOR CROSS

main57451-27010iCM7#,8#,KM7#,8#¥2,350199906-200208

main57451-27020iCM7#,8#¥25,500200208-200408

57452BMEMBER, FRONT FLOOR CROSS, NO.2

main57452-27010iCM7#,8#,KM7#,8#¥1,840199906-200208

57453MEMBER, FRONT FLOOR CROSS, NO.3

main57453-27020iCM7#,8#,KM7#,8#¥650199906-200208

58111PAN, FRONT FLOOR

main58111-27020iKM7#,8#¥32,400199906-200208

sub58111-27140¥32,200

sub57107-27120¥2,970

sub57108-27140¥3,260

sub57408-27030¥2,340

sub57451-27030¥2,350

sub58187-27030¥740

sub58227-27010¥350

sub58236-27020¥760

sub58396-27010¥450

main58111-27030iCM7#,8#¥32,400199906-200208

sub58111-27150¥32,200

sub57107-27120¥2,970

sub57108-27140¥3,260

sub57408-27030¥2,340

sub57451-27030¥2,350

sub58187-27030¥740

sub58189-27020¥500

sub58227-27010¥350

sub58236-27020¥760

sub58396-27010¥450

main58111-27140iKM7#,8#¥32,200200208-200502

sub58111-27150¥32,200

main58111-27141iKM7#,8#¥32,500200502

main58111-27150iCM7#,8#¥32,200200208-200408

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-95705iKM7#,8#¥910199906-200408

58172BBRACKET, COMPUTER MOUNTING, NO.3

main58172-27010iCM7#,8#,KM7#,8#¥1,690199906-200408

58179CBRACKET, CLAMP FLOOR

main58179-27010iKM7#,8#..5H¥500199906-200208

58181ARETAINER, SEAT RAIL, FRONT

main58181-95701iCM7#,8#,KM7#,8#¥1,040199906-200408

58183ARETAINER, SEAT RAIL, REAR RH

main58183-27010iCM7#,8#,KM7#,8#¥700199906-200408

58186ABRACKET, BRAKE TUBE SET

main58186-27010iCM7#,8#,KM7#,8#¥390199906-200208

58187ABRACKET, VACUUM TUBE CLAMP

main58187-27010iCM7#,8#,KM7#,8#¥500199906-200208

58189CBRACKET, VACUUM TANK MOUNTING

main58189-27010iCM7#,8#¥350199906-200208

58191FOOTREST, FRONT FLOOR

main58191-27010iCM7#,8#,KM7#,8#¥3,230199906-200408

58213APANEL, SEAT FLOOR, RH

main58213-27010iCM7#,8#,KM7#,8#¥8,900199906-200208

main58213-27040iCM7#,8#¥8,800200208-200408

58214APANEL, SEAT FLOOR, LH

main58214-27020iCM7#,8#,KM7#,8#¥8,800199906-200408

58216CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH

main58216-27010iCM7#,8#,KM7#,8#¥980199906-200408

58217BPLATE, FRONT FLOOR

main58217-27020iCM7#,8#,KM7#,8#¥550199906-200208

main58217-27030iKM7#,8#¥510200208-200408

58228CBRACKET, BRAKE TUBE CONNECTOR, NO.1

main58307-95701iCM7#,8#,KM7#,8#¥1,350199906-200408

58236CBRACKET, CLUTCH TUBE

main58236-27010iCM7#,8#,KM7#,8#¥550199906-200208

58249CBRACKET, CABLE CLAMP, NO.2

main58249-27010iCM7#,8#,KM7#,8#..5H¥370199906-200408

58379DBRACKET, HEATER HOSE CLAMP

main58379-95701iCM7#,8#,KM7#,8#¥820199906-200408

58396EBRACKET, WIRE HARNESS CLAMP

main58396-27010iCM7#,8#¥450200208-200408

main58396-95701iCM7#,8#,KM7#,8#¥660199906-200208

sub58396-27010¥450

58448HINGE, ENGINE SERVICE HOLE COVER FEMALE

main58448-95704iCM7#,8#,KM7#,8#¥370199906-200408

58476RETAINER, ENGINE SERVICE HOLE COVER CATCH

main58476-95700iCM7#,8#,KM7#,8#¥450199906-200408

76621AMUDGUARD, FRONT BODY, FRONT RH

main76621-95704iCM7#,8#,KM7#,8#¥3,460199906-200408

76622AMUDGUARD, FRONT BODY, FRONT LH

main76622-95704iCM7#,8#,KM7#,8#¥3,460199906-200408

9010906132

main90109-06132¥160

9016850025

main90168-50025¥120

9018905067

main90189-05067¥130

9033320001

main90333-20001¥70

9033325001

main90333-25001¥140

9033330002

main90333-30002¥70

9046308063

main90463-08063¥230

904670604601

main90467-0604601

9046707069

main90467-07069¥120

9095001112

main90950-01112¥190

9095001759

main90950-01759¥120

9151160614

main91511-60614¥110

9165140614

main91651-40614¥160

51 parts on this diagram · 4 diagrams in section
