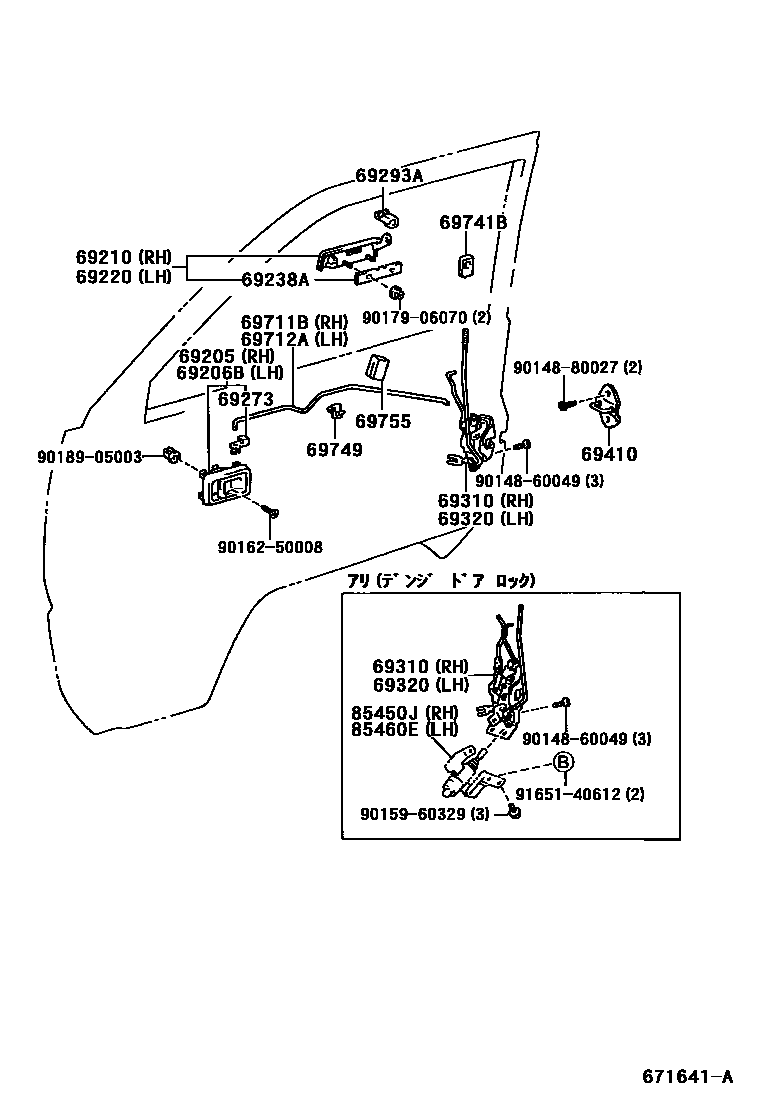

Toyota LITE/TOWNACE — FRONT DOOR LOCK & HANDLE

0001 1 0002 1

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-95703-B3iCM7#,8#,KM7#,8#199906-200708

DK.CHARCOAL,TRIM1#

sub69205-95703¥1,870

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-95703-B3iCM7#,8#,KM7#,8#199906-200708

DK.CHARCOAL,TRIM1#

sub69206-95703¥1,870

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-95702iCM7#,8#,KM7#,8#¥2,900199906-200408

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-95702iCM7#,8#,KM7#,8#¥2,900199906-200408

69238APAD, DOOR OUTSIDE HANDLE

main69238-95J00iKM7#,8#¥300199906-200408

69273SNAP, DOOR INSIDE HANDLE ROD

main69759-14050iCM7#,8#,KM7#,8#¥180199906-200408

main69759-24070iCM7#,8#,KM7#,8#¥180199906-200408

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iCM7#,8#,KM7#,8#¥160199906-200408

main69293-12040iCM7#,8#,KM7#,8#¥160199906-200408

69310LOCK ASSY, FRONT DOOR, RH

main69310-27020iCM7#,8#,KM7#,8#..DX¥7,800199906-200208

main69310-27030iKM70,80..SPX¥8,800199906-200208

main69310-27040iCM7#,8#..CBU,IV3¥8,800200208-200408

main69310-27050iCM7#,8#¥10,300200208-200408

main69310-27060iKM8#..TS..5H..CBU;KM7#..SJL..TS..3SO..CBU¥9,800200208

69320LOCK ASSY, FRONT DOOR, LH

main69320-27010iCM7#,8#,KM7#,8#..DX¥7,800199906-200208

main69320-27020iKM70,80..SPX¥7,800199906-200208

main69320-27030iCM7#,8#¥8,800200208-200408

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-27010iCM7#,8#,KM7#,8#¥1,090199906-200208

main69410-27020iCM7#,8#¥1,680200208-200408

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-27010iKM7#,8#¥680200208-200408

main69711-95700iCM7#,8#,KM7#,8#¥740199906-200208

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-27010iCM7#,8#¥680200208-200408

main69712-95700iCM7#,8#,KM7#,8#¥740199906-200208

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-90K00-B7iCM7#,8#,KM7#,8#199906-200708

DK.CHARCOAL,TRIM1#

sub69741-90K00¥360

sub69741-89102¥340

sub69741-12040¥390

sub69741-89104¥410

69749CLAMP, FRONT DOOR LOCK LINK

main69749-30020iCM7#,8#¥280199906-200408

69755SILENCER, FRONT DOOR LOCK LINK

main69759-95500iCM7#,8#,KM7#,8#¥300199906-200408

85450JSOLENOID ASSY, DOOR CONTROL, FRONT RH

main85450-95705iKM70,80..SPX¥19,000199906-200208

85460ESOLENOID ASSY, DOOR CONTROL, FRONT LH

main85460-95701iKM70,80..SPX¥18,900199906-200208

9014860049

main90148-60049¥110

9014880027

main90148-80027¥450

9015960329

main90159-60329¥120

9016250008

main90162-50008¥70

9017906070

main90179-06070¥180

9018905003

main90189-05003¥130

9165140612

main91651-40612¥70

24 parts on this diagram · 2 diagrams in section
