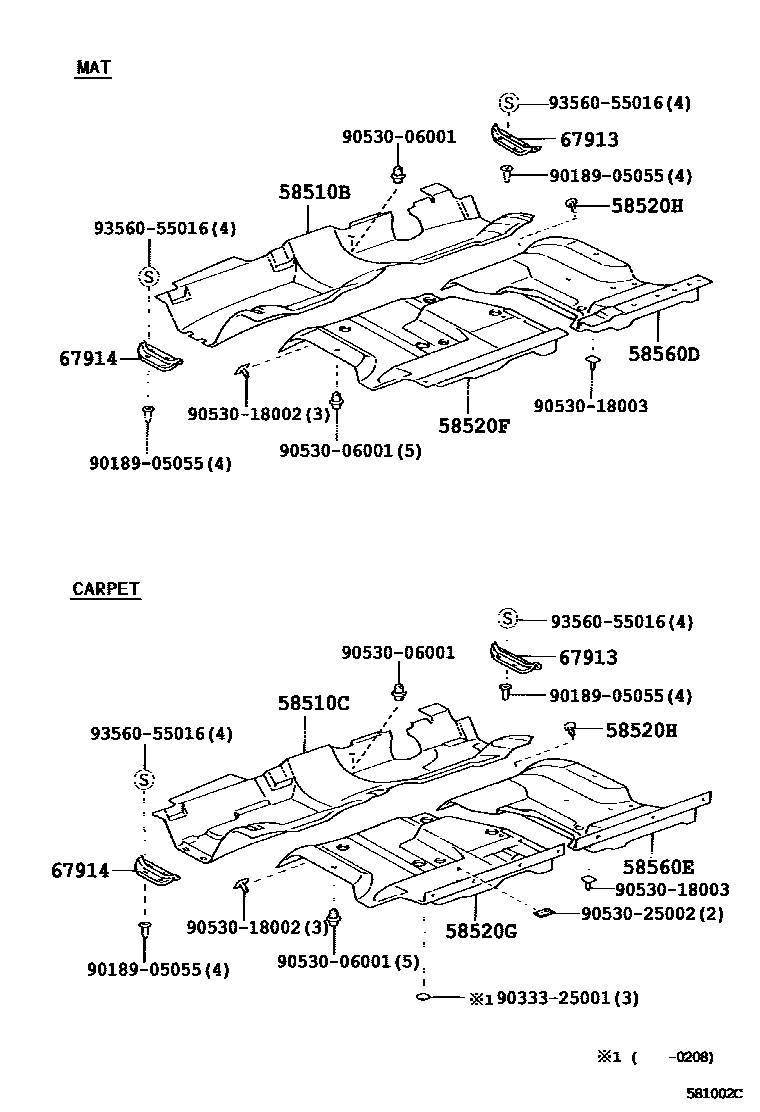

Toyota LITE/TOWNACE — FLOOR MAT & SILENCER PAD

58510BMAT, FRONT FLOOR, FRONT

main58510-27070-B0iCM7#,8#,KM7#,8#..DX199906-200208

DARK CHARCOAL,TRIM1#

main58510-27100-B0iCM7#,8#,KM7#,8#200208-200708

DARK CHARCOAL,TRIM1#

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-27080-B0iCM85..TS;CM7#,80,KM7#,8#199906-200208

DARK CHARCOAL,TRIM1#

main58510-27110-B0iCM75,85..IV6;KM75,8#..TS..(CBU,IV6);KM70..SJL..TS..3SO..CBU200208-200708

DARK CHARCOAL,TRIM1#

58520FMAT ASSY, ENGINE COVER

main58520-27100-B0iKM7#,8#..DX199906-200208

DARK CHARCOAL,TRIM1#

main58520-27100-B0iKM70..SJL..3SO;KM75,8#..CBU,IV3200208-200708

DARK CHARCOAL,TRIM1#

main58520-27110-B0iCM7#..SJL;CM85..CBU,IV3200208-200408

DARK CHARCOAL,TRIM1#

main58520-27110-B0iCM7#,8#199906-200208

DARK CHARCOAL,TRIM1#

main58520-27150-B0iCM70,8#..JL;CM75..IV3,IV6200208-200401

��(��������-��-� (1+1 ����)),DARK CHARCOAL,TRIM1#

main58520-27150-B0iCM85199906-200108

��(��������-��-� (1+1 ����)),DARK CHARCOAL,TRIM1#

main58520-27150-B0iCM85;CM75..4HC..IV3200108-200208

��(��������-��-� (1+1 ����)),DARK CHARCOAL,TRIM1#

main58520-27170-B0iKM85..IV3;KM75..4HC..IV3200108-200208

��(��������-��-� (1+1 ����)),DARK CHARCOAL,TRIM1#

main58520-27170-B0iKM70..JL;KM70..1SO;KM75,85..IV6200208-200708

DARK CHARCOAL,TRIM1#

58520GCARPET ASSY, ENGINE COVER

main58520-27120-B0iKM7#,8#..DX199906-200208

DARK CHARCOAL,TRIM1#

main58520-27130-B0iCM7#,80;CM85..TS199906-200208

DARK CHARCOAL,TRIM1#

main58520-27140-B1iKM70,80..SPX199906-200208

DARK CHARCOAL,TRIM1#

main58520-27180-B0iCM75,85..IV6200208-200408

DARK CHARCOAL,TRIM1#

main58520-27190-B0iKM75,8#..TS..(CBU,IV6);KM70..SJL..TS..3SO..CBU200208-200708

DARK CHARCOAL,TRIM1#

58520HCLIP(FOR ENGINE COVER MAT)

main90467-08056-B1iCM7#,8#199906-200208

DK.CHARCOAL,TRIM1#

sub90467-08056¥140

main90467-08056-B1iCM70,80..JL200208-200401

DK.CHARCOAL,TRIM1#

sub90467-08056¥140

main90467-08056-B1iCM75,85;CM70..SJL200208-200408

DK.CHARCOAL,TRIM1#

sub90467-08056¥140

58560DMAT ASSY, SEAT FLOOR

main58560-27040-B0iKM7#,8#..DX199906-200208

DARK CHARCOAL,TRIM1#

main58560-27040-B0iKM7#,8#200208-200708

DARK CHARCOAL,TRIM1#

main58560-27050-B0iCM7#..SJL;CM85..CBU,IV3200208-200408

DARK CHARCOAL,TRIM1#

main58560-27050-B0iCM7#,8#199906-200208

DARK CHARCOAL,TRIM1#

main58560-27110-B0iCM70,8#..JL;CM75..IV3,IV6200208-200401

��(��������-��-� (1+1 ����)),DARK CHARCOAL,TRIM1#

58560ECARPET ASSY, SEAT FLOOR

main58560-27060-B0iKM7#,8#..DX199906-200208

DARK CHARCOAL,TRIM1#

main58560-27070-B0iCM7#,80;CM85..TS199906-200208

DARK CHARCOAL,TRIM1#

main58560-27080-B1iKM70,80..SPX199906-200208

DARK CHARCOAL,TRIM1#

main58560-27090-B0iCM75,85..IV6200208-200408

DARK CHARCOAL,TRIM1#

main58560-27100-B0iKM75,8#..TS..(CBU,IV6);KM70..SJL..TS..3SO..CBU200208-200708

DARK CHARCOAL,TRIM1#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-27010-B0iCM7#,8#,KM7#,8#200205-200208

DK.CHARCOAL,TRIM1#

sub67913-27010¥3,890

main67913-27010-B0iCM7#,8#,KM7#,8#200208-200708

DK.CHARCOAL,TRIM1#

sub67913-27010¥3,890

main67913-95702-B1iCM7#,8#,KM7#,8#199906-200205

DK.CHARCOAL,TRIM1#

sub67913-27010¥3,890

67914PLATE, FRONT DOOR SCUFF, LH

main67914-27010-B0iCM7#,8#,KM7#,8#200205-200208

DK.CHARCOAL,TRIM1#

sub67914-27010¥3,890

main67914-27010-B0iCM7#,8#,KM7#,8#200208-200708

DK.CHARCOAL,TRIM1#

sub67914-27010¥3,890

main67914-95702-B1iCM7#,8#,KM7#,8#199906-200205

DK.CHARCOAL,TRIM1#

sub67914-27010¥3,890

9018905055

main90189-05055¥80

9033325001

main90333-25001¥140

9053006001

main90530-06001¥110

9053018002

main90530-18002¥160

9053018003

main90530-18003¥130

9053025002

main90530-25002¥250

9356055016

main93560-55016¥70

16 parts on this diagram · 1 diagram in section
