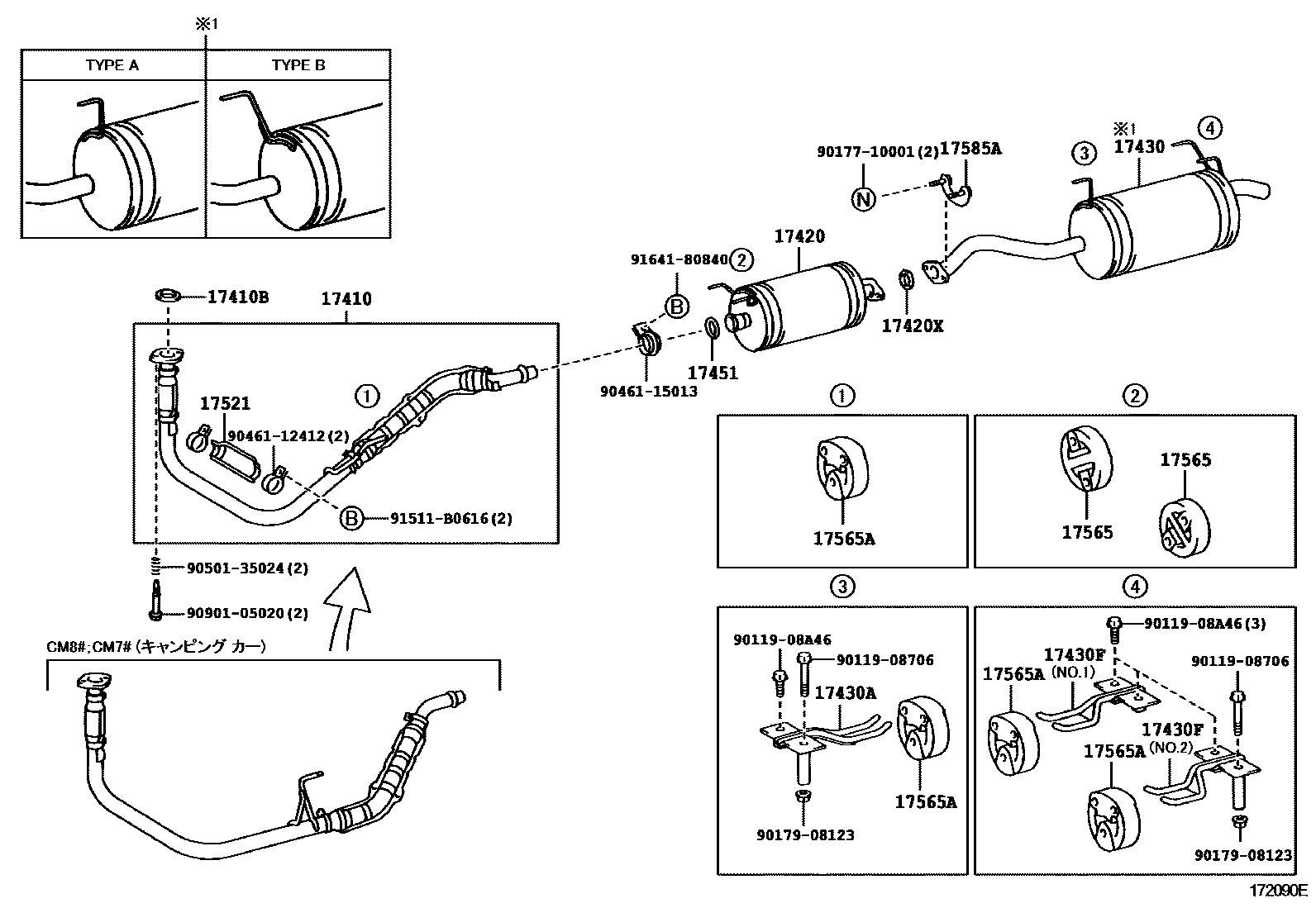

Toyota LITE/TOWNACE — EXHAUST PIPE

0001 1 0002 1 0003 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-13660i7KE..KM7#,8#¥12,600199906-200208

main17410-13680i7KE..KM70¥132,000200208

main17410-13690i7KE..KM75¥133,000200208

main17410-13700i7KE..KM80¥129,000200208-200502

main17410-13710i7KE..KM85¥129,000200208-200502

main17410-13740i7KE..KM80¥118,000200502

main17410-13750i7KE..KM75,85..JL¥140,000200502

main17410-6A020i3CE..CM7#¥26,300199906-200208

main17410-6A030i3CE..CM8#¥26,300199906-200208

main17410-6A050i3CE..CM7#¥26,300200208-200408

main17410-6A060i3CE..CM8#¥26,300200208-200408

17410BGASKET, EXHAUST PIPE

main90917-06069i7KE..KM7#,8#¥360199906-200208

main90917-06080i3CE..CM7#,8#¥2,060199906-200408

17420PIPE ASSY, EXHAUST, CENTER

main17420-13040i7KE..KM70¥106,000199906-200208

main17420-13050i7KE..KM75¥106,000199906-200208

main17420-13060i7KE..KM80¥104,000199906-200208

main17420-13070i7KE..KM85¥104,000199906-200208

main17420-64360i3CE..CM70,80¥24,200199906-200408

main17420-64370i3CE..CM75,85¥25,000199906-200408

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06044i3CE,7KE..CM7#,8#,KM7#,8#¥630199906-200408

17430PIPE ASSY, EXHAUST, TAIL

main17430-13570i7KE..KM7#,8#¥37,800199906-200208

main17430-13580i7KE..KM70,80..JL..IV3¥37,800199906-200208

main17430-13590i7KE..KM85..4HC¥37,900200208

sub17430-13591¥37,900

main17430-13620i7KE..KM70,80..JL..5H..IV3¥37,900200208-200408

sub17430-13621¥37,900

main17430-6A370i3CE..CM7#,8#¥28,400200208-200408

main17430-6A440i3CE..CM7#,8#¥28,300199906-200208

sub17430-6A370¥28,400

main17430-6A450i3CE..CM70,80..JL..5H..IV3¥28,300199906-200208

sub17430-6A480¥28,400

main17430-6A480i3CE..CM70,80..JL..5H..IV3¥28,400200208-200408

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17574-72031i3CE,7KE..CM7#,8#,KM7#,8#¥1,290199906-200408

17430FBRACKET, EXHAUST TAILPIPE(FOR CENTER)

main17573-64040i3CE..CM7#,8#¥1,410199906-200408

main17575-64020i3CE,7KE..CM7#,8#,KM7#,8#¥1,290199906-200408

main17575-95700i3CE,7KE..CM70,80,KM70,80..JL..5H..IV3¥2,170199906-200408

17451GASKET, EXHAUST PIPE

main17451-64030i7KE..KM7#,8#¥1,450199906-200708

sub17451-64031¥1,430

main90917-06082i3CE..CM7#,8#¥580199906-200408

17521PROTECTOR, EXHAUST PIPE, FRONT NO.1

main17521-64020i3CE..CM7#,8#¥1,220199906-200408

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-46010i3CE,7KE..CM7#,8#,KM7#,8#¥1,290199906-200408

17565ASUPPORT, EXHAUST PIPE, NO.4

main17566-35030i3CE,7KE..CM7#,8#,KM7#,8#¥1,330199906-200208

main17566-35030i3CE,7KE..CM70,80,KM70,80..JL..5H..IV3¥1,330200208-200408

17585ABRACKET, EXHAUST PIPE NO.2 SUPPORT

main17585-64060i3CE,7KE..CM7#,8#,KM7#,8#¥1,470199906-200408

9011908706

main90119-08706¥240

9011908A46

main90119-08A46¥80

9017710001

main90177-10001¥180

9017908123

main90179-08123¥160

9046112412

main90461-12412¥460

9046115013

main90461-15013¥2,100

9050135024

main90501-35024¥890

9090105020

main90901-05020¥230

91511B0616

main91511-B0616¥110

9164180840

main91641-80840¥100

22 parts on this diagram · 3 diagrams in section
