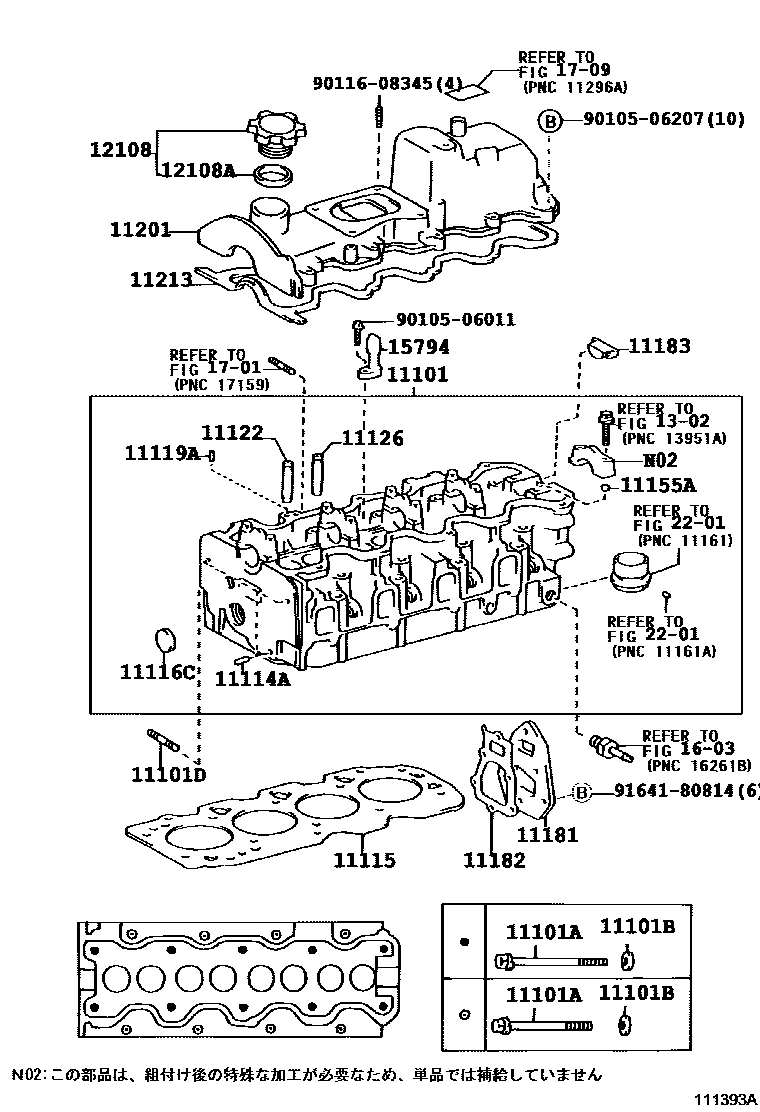

Toyota LITE/TOWNACE — CYLINDER HEAD

0001 1 0002 1

11101HEAD SUB-ASSY, CYLINDER

main11101-06040i7KE..KM7#,8#¥88,000199906-200208

main11101-64371i3CE..CM7#,8#¥129,000199906-200408

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02121i7KE..KM7#,8#¥360199906-200208

main90910-02130i3CE..CM7#,8#¥510199906-200408

main90910-02131i3CE..CM7#,8#¥410199906-200408

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-10344i7KE..KM7#,8#¥110199906-200208

main90201-12222i3CE..CM7#,8#¥220199906-200408

11101DBOLT, STUD(FOR WATER OUTLET)

main92122-60820i3CE..CM7#,8#¥190199906-200408

11114APIN, STRAIGHT

main90250-06068i3CE..CM7#,8#¥260199906-200408

11115GASKET, CYLINDER HEAD

main11115-06020i7KE..KM7#,8#¥5,800199906-200208

main11115-13060i7KE..KM7#,8#¥6,400199906-200208

main11115-64190-01i3CE..CM7#,8#200208-200408

MARK 1

main11115-64190-01i3CE..CM7#,8#199906-200208

main11115-64190-03i3CE..CM7#,8#200208-200408

MARK 3

main11115-64190-03i3CE..CM7#,8#199906-200208

main11115-64190-05i3CE..CM7#,8#200208-200408

MARK 5

main11115-64190-05i3CE..CM7#,8#199906-200208

11116CPLUG, TIGHT, NO.3

main96411-63000i3CE..CM7#,8#¥210199906-200408

11119APIN, STRAIGHT, NO.1

main90250-06013i3CE..CM7#,8#¥80199906-200408

main90250-06068i3CE..CM7#,8#¥260199906-200408

main90250-08120i7KE..KM7#,8#¥140199906-200208

11122BUSH, INTAKE VALVE GUIDE

main11122-24020i7KE..KM7#,8#¥1,030199906-200708

main11122-64010i3CE..CM7#,8#¥900199906-200408

main11123-24020i7KE..KM7#,8#¥940199906-200708

main11123-64010i3CE..CM7#,8#¥900199906-200408

11126BUSH, EXHAUST VALVE GUIDE

main11122-24020i7KE..KM7#,8#¥1,030199906-200708

main11123-24020i7KE..KM7#,8#¥940199906-200708

main11126-64030i3CE..CM7#,8#¥770199906-200408

main11127-64030i3CE..CM7#,8#¥770199906-200408

11155APIN, RING W/HEAD

main90253-11021i3CE..CM7#,8#¥120199906-200408

11181PLATE, CYLINDER HEAD, REAR

main11181-13050i7KE..KM7#,8#¥2,240199906-200208

main11181-64011i3CE..CM7#,8#¥1,070199906-200408

11182GASKET, CYLINDER HEAD REAR PLATE

main11182-06010i7KE..KM7#,8#¥440199906-200208

main11182-64021i3CE..CM7#,8#¥740199906-200408

11183PLUG, SEMICIRCULAR

main11183-64010i3CE..CM7#,8#¥670199906-200408

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-06030i7KE..KM7#,8#¥11,700199906-200208

main11201-64190i3CE..CM7#,8#¥21,600199906-200408

11213GASKET, CYLINDER HEAD COVER

main11213-22010i7KE..KM7#,8#¥1,040199906-200208

main11213-64061i3CE..CM7#,8#¥1,460199906-200408

12108CAP SUB-ASSY, OIL FILLER

main12180-55010i7KE..KM7#,8#¥630199906-200408

12108AGASKET(FOR OIL FILLER CAP)

main90430-37140i3CE..CM7#,8#¥210199906-200408

1302

15794NOZZLE, CYLINDER HEAD OIL

main15794-64011i3CE..CM7#,8#¥780199906-200408

1603

1701

1709

2201

9010506011

main90105-06011¥60

9010506207

main90105-06207¥120

9011608345

main90116-08345¥170

9164180814

main91641-80814¥110

28 parts on this diagram · 2 diagrams in section
