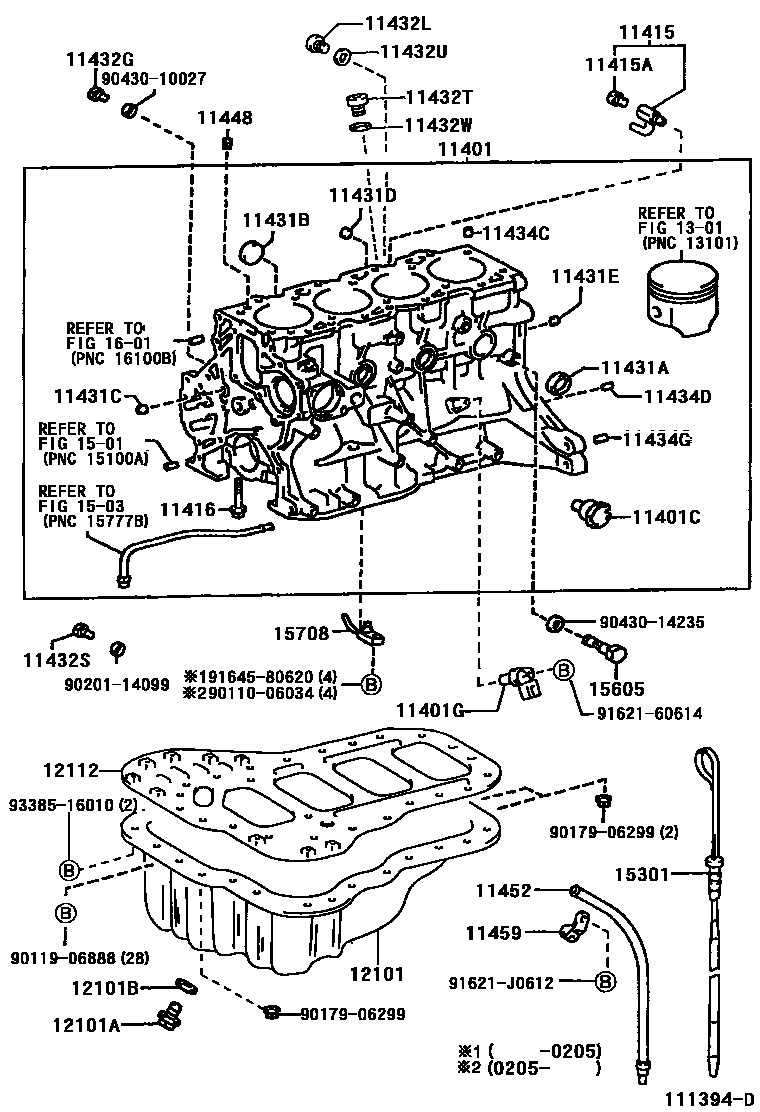

Toyota LITE/TOWNACE — CYLINDER BLOCK

0001 1 0002 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-09160i7KE..KM7#,8#¥118,000199906-200208

main11401-69855i3CE..CM7#,8#¥265,000199906-199908

sub11401-69856¥265,000

main11401-69856i3CE..CM7#,8#¥265,000199908-200408

11401CFLANGE(FOR WATER BY-PASS)

main16353-64011i3CE..CM7#,8#¥670199906-200408

11401GSENSOR, CRANK POSITION

main90919-05031i3CE..CM7#,8#¥6,200199906-200408

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09075i3CE..CM7#,8#¥700199906-200408

sub90910-09129¥370

main90910-09107i7KE..KM7#,8#¥610199906-200208

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i7KE..KM7#,8#¥230199906-200408

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02019i7KE..KM7#,8#¥240199906-200208

main90910-02135i3CE..CM7#,8#¥390199906-200408

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main90331-47025i7KE..KM7#,8#¥230199906-200208

main96411-63500i3CE..CM7#,8#¥230199906-200408

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-63000i3CE..CM7#,8#¥210199906-200408

main96411-64500i7KE..KM7#,8#¥280199906-200208

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main96411-41800i3CE..CM7#,8#¥110199906-200408

main96411-63500i7KE..KM7#,8#¥230199906-200208

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

main96411-41800i3CE..CM7#,8#¥110199906-200408

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

main96411-41800i3CE..CM7#,8#¥110199906-200408

main96412-01800i7KE..KM7#,8#¥130199906-200208

11432GPLUG, W/HEAD STRAIGHT SCREW, NO.5

main90341-10002i3CE..CM7#,8#¥220199906-200408

11432LPLUG, W/HEAD STRAIGHT SCREW, NO.4(FOR CYLINDER BLOCK)

main90341-18006i3CE..CM7#,8#¥180200208-200408

11432SPLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR CYLINDER BLOCK)

main90341-14032i3CE..CM7#,8#¥210199906-200408

11432TPLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR CYLINDER BLOCK)

main90341-22001i3CE..CM7#,8#¥580200208-200408

11432UGASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK)

main90430-18001i3CE..CM7#,8#¥170200208-200408

11432WGASKET, STRAIGHT SCREW PLUG NO.3(FOR CYLINDER BLOCK)

main90430-22003i3CE..CM7#,8#¥260200208-200408

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120i7KE..KM7#,8#¥140199906-200208

main90253-14004i3CE..CM7#,8#¥700199906-200408

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06068i3CE..CM7#,8#¥260199906-200408

main90250-08120i7KE..KM7#,8#¥140199906-200208

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10113i3CE..CM7#,8#¥120199906-200408

11448ORIFICE, CYLINDER BLOCK OIL

main11448-64020i3CE..CM7#,8#¥220199906-200408

11452GUIDE, OIL LEVEL GAGE

main11452-13050i7KE..KM7#,8#¥1,260199906-200208

main11452-64060i3CE..CM7#,8#¥1,800199906-200408

11459SUPPORT, OIL LEVEL GAGE GUIDE

main11459-64010i3CE..CM7#,8#¥220199906-200408

12101PAN SUB-ASSY, OIL

main12101-06020i7KE..KM7#,8#¥12,100199906-200006

sub12101-06021¥12,100

sub15104-13020¥5,100

sub15149-74020¥250

main12101-06021i7KE..KM7#,8#¥12,100200006-200208

main12101-64200i3CE..CM7#,8#¥19,700199906-200408

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i7KE..KM7#,8#¥160199906-200408

main90341-12026i3CE..CM7#,8#¥350199906-200208

sub90341-12012¥160

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i7KE..KM7#,8#¥90199906-200408

12112PAN, OIL NO.2

main12112-64051i3CE..CM7#,8#¥11,700199906-200408

1301

1501

1503

15301GAGE SUB-ASSY, OIL LEVEL

main15301-13040i7KE..KM7#,8#¥1,060199906-200208

main15301-64130i3CE..CM7#,8#¥1,200199906-200408

15605VALVE SUB-ASSY, OIL CHECK

main15703-27010i3CE..CM7#,8#¥1,870199906-200408

15708NOZZLE SUB-ASSY, OIL, NO.1

main15790-64021i3CE..CM7#,8#¥1,420199906-200205

sub15790-64030¥1,410

sub90110-06034¥110

main15790-64030i3CE..CM7#,8#¥1,410200205-200408

1601

9011006034

main90110-06034¥110

9011906888

main90119-06888¥110

9017906299

main90179-06299¥70

9020114099

main90201-14099¥230

9043010027

main90430-10027¥180

9043014235

main90430-14235¥230

9162160614

main91621-60614¥120

91621J0612

main91621-J0612¥70

9164580620

main91645-80620¥110

9338516010

main93385-16010¥110

44 parts on this diagram · 2 diagrams in section
