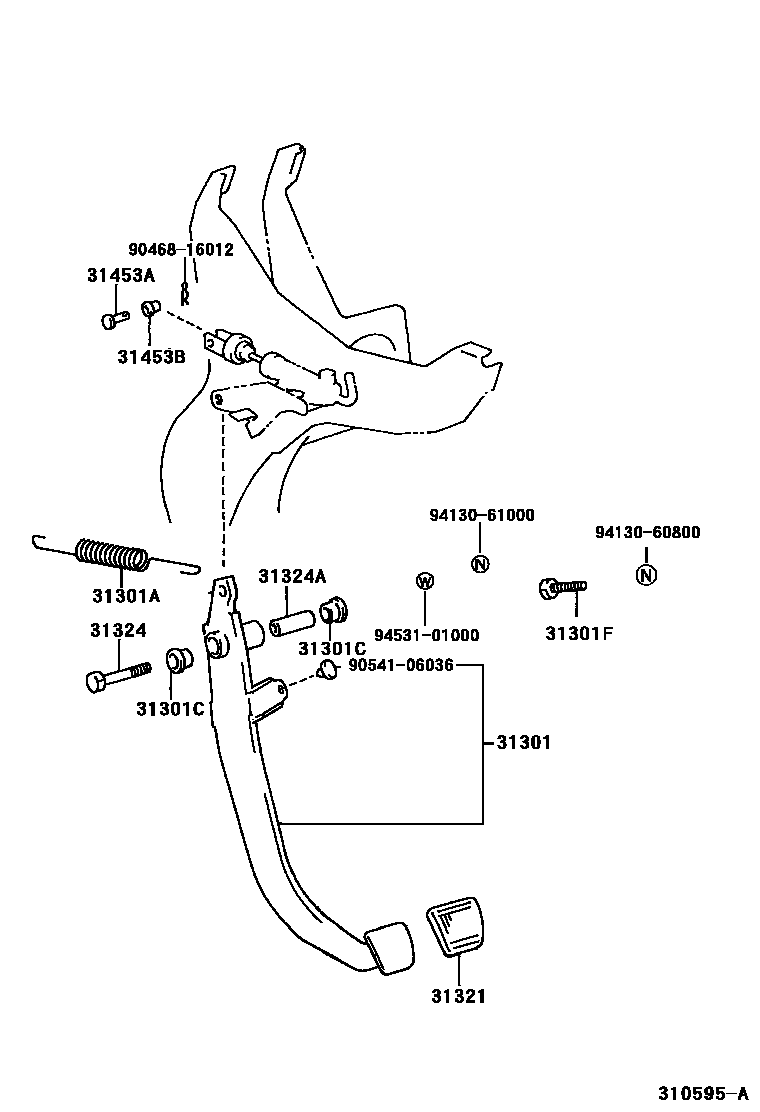

Toyota LITE/TOWNACE — CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

31301PEDAL SUB-ASSY, CLUTCH

main31310-27030iCM7#,8#,KM7#,8#..5H¥2,500199906-200208

main31310-27040iCM7#,8#,KM7#,8#..5H¥2,500200208

31301ASPRING(FOR CLUTCH PEDAL)

main90905-06057iCM7#,8#,KM7#,8#..5H¥310199906-200208

main90905-06057iCM7#,8#,KM7#,8#..5H¥310200208

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007iCM7#,8#,KM7#,8#..5H¥160199906-200208

main90386-13007iCM7#,8#,KM7#,8#..5H¥160200208

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-08052iCM7#,8#,KM7#,8#..5H¥160199906-200208

main90101-08052iCM7#,8#,KM7#,8#..5H¥160200208

31321PAD, CLUTCH PEDAL

main31321-14020iCM7#,8#,KM7#,8#..5H¥200199906-200208

main31321-14020iCM7#,8#,KM7#,8#..5H¥200200208

31324SHAFT, CLUTCH PEDAL

main91112-61060iCM7#,8#,KM7#,8#..5H¥230199906-200208

main91112-61060iCM7#,8#,KM7#,8#..5H¥230200208

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iCM7#,8#,KM7#,8#..5H¥370199906-200208

main90387-10003iCM7#,8#,KM7#,8#..5H¥370200208

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08018iCM7#,8#,KM7#,8#..5H¥260199906-200208

�������Q�X�D�T

main90249-08018iCM7#,8#,KM7#,8#..5H¥260200208

�������Q�X�D�T

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iCM7#,8#,KM7#,8#..5H¥240199906-200208

main90386-08002iCM7#,8#,KM7#,8#..5H¥240200208

9046816012

main90468-16012¥280

9054106036

main90541-06036¥110

9413060800

main94130-60800¥60

9413061000

main94130-61000¥70

9453101000

main94531-01000¥90

14 parts on this diagram · 6 diagrams in section
