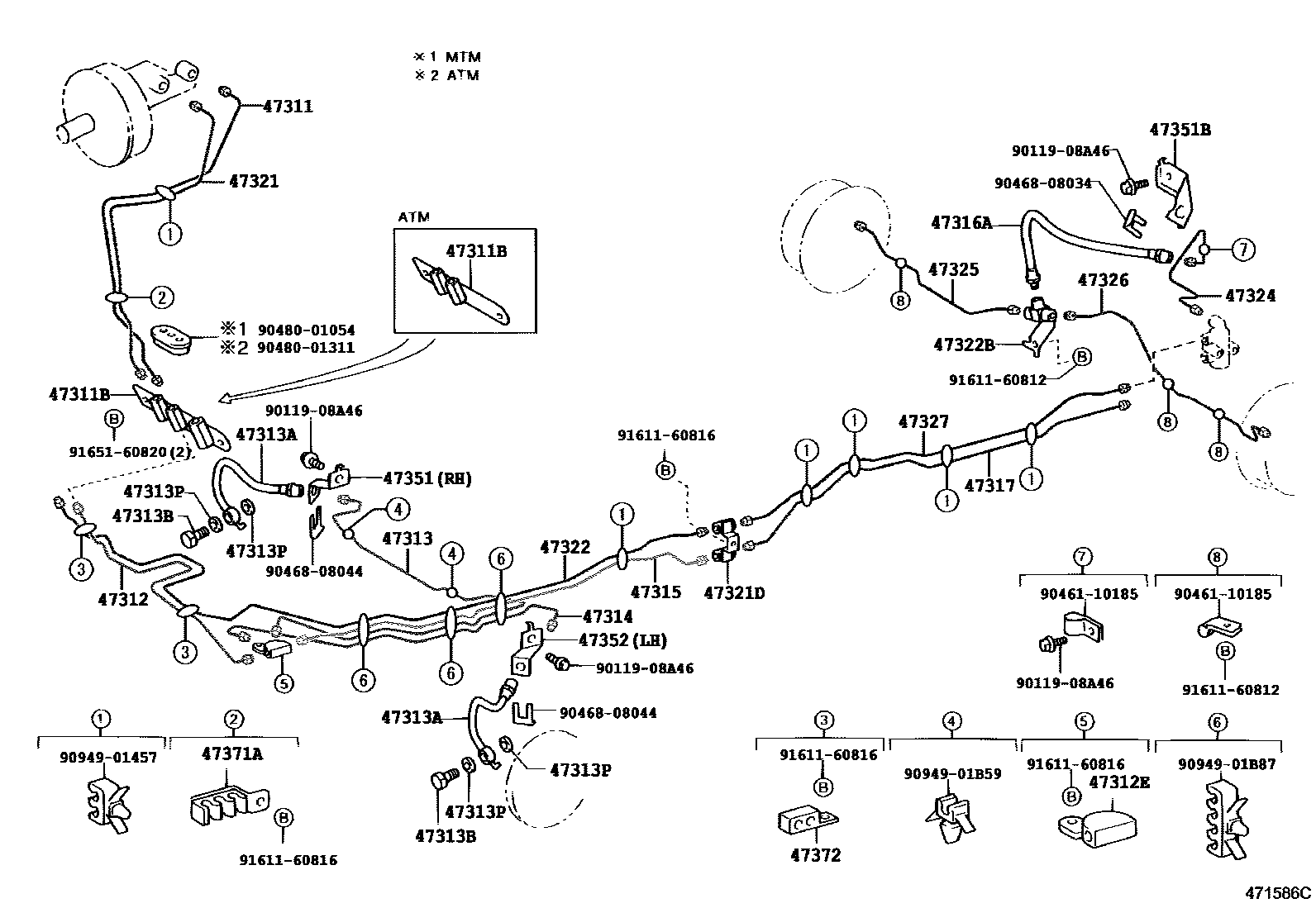

Toyota LITE/TOWNACE — BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1��(ABS) 0004 1��(ABS) 0005 1��(ABS) 0006 1 0007 1 0008 1��(ABS) 0009 1��(ABS) 0010 1��(ABS) 0011 1 0012 1

47311TUBE, FRONT BRAKE, NO.1

main47311-27270iCM7#,8#,KM7#,8#¥940199906-200208

main47311-27280iCM7#,8#¥940200208-200408

main47311-27280iKM7#,8#¥940200208

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10100iCM7#,85,KM7#..4HC¥1,140199906-200208

main90412-10105iCM7#,8#,KM7#,8#..5H¥1,300199906-200208

47312TUBE, FRONT BRAKE, NO.2

main47312-27200iCM7#,8#,KM7#,8#¥1,090199906-200208

main47312-27210iCM7#,8#¥1,650200208-200408

main47312-27210iKM7#,8#¥1,650200208

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90413-10183iCM7#,8#¥1,170200208-200408

��(ABS)

main90413-10183iCM7#,8#,KM7#,8#¥1,170199906-200208

��(ABS)

main90413-10183iKM7#,80;KM85..5H¥1,170200208

��(ABS)

main90413-10183iKM85..4HC¥1,170200502

��(ABS)

main90414-10014iKM7#,8#¥1,170200208

main90414-10014iCM7#,8#¥1,170200208-200408

main90414-10014iCM7#,8#,KM7#,8#¥1,170199906-200208

47313TUBE, FRONT BRAKE, NO.3

main47313-27150iCM7#,KM7#¥1,820199906-200208

main47313-27151iCM7#..CBU,IV3¥1,820200208-200408

main47313-27151iKM7#..CBU,IV3¥1,820200208

main47313-27160iCM7#,KM7#¥1,820199906-200208

��(ABS)

main47313-27170iKM75,8#..JL¥2,000200208

main47313-27170iCM8#,KM8#¥2,000199906-200208

main47313-27170iCM75,8#..JL¥2,000200208-200408

main47313-27180iCM8#,KM8#¥2,170199906-200208

��(ABS)

main47313-27190iKM7#..CBU,IV3¥1,820200208

��(ABS)

main47313-27190iCM7#..CBU,IV3¥1,820200208-200408

��(ABS)

main47313-27200iKM85..5H;KM75,80..JL¥2,170200208

��(ABS)

main47313-27200iKM85..4HC¥2,170200502

��(ABS)

main47313-27200iCM75,8#..JL¥2,170200208-200408

��(ABS)

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02A55iCM7#,KM7#¥1,490199906-200208

main90947-02A55iKM7#..CBU,IV3¥1,490200208

main90947-02A55iCM7#..CBU,IV3¥1,490200208-200408

main90947-02A56iCM8#,KM8#¥1,680199906-200208

main90947-02A56iCM75,8#..JL¥1,680200208-200408

main90947-02A56iKM75,8#..JL¥1,680200208

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iCM7#,8#,KM7#,8#¥200199906-200208

main90401-10015iCM7#,8#¥200200208-200408

main90401-10015iKM7#,8#¥200200208

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074iCM7#,8#¥100200208-200408

main90430-10074iCM7#,8#,KM7#,8#¥100199906-200208

main90430-10074iKM7#,8#¥100200208

47314TUBE, FRONT BRAKE, NO.4

main47314-27110iKM7#..CBU,IV3¥1,090200208

main47314-27110iCM7#..CBU,IV3¥1,090200208-200408

main47314-27110iCM7#,KM7#¥1,090199906-200208

main47314-27120iCM7#,KM7#¥1,090199906-200208

��(ABS)

main47314-27130iKM75,8#..JL¥1,320200208

main47314-27130iCM75,8#..JL¥1,320200208-200408

main47314-27130iCM8#,KM8#¥1,320199906-200208

main47314-27140iCM8#,KM8#¥1,320199906-200208

��(ABS)

main47314-27150iCM7#..CBU,IV3¥1,090200208-200408

��(ABS)

main47314-27150iKM7#..CBU,IV3¥1,090200208

��(ABS)

main47314-27160iKM85..4HC¥1,320200502

��(ABS)

main47314-27160iKM85..5H;KM75,80..JL¥1,320200208

��(ABS)

main47314-27160iCM75,8#..JL¥1,320200208-200408

��(ABS)

47315TUBE, FRONT BRAKE, NO.5

main47315-27050iCM7#,KM7#¥1,470199906-200208

main47315-27050iCM7#..CBU,IV3¥1,470200208-200408

main47315-27050iKM7#..CBU,IV3¥1,470200208

main47315-27060iCM7#,KM7#¥1,440199906-200208

��(ABS)

main47315-27070iCM75,8#..JL¥1,470200208-200408

main47315-27070iKM75,8#..JL¥1,470200208

main47315-27070iCM8#,KM8#¥1,470199906-200208

main47315-27080iKM85..4HC¥1,470200502

��(ABS)

main47315-27080iCM75,8#..JL¥1,470200208-200408

��(ABS)

main47315-27080iCM8#,KM8#¥1,470199906-200208

��(ABS)

main47315-27080iKM85..5H;KM75,80..JL¥1,470200208

��(ABS)

main47315-27090iCM7#..CBU,IV3¥1,470200208-200408

��(ABS)

main47315-27090iKM7#..CBU,IV3¥1,470200208

��(ABS)

47316TUBE, FRONT BRAKE, NO.6

main47316-27170iCM7#,8#,KM7#,8#¥550199906-200208

main47316-27180iCM7#,8#¥570200208-200408

main47316-27180iKM7#,8#¥570200208

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02A91iCM70,KM70..JL,T1¥1,600199906-200208

main90947-02B22iCM8#,KM8#;CM7#,KM7#..SJL,SJLC¥1,680199906-200208

main90947-02B22iCM70,KM70..SJL;CM75,8#,KM75,8#¥1,680200208

main90947-02B25iCM70,KM70..JL¥1,320200208

47317TUBE, FRONT BRAKE, NO.7

main47317-27040iCM70,80,KM70,80¥1,650199906-200208

main47317-27040iCM70,80¥1,650200208-200408

main47317-27040iKM70,80¥1,650200208

main47317-27050iCM75,85¥1,820200208-200408

main47317-27050iCM75,85,KM75,85¥1,820199906-200208

main47317-27050iKM75,85¥1,820200208

47321TUBE, REAR BRAKE, NO.1

main47321-27250iCM7#,8#,KM7#,8#¥940199906-200208

main47321-27260iCM7#,8#¥940200208-200408

main47321-27260iKM7#,8#¥940200208

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10166iCM7#,8#,KM7#,8#¥780199906-200208

main90412-10166iCM7#,8#¥780200208-200408

main90412-10166iKM7#,8#¥780200208

47322TUBE, REAR BRAKE, NO.2

main47322-27260iCM7#,KM7#¥2,170199906-200208

main47322-27270iCM7#,8#,KM7#,8#¥1,320199906-200208

��(ABS)

main47322-27280iCM8#,KM8#¥2,370199906-200208

main47322-27290iCM7#..CBU,IV3¥2,550200208-200408

main47322-27290iKM7#..CBU,IV3¥2,550200208

main47322-27300iCM7#,8#¥1,470200208-200408

��(ABS)

main47322-27300iKM85..4HC¥1,470200502

��(ABS)

main47322-27300iKM7#,80;KM85..5H¥1,470200208

��(ABS)

main47322-27310iKM75,8#..JL¥2,550200208

main47322-27310iCM75,8#..JL¥2,550200208-200408

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10206iCM7#,8#¥1,170200208-200408

main90413-10206iKM7#,8#¥1,170200208

main90413-10206iCM7#,8#,KM7#,8#¥1,170199906-200208

47324TUBE, REAR BRAKE, NO.4

main47324-27230iCM8#,KM8#¥570199906-200208

main47324-27230iKM75,8#..JL¥570200208

main47324-27230iCM75,8#..JL¥570200208-200408

main47324-27240iCM7#..CBU,IV3¥570200208-200408

main47324-27240iCM7#,KM7#¥570199906-200208

main47324-27240iKM7#..CBU,IV3¥570200208

47325TUBE, REAR BRAKE, NO.5

main47325-27180iCM75..IV3¥940199906-200208

����������� OR ������ OR (����������� & ������)

main47325-27200iCM7#,KM7#¥750199906-200208

main47325-27200iCM7#..CBU,IV3¥750200208-200408

main47325-27200iKM7#..CBU,IV3¥750200208

main47325-27210iCM8#,KM8#¥940199906-200208

main47325-27210iCM75,8#..JL¥940200208-200408

main47325-27210iKM75,8#..JL¥940200208

main47325-27220iCM85..IV3¥750199906-200208

����������� OR ������ OR (����������� & ������)

47326TUBE, REAR BRAKE, NO.6

main47326-27160iCM75..IV3¥1,090199906-200208

����������� OR ������ OR (����������� & ������)

main47326-27190iKM7#..CBU,IV3¥1,090200208

main47326-27190iCM7#,KM7#¥1,090199906-200208

main47326-27190iCM7#..CBU,IV3¥1,090200208-200408

main47326-27200iKM75,8#..JL¥1,090200208

main47326-27200iCM75,8#..JL¥1,090200208-200408

main47326-27200iCM8#,KM8#¥1,090199906-200208

main47326-27210iCM85..IV3¥2,170199906-200208

����������� OR ������ OR (����������� & ������)

47327TUBE, REAR BRAKE, NO.7

main47327-27070iCM70,80,KM70,80¥1,650199906-200208

main47327-27070iCM70,80¥1,650200208-200408

main47327-27070iKM70,80¥1,650200208

main47327-27080iCM75,85,KM75,85¥1,820199906-200208

main47327-27080iCM75,85¥1,820200208-200408

main47327-27080iKM75,85¥1,820200208

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-27080iKM7#..CBU,IV3¥770200208

main47351-27080iCM7#,KM7#¥770199906-200208

main47351-27080iCM7#..CBU,IV3¥770200208-200408

main47351-28131iCM75,8#..JL¥2,570200208-200408

main47351-28131iKM75,8#..JL¥2,570200208

main47351-28131iCM8#,KM8#¥2,570199906-200208

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47355-27080iKM70..JL¥680200208

main47355-27080iCM70,KM70..JL,T1¥680199906-200208

main47355-27080iCM70..JL¥680200208-200408

main47355-27090iCM75,8#;CM70..SJL¥680200208-200408

main47355-27090iCM8#,KM8#;CM7#,KM7#..SJL,SJLC¥680199906-200208

main47355-27090iKM75,8#;KM70..SJL¥680200208

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-27110iCM7#,KM7#¥770199906-200208

main47352-27110iKM7#..CBU,IV3¥770200208

main47352-27110iCM7#..CBU,IV3¥770200208-200408

main47352-28121iKM75,8#..JL¥2,570200208

main47352-28121iCM8#,KM8#¥2,570199906-200208

main47352-28121iCM75,8#..JL¥2,570200208-200408

47371ACLAMP, BRAKE TUBE, NO.1

main47373-35040iCM7#,8#¥580200208-200408

main47373-35040iKM7#,8#¥580200208

main47373-35040iCM7#,8#,KM7#,8#¥580199906-200208

47372CLAMP, BRAKE TUBE, NO.2

main47372-25010iKM7#,8#¥460200208

main47372-25010iCM7#,8#,KM7#,8#¥460199906-200208

main47372-25010iCM7#,8#¥460200208-200408

9011908A46

main90119-08A46¥80

9046110185

main90461-10185¥390

9046808034

main90468-08034¥160

9046808044

main90468-08044¥180

9048001054

main90480-01054¥210

9048001311

main90480-01311¥290

9094901457

main90949-01457¥230

9094901B59

main90949-01B59¥110

9094901B87

main90949-01B87¥280

9161160812

main91611-60812¥140

9161160816

main91611-60816¥230

9165160820

main91651-60820¥130

38 parts on this diagram · 12 diagrams in section
