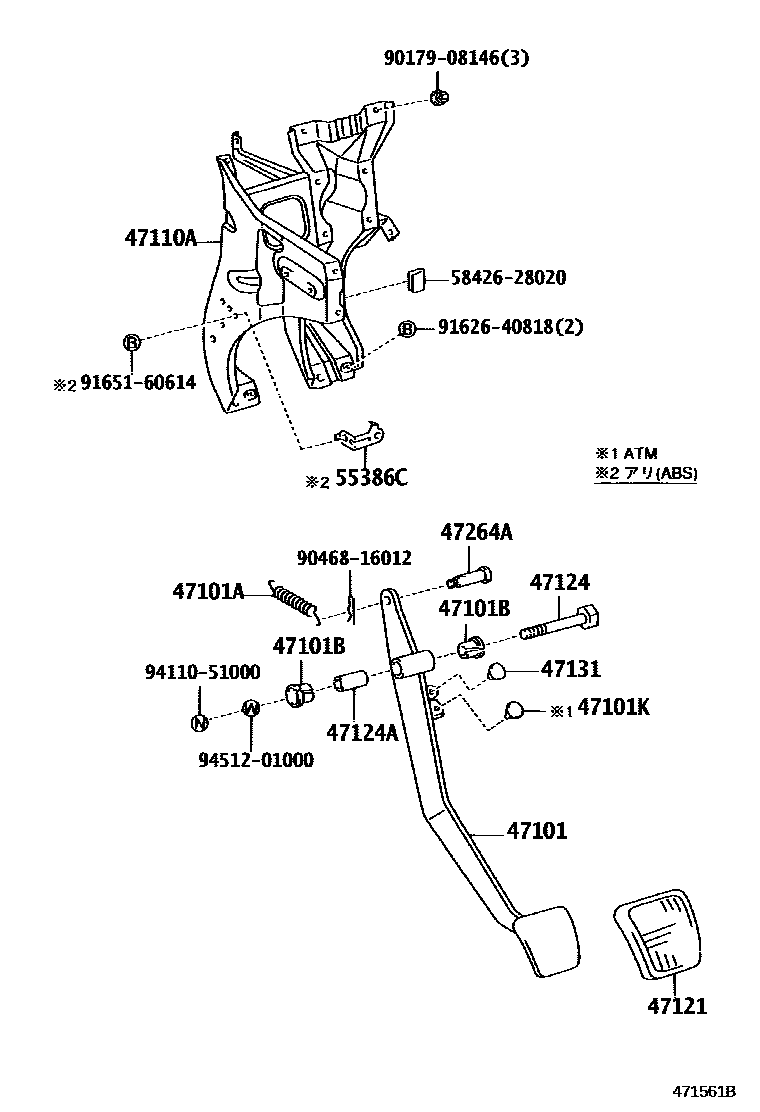

Toyota LITE/TOWNACE — BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-27150iCM7#,8#,KM7#,8#..5H¥2,170199906-200408

main47101-27160iCM7#,85,KM7#..4HC¥2,170199906-200408

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90905-06058iCM7#,8#,KM7#,8#¥320199906-200408

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iCM7#,8#,KM7#,8#¥160199906-200408

47101KCUSHION(FOR PARKING LOCK CABLE)

main90541-06049iCM7#,85,KM7#..4HC¥110199906-200408

47110ABRACKET ASSY, PEDAL

main55150-27020iCM7#,8#,KM7#,8#¥14,000199906-200208

sub55150-27030¥13,600

main55150-27030iCM7#,8#¥13,600200208-200408

47121PAD, BRAKE PEDAL

main31321-14020iCM7#,8#¥200199906-200408

47124SHAFT, BRAKE PEDAL

main90101-10164iCM7#,8#,KM7#,8#¥220199906-200408

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iCM7#,8#,KM7#,8#¥210199906-200408

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iCM7#,8#,KM7#,8#..5H¥110199906-200408

47264APIN(FOR PUSH ROD)

main90249-08256iCM7#,8#,KM7#,8#¥130199906-200108

main90249-08260iCM7#,8#,KM7#,8#¥220200108-200408

55386CBRACKET, COMPUTER MOUNTING

main55386-27010iCM7#,8#,KM7#,8#¥350199906-200208

5842628020NUT, BATTERY SERVICE HOLE COVER

main58426-28020¥260

9017908146

main90179-08146¥180

9046816012

main90468-16012¥280

9162640818

main91626-40818¥130

9165160614

main91651-60614¥70

9411051000

main94110-51000¥130

9451201000

main94512-01000¥90

18 parts on this diagram · 2 diagrams in section
