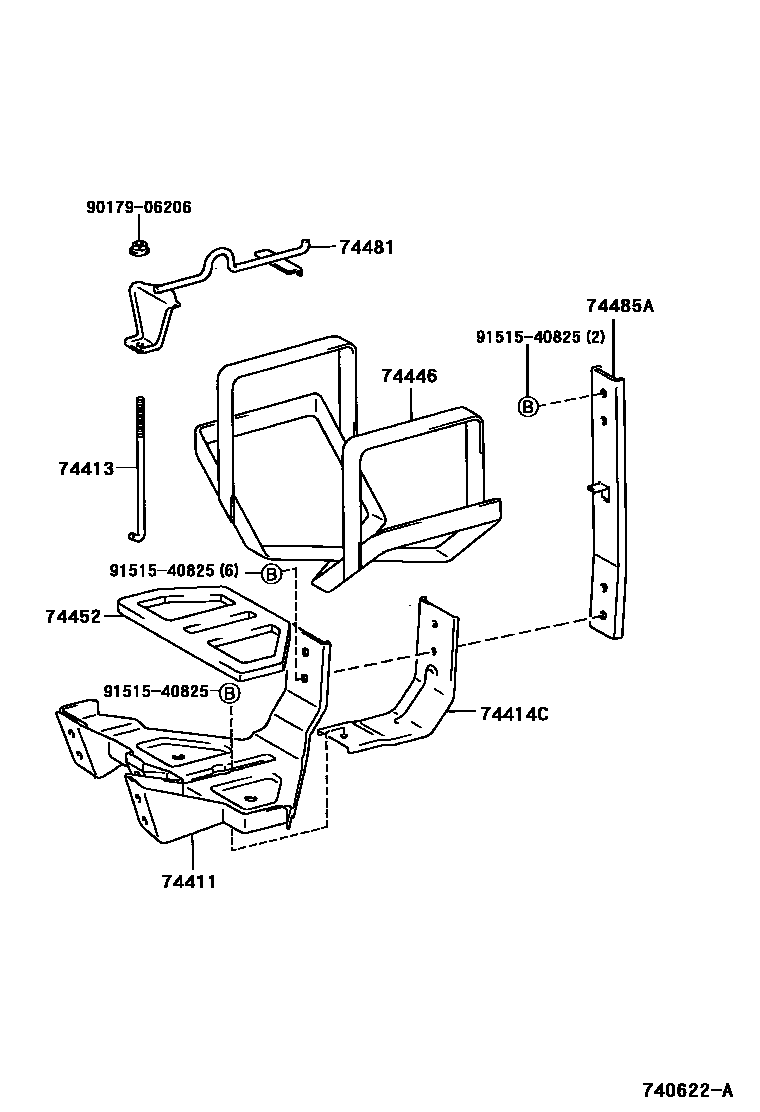

Toyota LITE/TOWNACE — BATTERY CARRIER

74411CARRIER, BATTERY

main74411-95714iCM7#,8#,KM7#,8#¥3,650199906-200708

74413BOLT, BATTERY CLAMP

main74451-95J00iCM7#,8#,KM7#,8#¥630199906-200708

74414CSUPPORT, BATTERY CLAMP

main74414-95703iCM7#,8#¥1,830199906-200408

74446BAND, BATTERY

main74446-95702iCM7#,8#¥840199906-200408

74452PLATE, BATTERY SET

main74452-95700iCM7#,8#¥1,090199906-200408

74481CLAMP, BATTERY HOLD DOWN

main74404-95706iKM7#,8#¥2,270199906-200708

main74404-95707iCM7#,8#¥2,260199906-200408

74485APLATE, BATTERY HOLD DOWN CLAMP, RH

main74485-95703iCM7#,8#,KM7#,8#¥2,230199906-200708

9017906206

main90179-06206¥70

9151540825

main91515-40825¥130

9 parts on this diagram · 1 diagram in section
