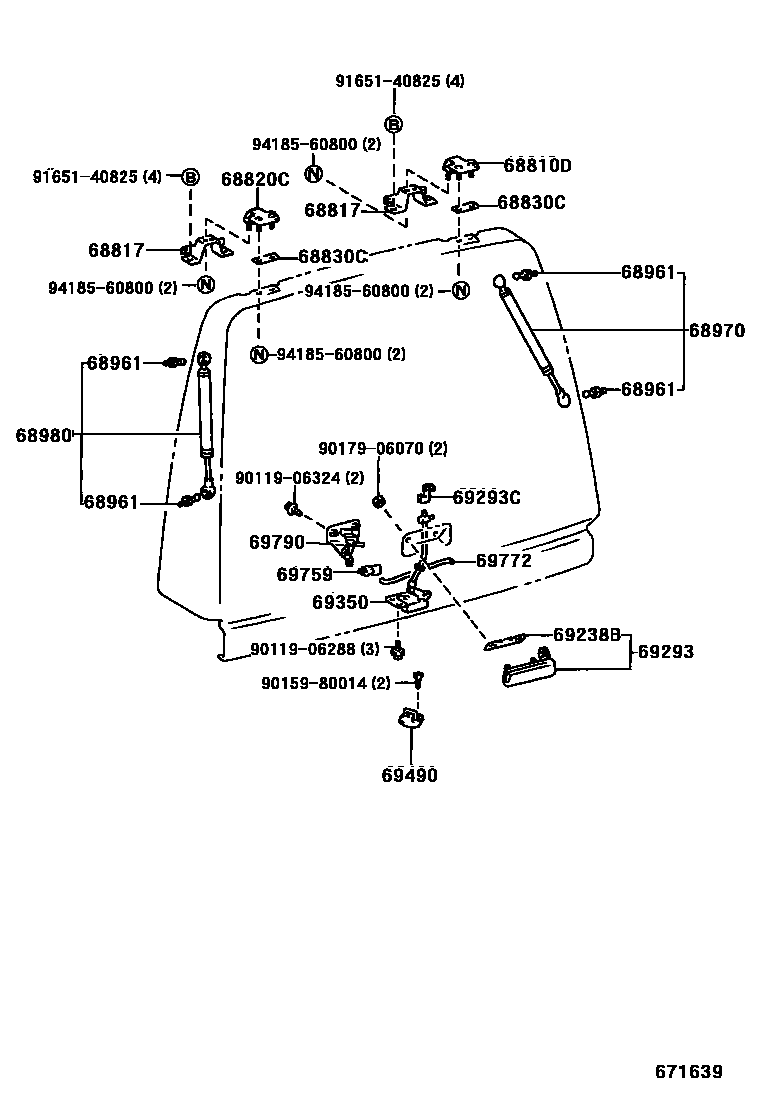

Toyota LITE/TOWNACE — BACK DOOR LOCK & HINGE

68810DHINGE ASSY, BACK DOOR, RH

main68810-95703iCM80,KM70..GUT¥2,470199906-200208

68817BRACKET, BACK DOOR HINGE BASE

main68817-95701iCM80,KM70..GUT¥1,820199906-200208

68820CHINGE ASSY, BACK DOOR, LH

main68820-95702iCM80,KM70..GUT¥2,470199906-200208

68830CRETAINER, BACK DOOR HINGE

main68719-95700iCM80,KM70..GUT¥260199906-200208

68961BOLT, BACK DOOR STAY

main68961-95702iCM80,KM70..GUT¥300199906-200208

68970STAY ASSY, BACK DOOR, RH

main68950-29605iCM80,KM70..GUT¥12,000199906-200208

main68950-29625iCM80,KM70..GUT¥12,000199906-200208

main68950-29635iCM80,KM70..GUT¥7,600199906-200208

68980STAY ASSY, BACK DOOR

main68950-29605iCM80,KM70..GUT¥12,000199906-200208

main68950-29625iCM80,KM70..GUT¥12,000199906-200208

main68950-29635iCM80,KM70..GUT¥7,600199906-200208

69238BPAD, BACK DOOR OUTSIDE HANDLE

main69238-95J00iCM80,KM70..GUT¥300199906-200208

69293HANDLE, BACK DOOR

main69220-95702iCM80,KM70..GUT¥2,900199906-200208

69293CSNAP, BACK DOOR HANDLE

main69293-12020iCM80,KM70..GUT¥260199906-200208

69350LOCK ASSY, BACK DOOR

main69350-95707iCM80,KM70..GUT¥7,500199906-200208

69490STRIKER ASSY, BACK DOOR LOCK

main69450-95J00iCM80,KM70..GUT¥1,480199906-200208

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-24090iCM80,KM70..GUT¥180199906-200208

69772ROD, BACK DOOR LOCK CONTROL

main69772-95700iCM80,KM70..GUT¥350199906-200208

69790CONTROL ASSY, BACK DOOR LOCK

main69790-95704iCM80,KM70..GUT¥2,680199906-200208

9011906288

main90119-06288¥120

9011906324

main90119-06324¥120

9015980014

main90159-80014¥120

9017906070

main90179-06070¥180

9165140825

main91651-40825¥200

9418560800

main94185-60800¥100

21 parts on this diagram · 1 diagram in section
