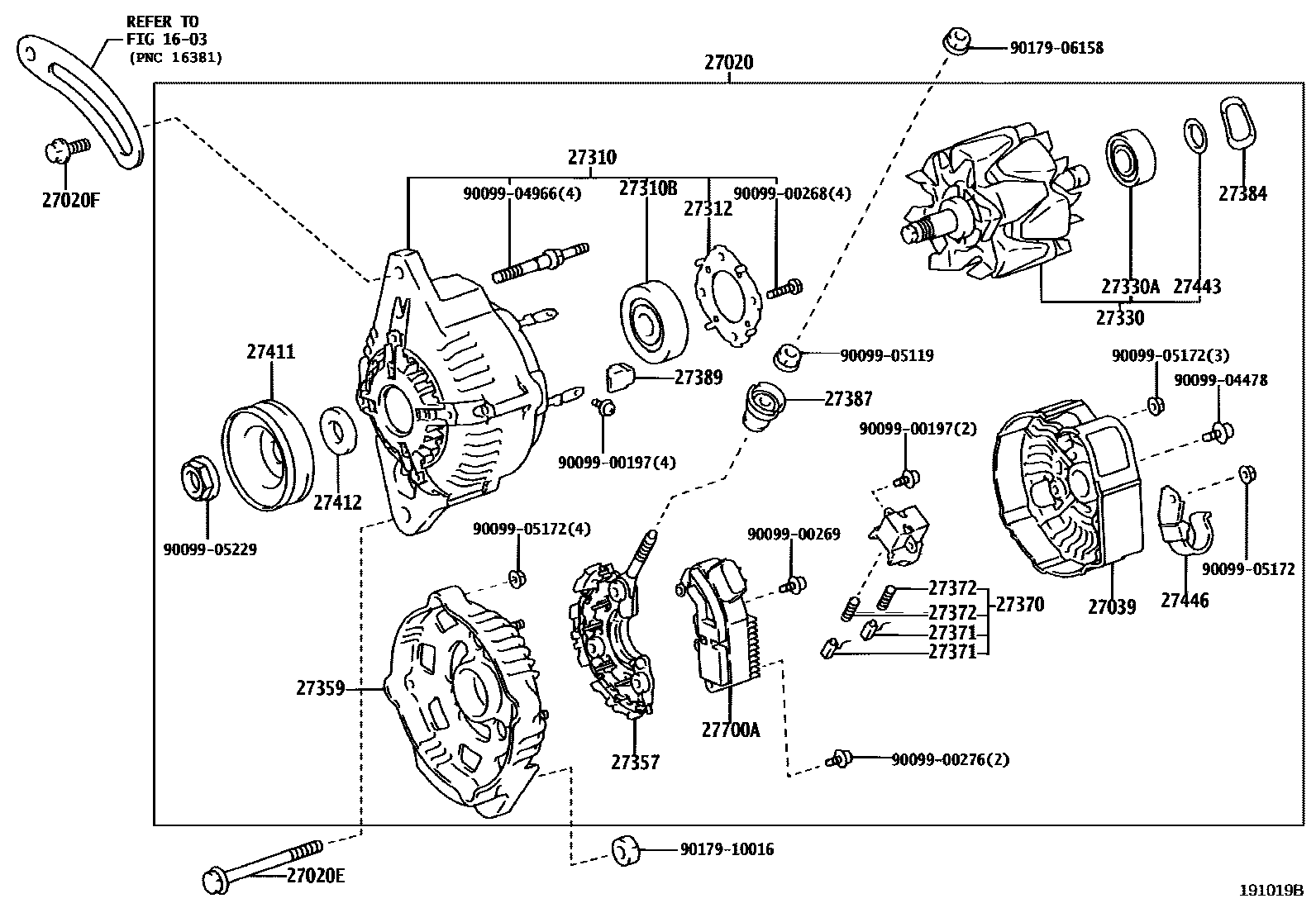

Toyota LITE/TOWNACE — ALTERNATOR

0001 112V 55A 0002 112V 70A,80A 0003 112V 55A 0004 112V 70A 0005 112V 55A 0006 112V 80A 0007 112V 55A 0008 112V 70A

1603

27020ALTERNATOR ASSY

main27060-13090i7KE..KM7#,85..4HC;7KE..KM7#,85..5H..(IV3,IV6)¥124,000199906-200208

sub27060-13130¥124,000

main27060-13100i7KE..KM7#,8#..5H¥107,000199906-200208

main27060-13110i7KE..KM7#..4HC¥116,000199906-200208

main27060-64300i3CE..CM7#,8#¥107,000199906-200408

main27060-64310i3CE..CM75,85..4HC..IV3;3CE..CM75,85..(JL,SJL)..TS..5H..CBU¥117,000199906-200408

main27060-64360i3CE..CM7#,85..IV3¥116,000199906-200110

sub27060-64440¥117,000

main27060-64440i3CE..CM7#,85..IV3¥117,000200110-200408

27020EBOLT(FOR ALTERNATOR)

main90105-10221i7KE..KM7#,8#¥430199906-200708

27020FBOLT, NO.1(FOR ALTERNATOR)

main90119-08654i7KE..KM7#,8#¥190199906-200708

27039COVER, ALTERNATOR REAR END

main27039-13400i7KE..KM7#,8#..5H200104-200208

24V 30A

main27039-16380i3CE..CM7#,8#199906-200208

12V 55A

main27039-22050i7KE..KM7#..4HC;7KE..KM7#,85..5H..IV3200104-200208

main27039-46190i7KE..KM7#..4HC;7KE..KM7#..5H..IV3199906-200104

12V 70A,80A

sub27039-22050

main27039-55080i3CE..CM7#,85..IV3;3CE..CM75,85..(JL,SJL)..TS..5H..CBU199906-200104

12V 70A

sub27039-70470

main27039-67271i7KE..KM7#,8#..5H199906-200104

12V 55A

main27039-70470i3CE..CM7#,85..IV3;3CE..CM75,85..(JL,SJL)..TS..5H..CBU200104-200208

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-13380i7KE..KM7#,8#..5H199906-200208

12V 55A

main27310-13390i7KE..KM75..IV3;7KE..KM70..5H..IV3199906-200208

12V 80A

main27310-13410i7KE..KM7#..4HC199906-200208

12V 70A

main27310-64460i3CE..CM7#,8#199906-200208

12V 55A

main27310-64500i3CE..CM75,85..4HC..IV3;3CE..CM75,85..(JL,SJL)..TS..5H..CBU199906-200208

12V 70A

main27310-64560i3CE..CM7#,85..IV3199906-200110

main27310-64650i3CE..CM7#,85..IV3200110-200208

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10178i3CE..CM7#,8#199906-200208

12V 55A

main90099-10191i3CE..CM7#,85..IV3199906-200208

12V 70A

sub90099-10230

main90099-10192i7KE..KM85..IV3;3CE..CM75,85..4HC..IV3200106-200208

main90099-10192i7KE..KM7#..4HC;7KE..KM7#..5H..IV3;3CE..CM75,85..(JL,SJL)..TS..5H..CBU199906-200208

12V 70A,80A

main90099-10199i7KE..KM7#,8#..5H200007-200208

12V 55A

main90099-10214i7KE..KM7#,8#..5H199906-200007

12V 55A

sub90099-10159

sub90099-10199

27312PLATE, RETAINER

main27312-42010i7KE..KM7#..4HC;3CE..CM7#,85..IV3;7KE..KM7#..5H..IV3;3CE..CM75,85..(JL,SJL)..TS..5H..CBU199906-200208

12V 70A,80A

main27312-42010i7KE..KM85..IV3200106-200208

main27312-70200i3CE..CM7#,8#199906-200208

12V 55A

main27312-72100i7KE..KM7#,8#..5H¥0199906-200208

12V 55A

27330ROTOR ASSY, ALTERNATOR

main27330-11250i7KE..KM7#..5H;7KE..KM8#..TS..5H..(CBU,IV3)199906-200408

12V 55A

main27330-13380i7KE..KM7#,8#..5H199906-200007

12V 55A

sub27330-11250

main27330-16390i7KE..KM7#..4HC;7KE..KM7#,85..5H..IV3;3CE..CM75,85..4HC..IV3;3CE..CM75,85..(JL,SJL)..TS..5H..CBU200004-200208

12V 70A

main27330-16390i3CE..CM75,85..IV6200208-200408

main27330-64480i3CE..CM7#,85..IV3199906-200110

main27330-64650i3CE..CM7#,85..IV3200110-200408

main27330-76030i7KE..KM7#..4HC;7KE..KM7#..5H..IV3;3CE..CM75,85..(JL,SJL)..TS..5H..CBU199906-200007

12V 70A,80A

sub27330-16390

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i3CE..CM7#,8#;7KE..KM7#..4HC;7KE..KM7#..5H..IV3199906-200208

12V 55A,70A,80A

main90099-10213i7KE..KM7#,8#..5H199906-200007

12V 55A

sub90099-10140

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-13360i3CE..CM7#,8#..CBU,IV3199906-200408

12V 55A

main27357-55080i3CE..CM75,85..IV6199906-200408

12V 70A,80A

main27357-55080i7KE..KM85..IV3200106-200208

27359FRAME, ALTERNATOR RECTIFIER END

main27359-13350i7KE..KM7#,8#..5H199906-200208

12V 55A

main27359-13390i7KE..KM7#..4HC;7KE..KM7#..5H..IV3199906-200208

12V 70A,80A

main27359-13390i7KE..KM85..IV3200106-200208

main27359-64462i3CE..CM7#,8#199906-200208

12V 55A

main27359-64500i3CE..CM7#,85..IV3;3CE..CM75,85..(JL,SJL)..TS..5H..CBU199906-200208

12V 70A

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-35060i7KE..KM7#,8#..5H199906-200208

12V 55A

main27370-58320i3CE..CM7#,8#199906-200408

12V 55A

main27370-75060i3CE..CM75,85..IV6199906-200408

12V 70A,80A

main27370-75060i7KE..KM85..IV3200106-200208

27371BRUSH, ALTERNATOR

main27371-70300i7KE..KM7#..5H;3CE,7KE..CM7#,8#,KM8#199906-200208

27372SPRING, ALTERNATOR BRUSH

main27372-63020i7KE..KM7#..5H;3CE,7KE..CM7#,8#,KM8#199906-200208

sub27372-87501

27384WASHER

main27384-16380i7KE..KM7#..5H;3CE,7KE..CM7#,8#,KM8#199906-200208

12V 55A

main27384-50030i7KE..KM7#..4HC;3CE..CM7#,85..IV3;7KE..KM7#..5H..IV3;3CE..CM75,85..(JL,SJL)..TS..5H..CBU199906-200208

12V 70A,80A

main27384-50030i7KE..KM85..IV3200106-200208

27387INSULATOR, TERMINAL

main27387-42021i7KE..KM7#..4HC;3CE..CM7#,85..IV3;7KE..KM7#..5H..IV3;3CE..CM75,85..(JL,SJL)..TS..5H..CBU199906-200208

12V 70A,80A

main27387-42021i7KE..KM85..IV3200106-200208

main27387-70171i7KE..KM7#..5H;3CE,7KE..CM7#,8#,KM8#199906-200208

12V 55A

27389INSULATOR, TERMINAL

main27389-42010i7KE..KM7#..4HC;3CE..CM7#,85..IV3;7KE..KM7#..5H..IV3;3CE..CM75,85..(JL,SJL)..TS..5H..CBU199906-200208

12V 70A,80A

main27389-42010i7KE..KM85..IV3200106-200208

main27389-63020i7KE..KM7#..5H;3CE,7KE..CM7#,8#,KM8#199906-200208

12V 55A

27411PULLEY, ALTERNATOR

main27411-13360i7KE..KM8#..TB199906-200208

12V 55A

main27411-13390i7KE..KM85..IV3200106-200208

main27411-13390i7KE..KM75..5H..IV3;7KE..KM75..3SO..4HC;7KE..KM70..SJL..IV3;7KE..KM70..JL..5H..IV3;7KE..KM70..SJL..3SO..4HC..CBU199906-200208

12V 70A,80A

main27411-64460i3CE..CM7#,8#..CBU,IV3199906-200408

12V 55A

main27411-64500i3CE..CM75,85..IV6200106-200408

main27411-64500i3CE..CM75,85..(JL,SJL)..TS..5H..CBU199906-200208

12V 70A

main27411-64560i3CE..CM7#,85..IV3199906-200408

12V 70A

27412COLLAR, SPACER(FOR ALTERNATOR PULLEY)

main27412-35100i7KE..KM7#,8#..5H199906-200208

27443COVER, ALTERNATOR BEARING

main27443-63020i3CE,7KE..CM7#,8#,KM7#,8#199906-200208

27446CLIP, ALTERNATOR CORD

main27446-58040i7KE..KM7#,8#..5H199906-200208

27700AREGULATOR ASSY, GENERATOR

main27700-13130i7KE..KM7#,8#¥19,500199906-200208

main27700-50030i3CE..CM7#,8#¥16,200199906-200408

9009900197

main90099-00197

9009900268

main90099-00268¥0

9009900269

main90099-00269¥0

9009900276

main90099-00276¥110

9009904478

main90099-04478¥0

9009904966

main90099-04966¥0

9009905119

main90099-05119

9009905172

main90099-05172

9009905229

main90099-05229

9017906158

main90179-06158¥70

9017910016

main90179-10016¥130

34 parts on this diagram · 8 diagrams in section
