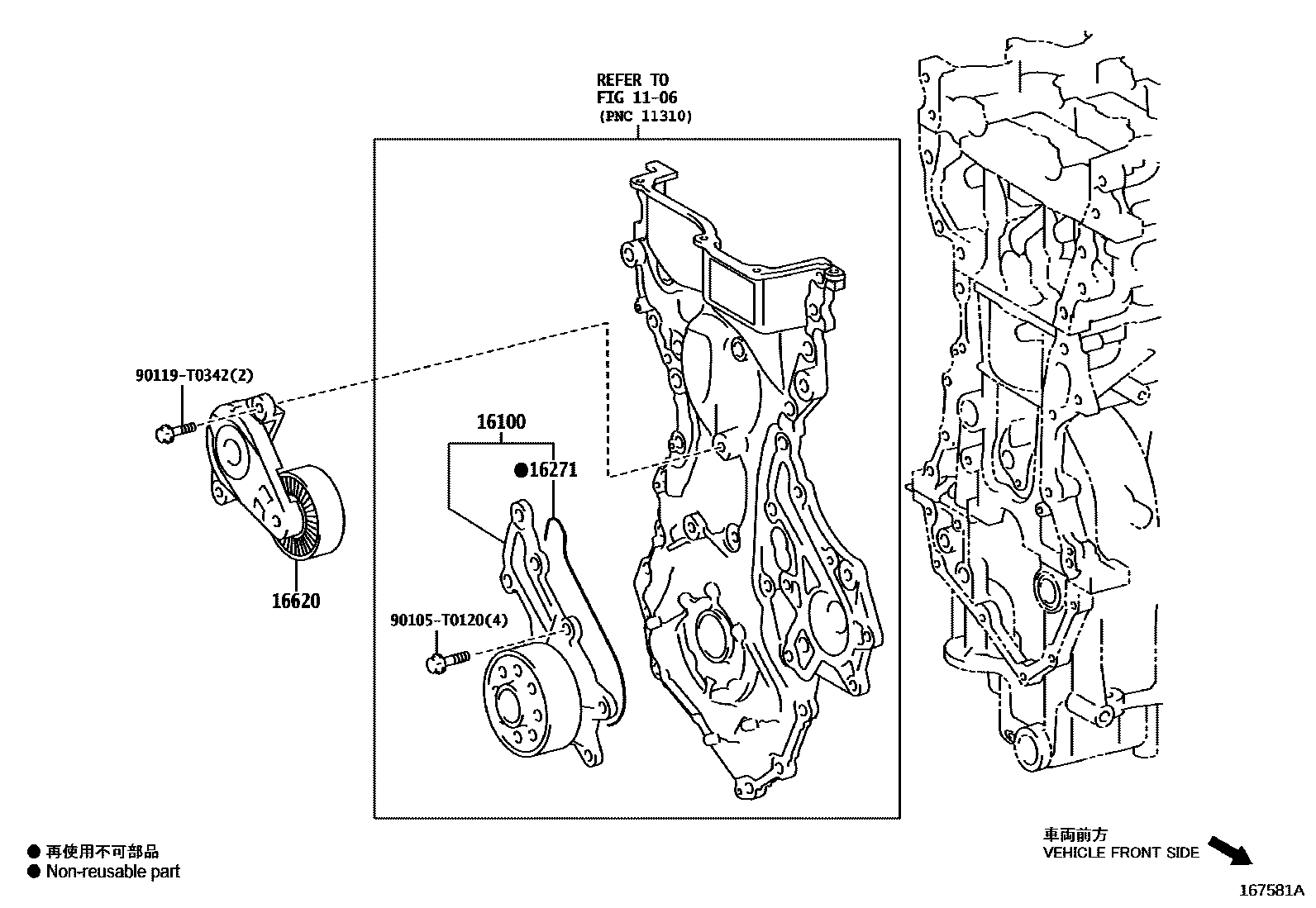

Toyota LIMO/VIOS — WATER PUMP

1106

16100PUMP ASSY, ENGINE WATER

main16100-B9490i1NRFE..NSP150¥8,000201912-202111

main16100-B9490i2NRFE..NSP151¥8,000201912

16271GASKET, WATER PUMP

main16271-0Y030i1NRFE..NSP150¥650201912-202111

main16271-0Y030i2NRFE..NSP151¥650201912

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0Y061i1NRFE,2NRFE..NSP15#201912-202208

main16620-0Y062i2NRFE..NSP151202209

90105T0120

main90105-T0120

90119T0342

main90119-T0342

6 parts on this diagram · 1 diagram in section
