Toyota LIMO/VIOS — SHORT BLOCK ASSEMBLY

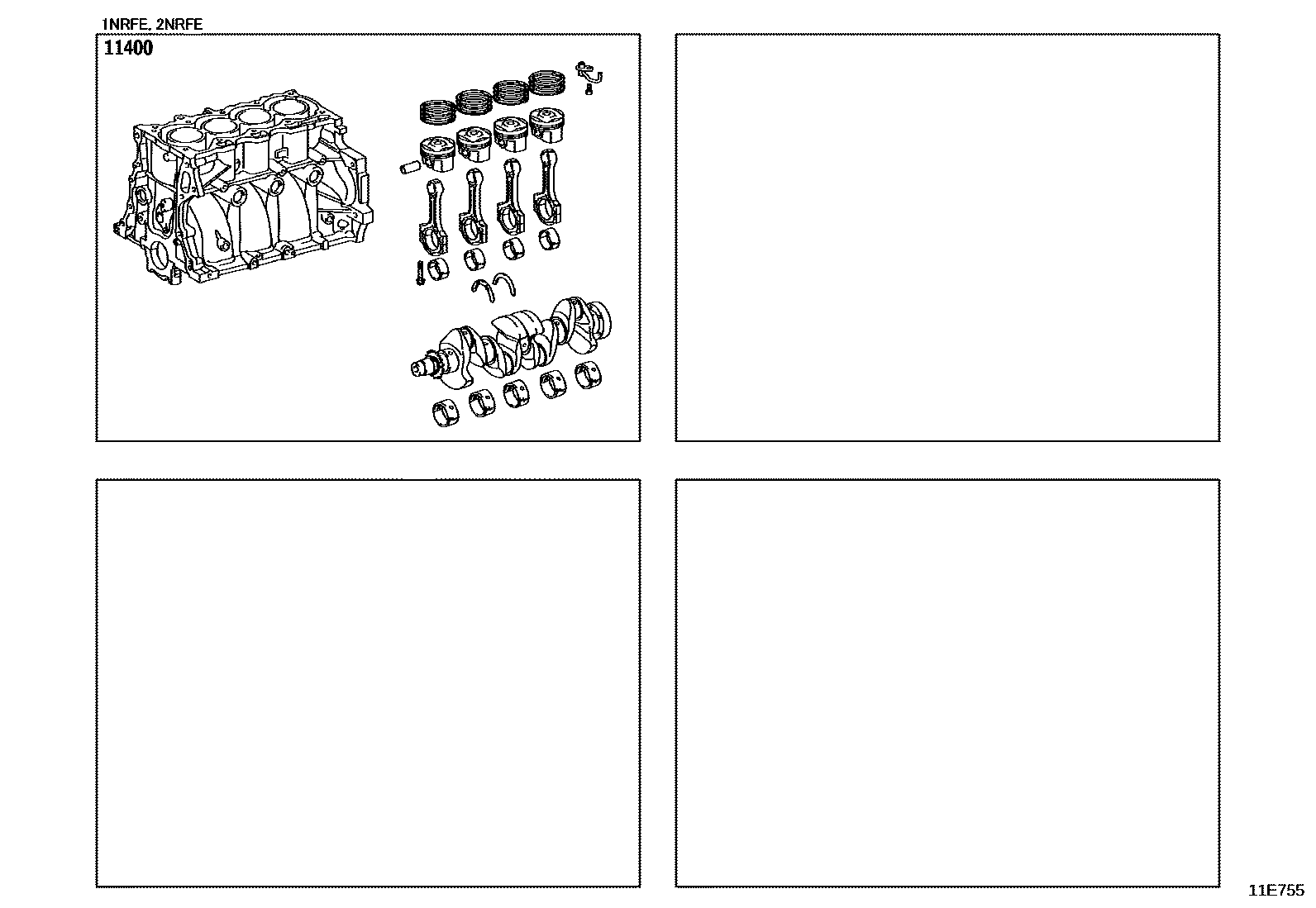

Parts diagram

11400BLOCK ASSY, SHORT

main11400-0Y100i201912-202111

main11400-0Y110i201912

1 parts on this diagram · 1 diagram in section
