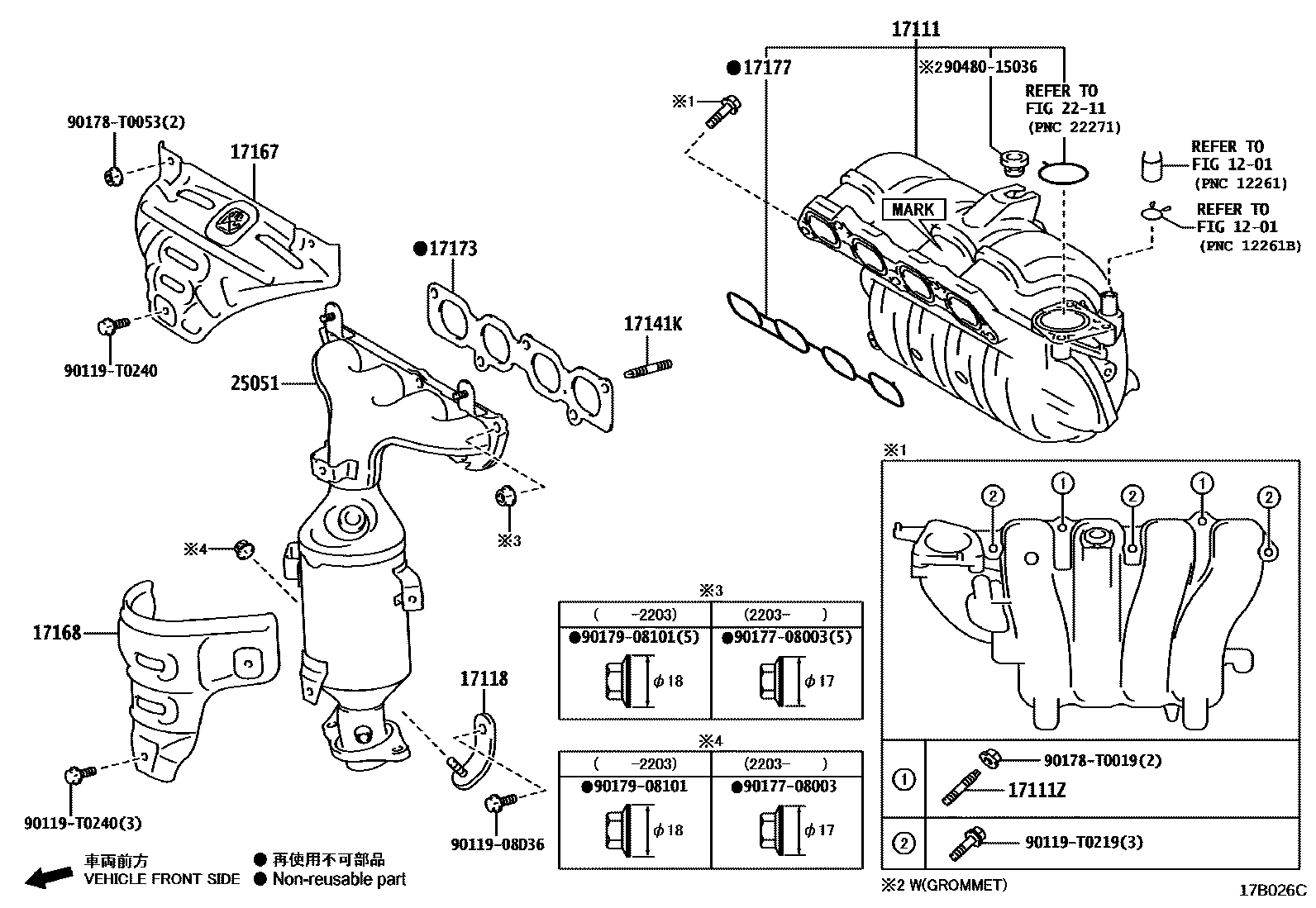

Toyota LIMO/VIOS — MANIFOLD

1201

17111MANIFOLD, INTAKE

main17120-0Y050i1NRFE,2NRFE..NSP15#201912-202105

MARK 17101-0Y050

sub17120-0Y051

main17120-0Y051i1NRFE..NSP150202105-202111

main17120-0Y070i1NRFE,2NRFE..NSP15#201912-202105

MARK 17101-0Y060

sub17120-0Y071

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90126-T0019i1NRFE,2NRFE..NSP15#..5F¥80201912-202303

17118STAY, MANIFOLD

main17118-0Y031i1NRFE..NSP150201912-202111

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90126-08063i2NRFE..NSP151..CVT¥80201912-202303

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-0Y020i1NRFE..NSP150201912-202111

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-0Y020i1NRFE..NSP150201912-202111

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-0Y030i1NRFE..NSP150201912-202111

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-0Y030i1NRFE..NSP150¥600201912-202111

2211

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-0Y050i1NRFE..NSP150201912-202112

main25051-0Y060i2NRFE..NSP151202112

9011908D36

main90119-08D36¥100

90119T0219

main90119-T0219

90119T0240

main90119-T0240

9017708003

main90177-08003¥80

90178T0019

main90178-T0019

90178T0053

main90178-T0053

9017908101

main90179-08101¥90

9048015036

main90480-15036¥100

19 parts on this diagram · 1 diagram in section
