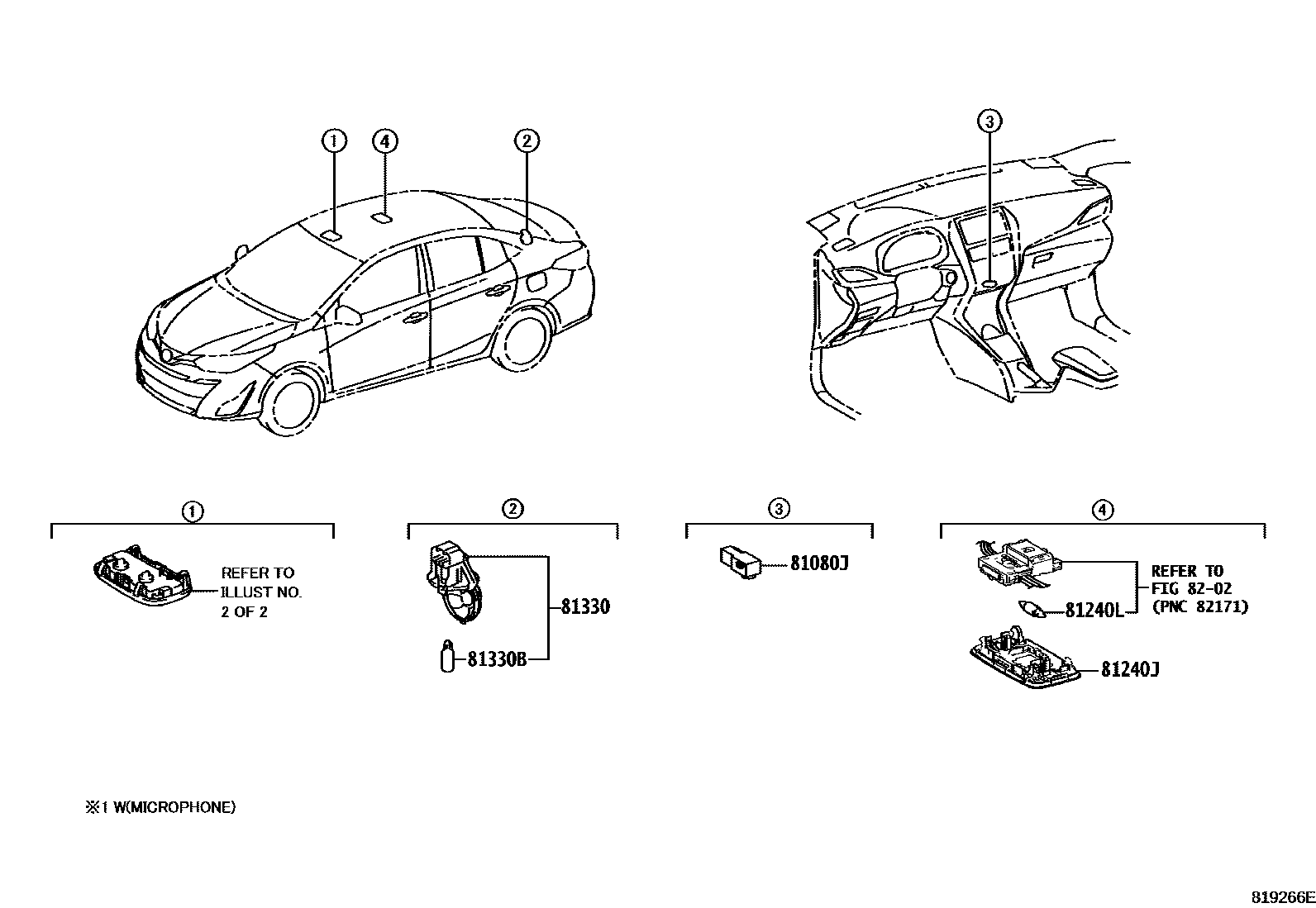

Toyota LIMO/VIOS — INTERIOR LAMP

0001 1 0002 1

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-48020iNSP151¥770201912-202111

81240JLAMP ASSY, ROOM

main81240-42020-A1iNSP151201912

IVORY,TRIM0#

main81240-42020-B1iNSP150201912-202111

GRAY,TRIM2#

81240LBULB, ROOM LAMP

main90981-14011iNSP150¥180201912-202111

12V 8W

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-02030iNSP150201912-202111

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iNSP150¥170201912-202111

12V 3.8W

8202

6 parts on this diagram · 2 diagrams in section
