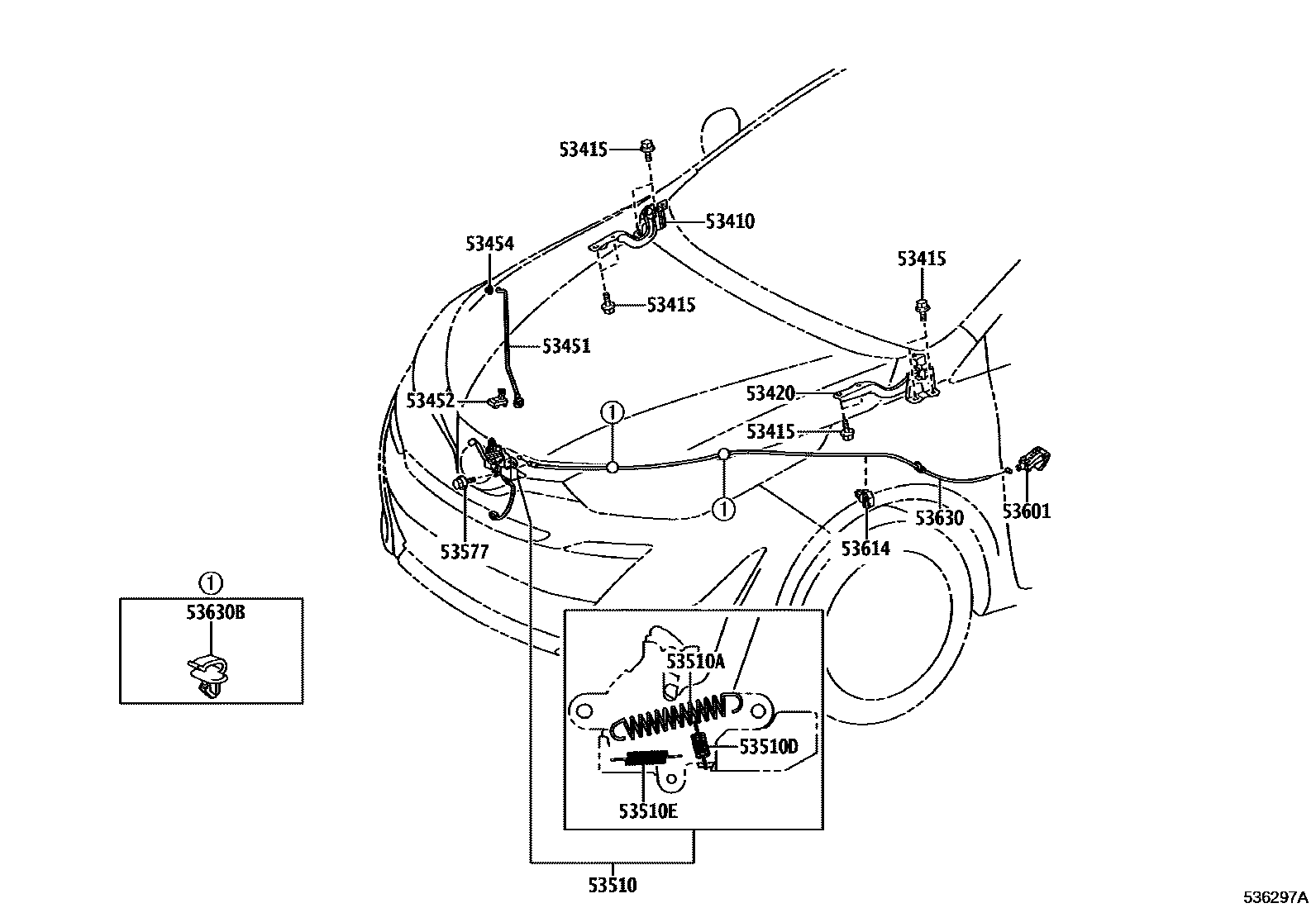

Toyota LIMO/VIOS — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-0D400iNSP151201912-202111

53415BOLT, HOOD HINGE

main90105-T0120iNSP150201912-202109

53420HINGE ASSY, HOOD, LH

main53420-0D400iNSP150201912-202111

53451ROD, HOOD SUPPORT

main53440-0D220iNSP150201912-202111

53452HOLDER, HOOD STAY

main53452-0D090iNSP150201912-202111

53454CLIP, HOOD SUPPORT ROD

main90480-T0009iNSP150201912-202111

53510LOCK ASSY, HOOD

main53510-0D790iNSP151201912-202109

main53510-0D800iNSP150201912-202111

main53510-0DA90iNSP151202109

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-16077iNSP151¥120201912-202111

WD=1.6,CW=12

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-T0004iNSP150201912-202111

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-T0005iNSP150201912-202111

WD=0.9,CW=21

53577BOLT, HOOD LOCK

main90119-T0273iNSP150201912-202111

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-0D040-A0iNSP151201912

IVORY,TRIM0#

main53601-0D040-C1iNSP150201912-202111

BLACK,TRIM2#

53614CLAMP, HOOD LOCK CONTROL CABLE

main82711-16790iNSP150¥120201912-202111

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0D390iNSP150201912-202111

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005iNSP150¥80201912-202111

15 parts on this diagram · 1 diagram in section
