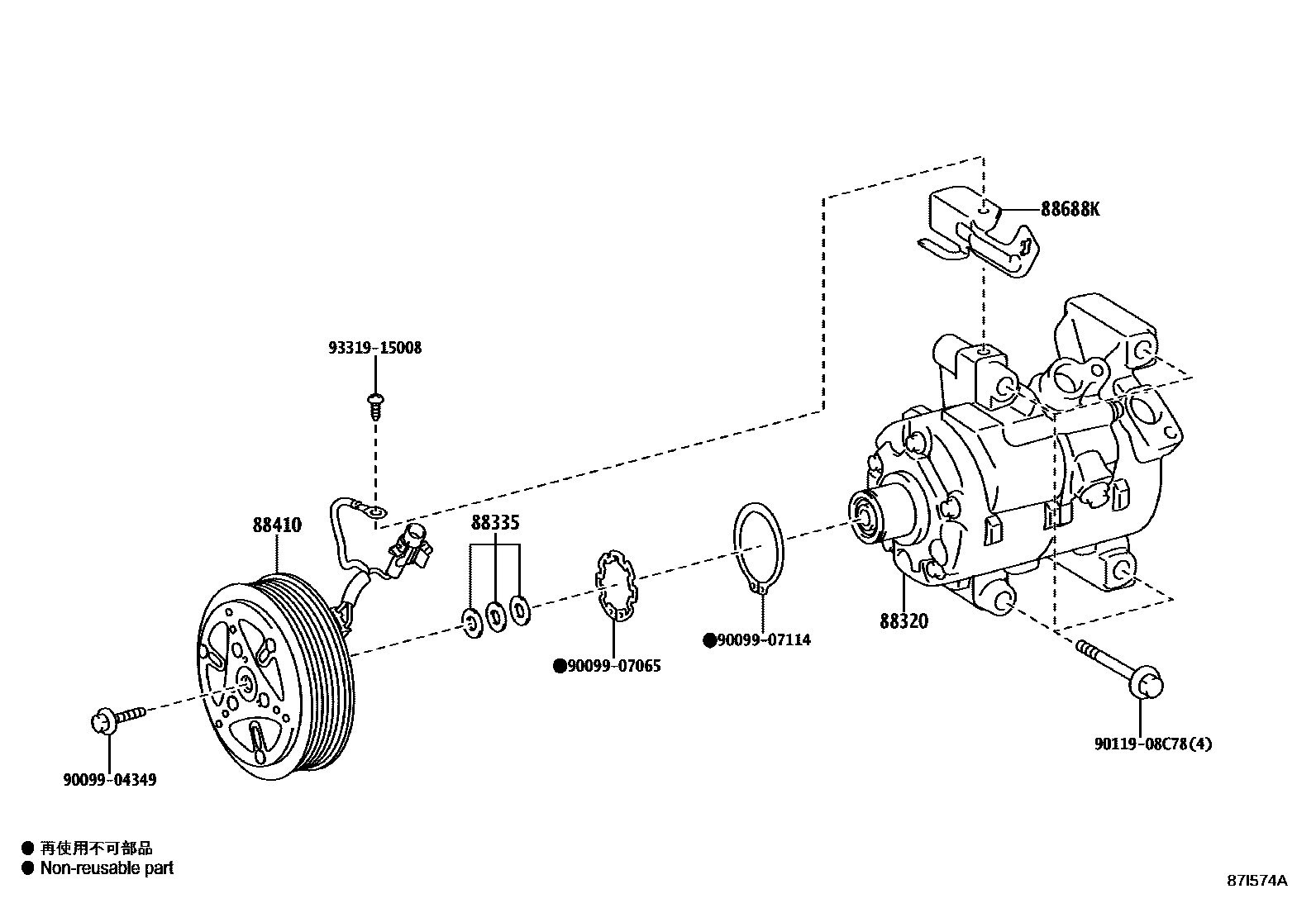

Toyota LIMO/VIOS — HEATING & AIR CONDITIONING - COMPRESSOR

88320COMPRESSOR ASSY, COOLER

main88320-0D140iNSP150201912-202111

main88320-0D140iNSP151201912

88335GASKET KIT, OVERHAUL

main88335-30420iNSP150201912-202111

main88335-30420iNSP151201912

88410CLUTCH ASSY, MAGNET

main88410-0D440iNSP150201912-202111

main88410-0D440iNSP151201912

88688KBRACKET, COOLER COMPRESSOR

main88849-0D070iNSP150201912-202111

main88849-0D070iNSP151201912

9009904349

main90099-04349

9009907065

main90099-07065¥90

9009907114

main90099-07114

9011908C78

main90119-08C78¥0

9331915008

main93319-15008¥170

9 parts on this diagram · 1 diagram in section
