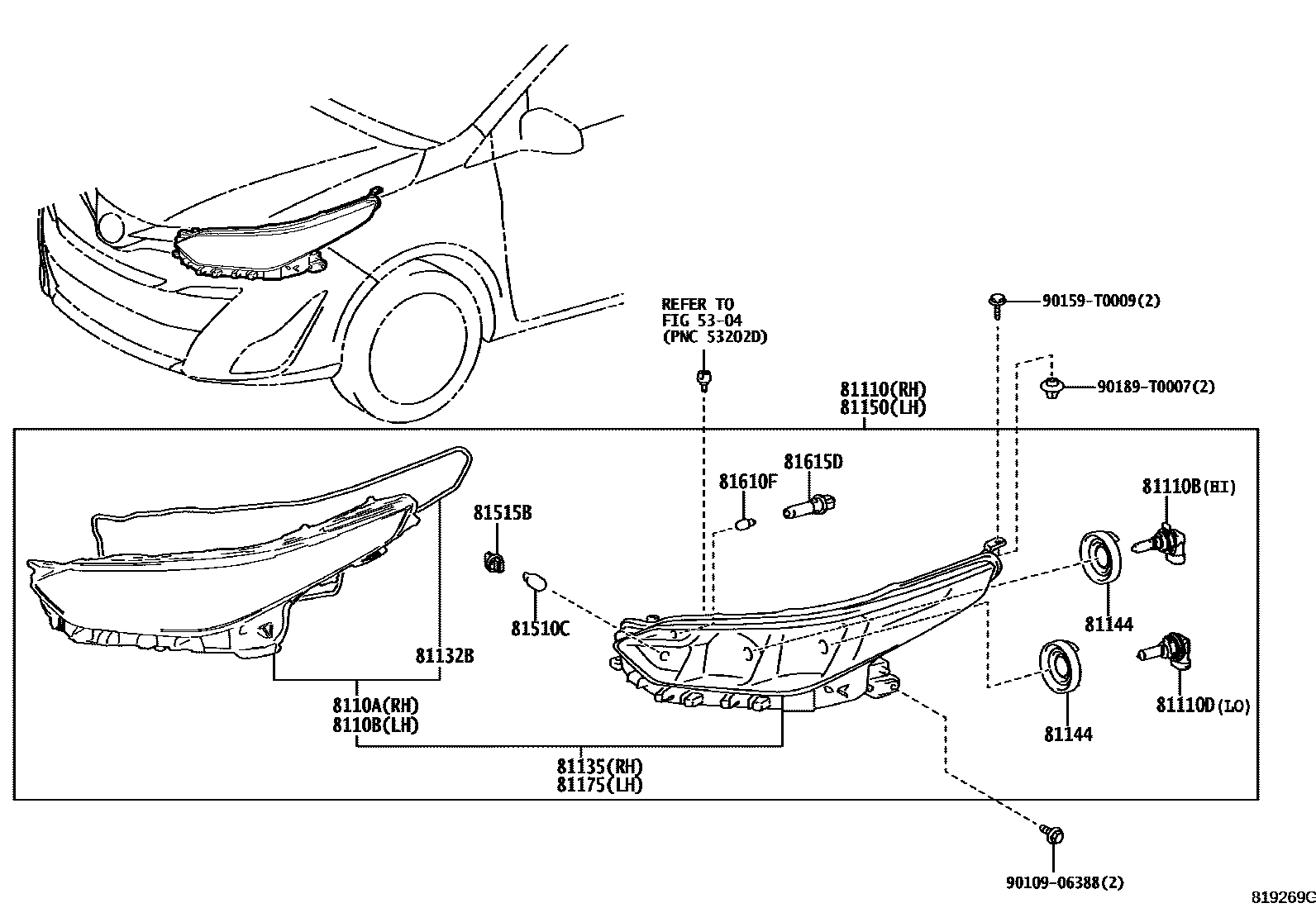

Toyota LIMO/VIOS — HEADLAMP

0001 1HALOGEN(MULTI REFLECTOR TYPE)0002 1HALOGEN(PROJECTOR TYPE) 0003 1LED

5304

8110ALENS SUB-ASSY, HEADLAMP, RH

main8110A-0DF01iNSP151..CVT..R202009-202103

8110BLENS SUB-ASSY, HEADLAMP, LH

main8110B-0DF01iNSP151..CVT..R202009-202103

81110HEADLAMP ASSY, RH

main81110-0DF30iNSP15#..D,R201912-202009

sub81110-0DF31

main81110-0DF31iNSP151..CVT..R202009-202103

main81110-0DF70iNSP151..G201912

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046iNSP15#¥2,000201912

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13075iNSP15#¥1,800201912

12V 55W,HALOGEN

81132BGASKET, HEADLAMP LENS

main81132-48C30iNSP151..CVT..R¥2,230202009-202103

81135UNIT ASSY, HEADLAMP, RH

main81130-0DF30iNSP15#..D,R201912-202009

sub81130-0DF31

main81130-0DF31iNSP151..CVT..R202009-202103

main81130-0DF70iNSP151..CVT..R201912

81144COVER, HEADLAMP, NO.1

main90075-65006iNSP15#¥460201912

81150HEADLAMP ASSY, LH

main81150-0DF30iNSP15#..D,R201912-202009

sub81150-0DF31

main81150-0DF31iNSP15#..5F202009-202103

main81150-0DF70iNSP151..CVT..R201912

81175UNIT ASSY, HEADLAMP, LH

main81170-0DF30iNSP15#..D,R201912-202009

sub81170-0DF31

main81170-0DF31iNSP151..CVT..R202009-202103

main81170-0DF70iNSP151..CVT..R201912

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021iNSP15#¥300201912

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028iNSP15#¥610201912

81610FBULB(FOR CLEARANCE LAMP)

main90981-11069iNSP151..CVT..R¥110201912-202111

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60089iNSP151..CVT..R¥610201912-202111

9010906388

main90109-06388¥70

90159T0009

main90159-T0009

90189T0007

main90189-T0007

18 parts on this diagram · 3 diagrams in section
