Toyota LIMO/VIOS — ENGINE OIL PUMP

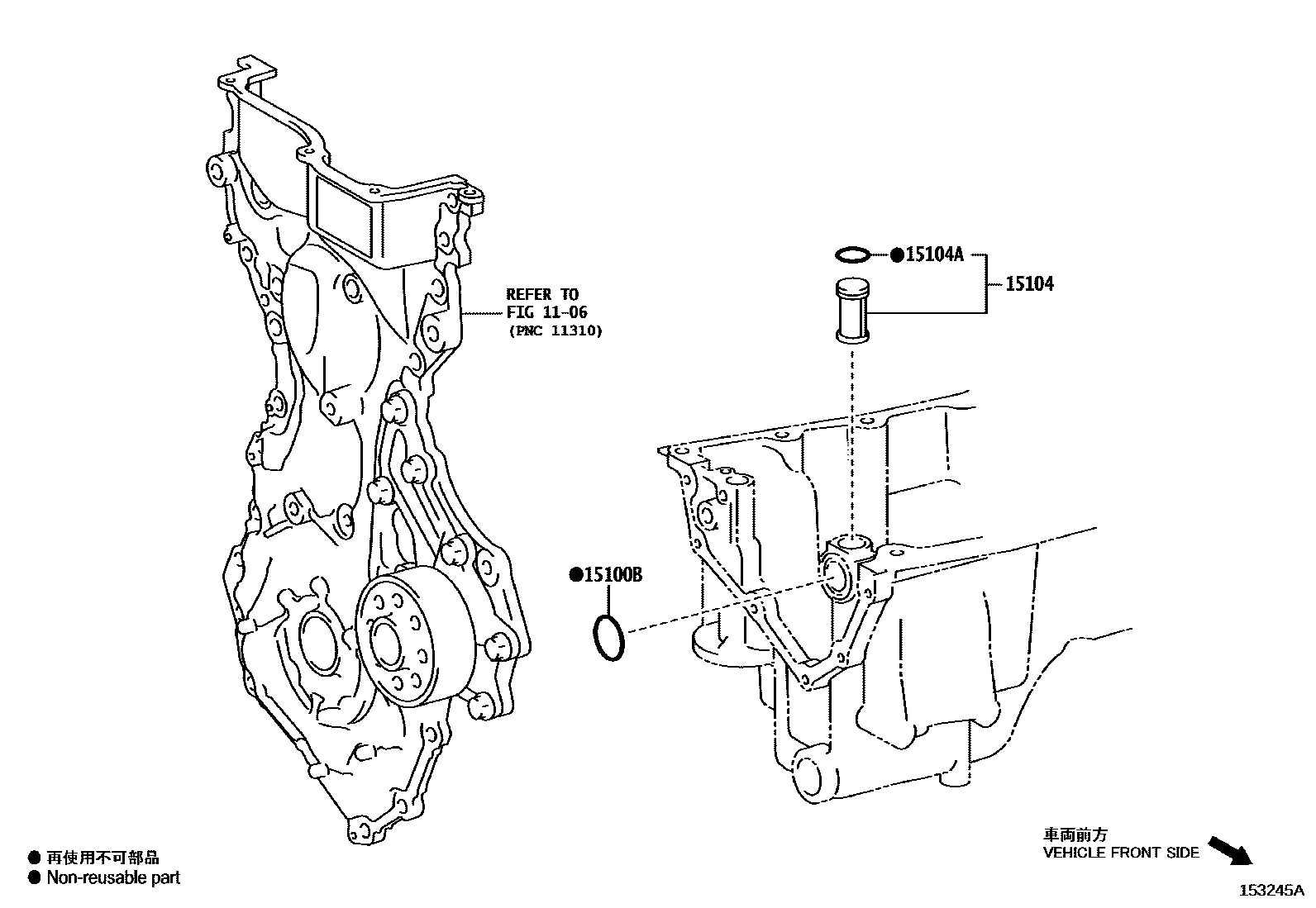

Parts diagram

1106

15100BRING, O(FOR OIL PUMP)

main90301-T0059i201912-202111

15104STRAINER SUB-ASSY, OIL

main15104-0Y010i201912-202111

15104ARING, O(FOR OIL STRAINER)

main90301-T0061i201912-202111

4 parts on this diagram · 1 diagram in section
