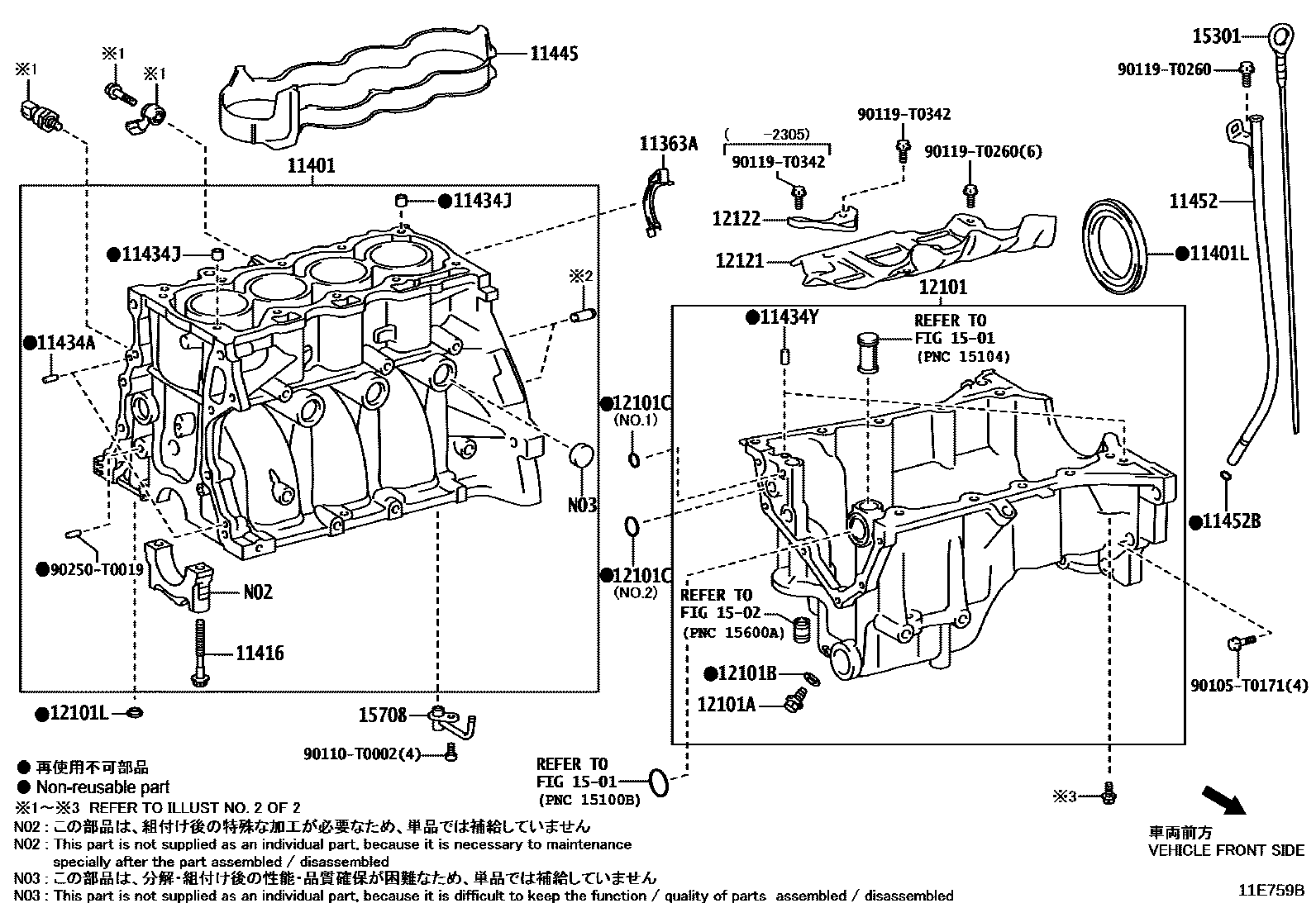

Toyota LIMO/VIOS — CYLINDER BLOCK

0001 1 0002 1

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-0Y020i1NRFE..NSP150201912-202111

11401BLOCK SUB-ASSY, CYLINDER

main11410-09700i2NRFE..NSP151201912

main11410-09710i1NRFE..NSP150201912-202111

11401LSEAL, ENGINE REAR OIL

main90311-T0074i2NRFE..NSP151¥1,390201912-202111

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-T2013i1NRFE..NSP150201912-202111

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097i1NRFE..NSP150¥50201912-202111

L=12,OD=4.0

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-13017i1NRFE..NSP150¥140201912-202111

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-08120i1NRFE..NSP150¥140201912-202111

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-0Y020i1NRFE..NSP150201912-202111

11452GUIDE, OIL LEVEL GAGE

main11452-0Y020i1NRFE..NSP150201912-202111

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90301-T0060i2NRFE..NSP151¥130201912-202111

12101PAN SUB-ASSY, OIL

main12101-0Y040i2NRFE..NSP151201912-202111

12101APLUG(FOR OIL PAN DRAIN)

main90341-T0017i1NRFE..NSP150201912-202111

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-T0024i2NRFE..NSP151201912-202111

12101CRING, O(FOR OIL PAN)

main90301-T0055i1NRFE..NSP150201912-202111

NO.1:REFER ILLUST.

main90301-T0057i1NRFE..NSP150201912-202111

NO.2:REFER ILLUST.

12101LGASKET NO.1(FOR OIL PAN)

main90430-T0023i1NRFE..NSP150¥80201912-202111

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-0Y030i1NRFE..NSP150201912-202111

12122PLATE, OIL PAN BAFFLE, NO.2

main12122-0Y010i1NRFE,2NRFE..NSP15#201912-202305

main12122-0Y011i2NRFE..NSP151202305

1501

1502

15301GAGE SUB-ASSY, OIL LEVEL

main15301-0Y010i1NRFE..NSP150201912-202111

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-0Y040i1NRFE..NSP150¥820201912-202111

90105T0171

main90105-T0171¥120

90110T0002

main90110-T0002

90119T0260

main90119-T0260

90119T0342

main90119-T0342

90250T0019

main90250-T0019

26 parts on this diagram · 2 diagrams in section
