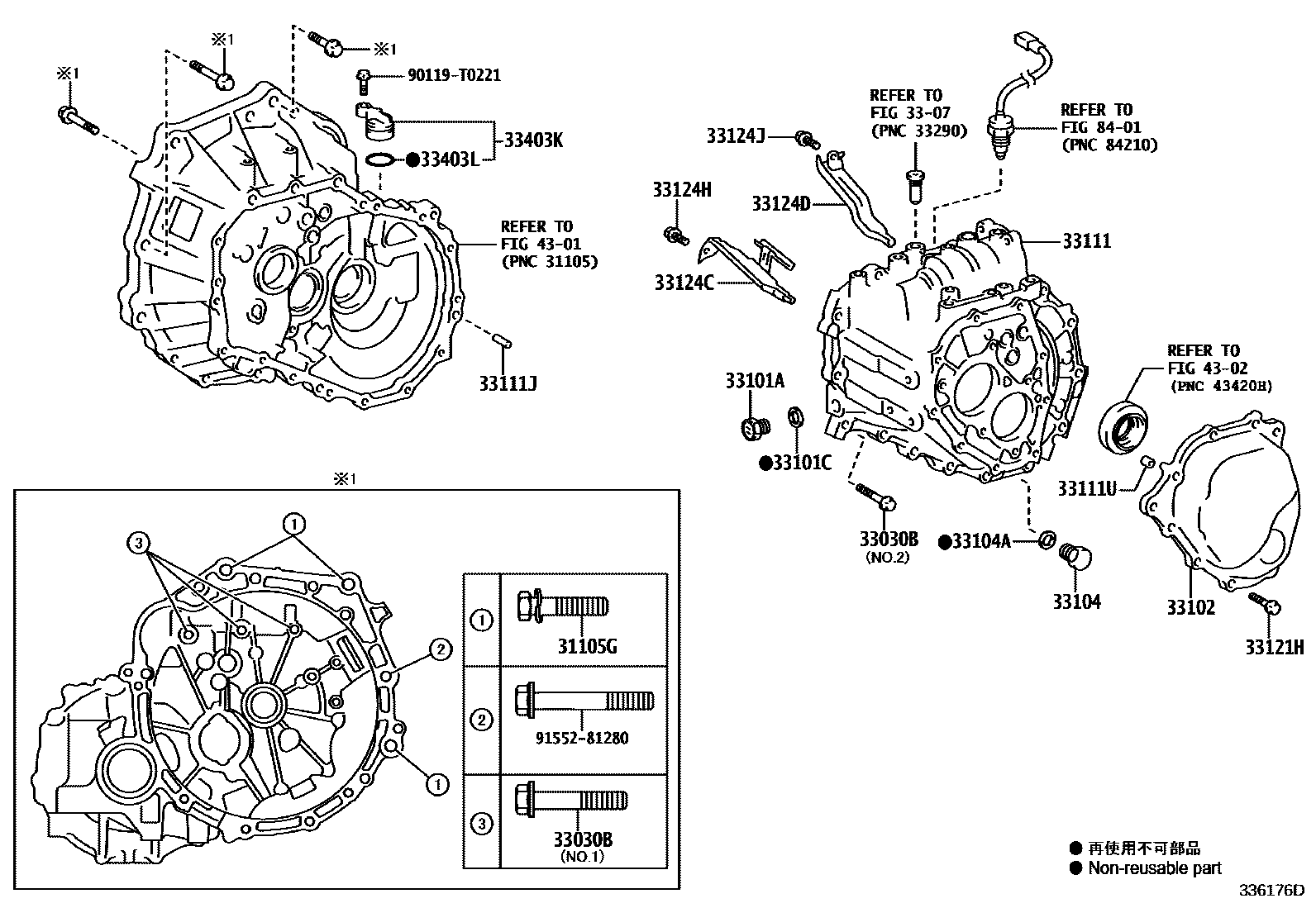

Toyota LIMO/VIOS — CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90119-T0310iNSP150201912-202111

*12-1.25PX45-30

main90119-T0310iNSP151..5F201912

*12-1.25PX45-30

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-T0323iNSP151..5F201912

*8-1.25PX51-28,NO.2:REFER ILLUST.

main90105-T0323iNSP150201912-202111

*8-1.25PX51-28,NO.2:REFER ILLUST.

main90105-T0325iNSP150201912-202111

*8-1.25PX45-27.5,NO.1:REFER ILLUST.

main90105-T0325iNSP151..5F201912

*8-1.25PX45-27.5,NO.1:REFER ILLUST.

3307

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18033iNSP150¥190201912-202111

main90341-18033iNSP151..5F¥190201912

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-T0021iNSP151..5F201912

main90430-T0021iNSP150201912-202111

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-52021iNSP150¥9,800201912-202111

main33102-52021iNSP151..5F¥9,800201912

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iNSP150¥180201912-202111

main90341-18006iNSP151..5F¥180201912

33104AGASKET, DRAIN PLUG(MTM)

main90430-T0021iNSP150201912-202111

main90430-T0021iNSP151..5F201912

33111CASE, MANUAL TRANSMISSION

main33111-0D120iNSP150201912-202111

main33111-0D120iNSP151..5F201912

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iNSP150¥120201912-202111

L=23,OD=8

main90250-08054iNSP151..5F¥120201912

L=23,OD=8

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iNSP150¥120201912-202111

L=11,OD=11

main90253-11001iNSP151..5F¥120201912

L=11,OD=11

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90119-T0449iNSP150201912-202111

main90119-T0449iNSP151..5F201912

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-20050iNSP150¥440201912-202111

main33124-20050iNSP151..5F¥440201912

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12021iNSP150¥720201912-202111

main33124-12021iNSP151..5F¥720201912

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-T0296iNSP150201912-202111

main90119-T0296iNSP151..5F201912

33124JBOLT, W/WASHER

main90119-T0296iNSP150201912-202111

main90119-T0296iNSP151..5F201912

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-0D020iNSP150201912-202111

main33403-0D020iNSP151..5F201912

33403LRING, O

main96711-24030iNSP150¥170201912-202111

main96711-24030iNSP151..5F¥170201912

4301

4302

8401

90119T0221

main90119-T0221

9155281280

main91552-81280¥240

23 parts on this diagram · 1 diagram in section
