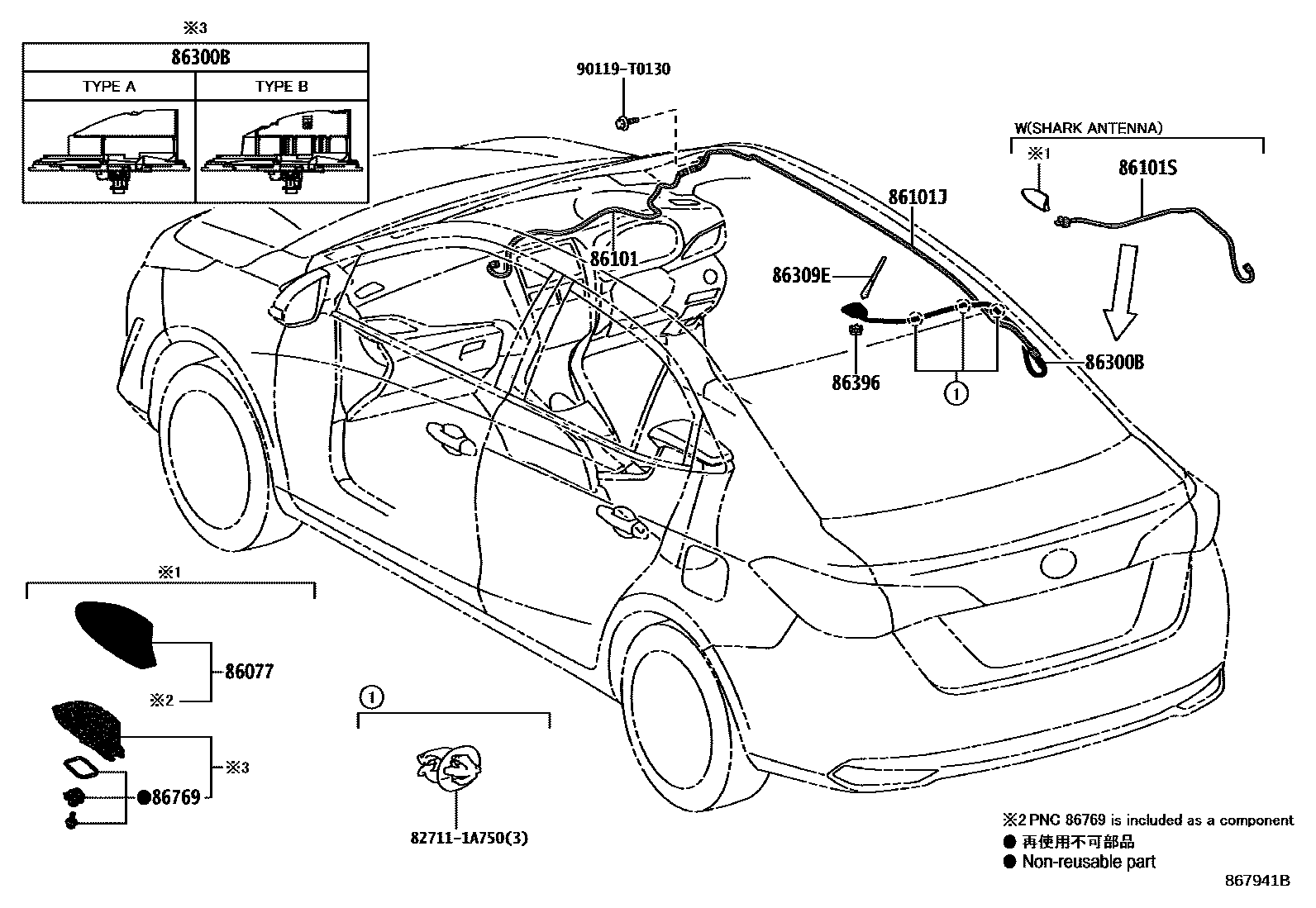

Toyota LIMO/VIOS — ANTENNA

86077COVER KIT, ANTENNA

main86077-0D010-A0iNSP151201912

SUPER WHITE 2,040

main86077-0D010-A2iNSP151202103

PLATINUM WHITE PEARL MC.,089

main86077-0D010-B1iNSP151201912

SILVER ME.,1D6

main86077-0D010-B2iNSP151201912

GRAY ME.,1G3

main86077-0D010-C2iNSP151201912

ATTITUDE BLACK MC.,218

main86077-0D010-D1iNSP151201912

RED M.M.,3R3

main86077-0D010-E0iNSP151201912

BEIGE ME.,4R0

86101CORD SUB-ASSY, ANTENNA

main86101-0DA40iNSP150201912-202111

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-0D890iNSP150201912-202111

86101SCORD SUB-ASSY, ANTENNA

main86101-0DA80iNSP151201912

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-0D400iNSP150201912-202111

main86300-0D480iNSP151201912-202103

main86300-0D480iNSP151202103

TYPE A:REFER ILLUST.

main86300-0D481iNSP151202103

TYPE B:REFER ILLUST.

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-0D220iNSP150201912-202111

86396NUT, ANTENNA

main86396-47010iNSP150¥430201912-202111

86769HOUSING, ROOF ANTENNA

main86769-0K020iNSP151201912

827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A750¥60

90119T0130

main90119-T0130

10 parts on this diagram · 1 diagram in section
