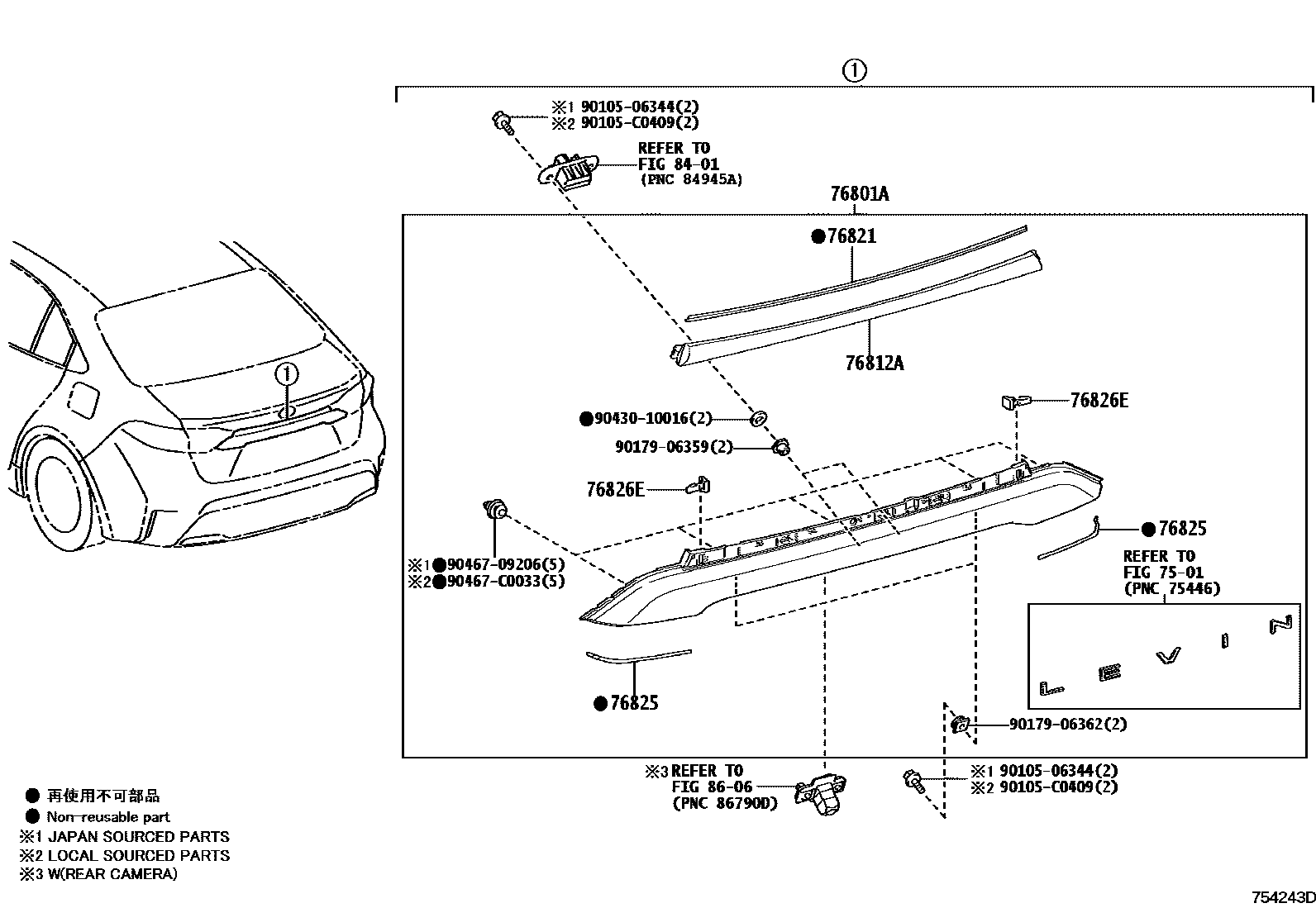

Toyota LEVIN — REAR MOULDING

7501

76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE

main76801-02P00-A0iMZEA12..N202107-202304

PLATINUM WHITE PEARL MC.,089

main76801-02P00-C0iMZEA12..N202107-202304

BLACK MC.,209

main76801-02P00-D0iMZEA12..N202107-202304

RED M.M.,3R3

main76801-02P00-E0iMZEA12..N202107-202304

AVANT-GARDE BRONZE ME.,4V8

main76801-02P00-E1iMZEA12..N202107-202304

STEEL BLONDE ME.,4X1

main76801-02P10-A0iMZEA12..G202107-202304

PLATINUM WHITE PEARL MC.,089

main76801-02P10-A0iMZEA12,MZEH16202304

PLATINUM WHITE PEARL MC.,089

main76801-02P10-C0iMZEA12..G202107-202304

BLACK MC.,209

main76801-02P10-C0iMZEA12,MZEH16202304

BLACK MC.,209

main76801-02P10-D0iMZEA12,MZEH16202304

RED M.M.,3R3

main76801-02P10-D0iMZEA12..G202107-202304

RED M.M.,3R3

main76801-02P10-E0iMZEA12..G202107-202304

AVANT-GARDE BRONZE ME.,4V8

main76801-02P10-E0iMZEA12,MZEH16202304

AVANT-GARDE BRONZE ME.,4V8

main76801-02P10-E1iMZEA12..G202107-202304

STEEL BLONDE ME.,4X1

main76801-02P10-E1iMZEA12,MZEH16202304

STEEL BLONDE ME.,4X1

76812AGARNISH, BACK DOOR, OUTSIDE NO.2

main76812-02210iMZEA12202107-202304

main76812-02210iMZEA12,MZEH16202304

76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER

main76821-02230iMZEA12,MZEH16202304

main76821-02230iMZEA12202107-202304

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-02240iMZEA12202107-202304

main76825-02240iMZEA12,MZEH16202304

76826ERETAINER, LUGGAGE COMPARTMENT DOOR GARNISH, NO.1

main52535-28020iMZEA12¥130202107-202304

(J)

main52535-28020iMZEA12,MZEH16¥130202304

(J)

main76826-02030iMZEA12202107-202304

(L)

main76826-02030iMZEA12,MZEH16202304

(L)

8401

8606

9010506344

main90105-06344¥60

90105C0409

main90105-C0409

9017906359

main90179-06359¥80

9017906362

main90179-06362¥60

9043010016

main90430-10016¥80

9046709206

main90467-09206¥80

90467C0033

main90467-C0033

15 parts on this diagram · 1 diagram in section
