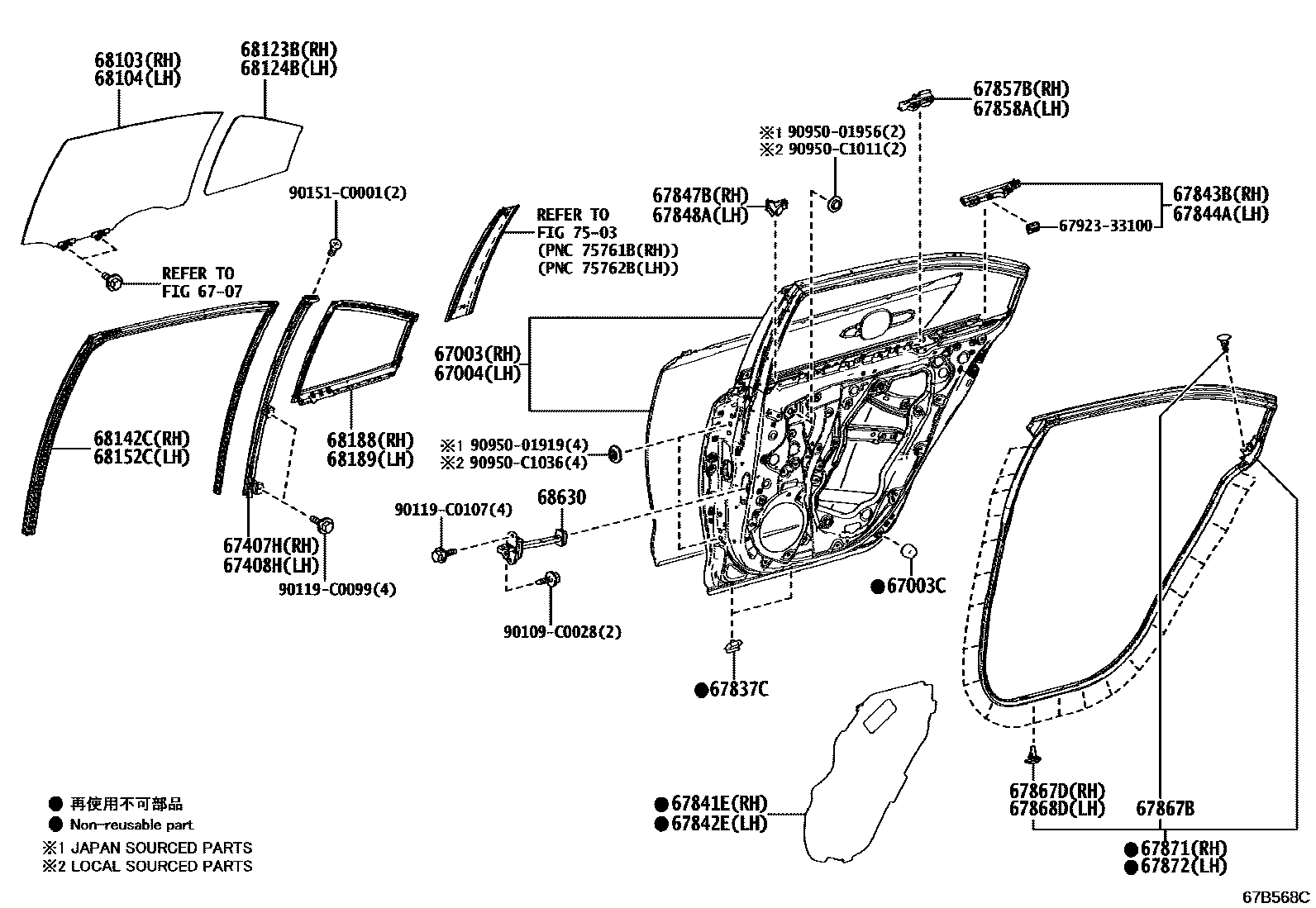

Toyota LEVIN — REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
(J)
(L)
67004PANEL SUB-ASSY, REAR DOOR, LH
6707
67407HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, RH
67408HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, LH
67837CSEAL, REAR DOOR DUST PROOF
(L)
(J)
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67843BCOVER, REAR DOOR SERVICE HOLE, NO.2 RH
67844ACOVER, REAR DOOR SERVICE HOLE, NO.2 LH
67847BSEAL, REAR DOOR VENT, RH NO.1
67848ASEAL, REAR DOOR VENT, LH NO.1
67857BPROTECTOR, REAR DOOR PANEL, RH
67858APROTECTOR, REAR DOOR PANEL, LH
67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
68104GLASS SUB-ASSY, REAR DOOR, LH
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68630CHECK ASSY, REAR DOOR
7503
6792333100CUSHION, FRONT DOOR STIFFENER, NO.1
90109C0028
main90109-C0028
90119C0099
main90119-C0099
90119C0107
main90119-C0107
90151C0001
main90151-C0001
9095001919
9095001956
90950C1011
main90950-C1011
90950C1036
main90950-C1036
39 parts on this diagram · 2 diagrams in section
