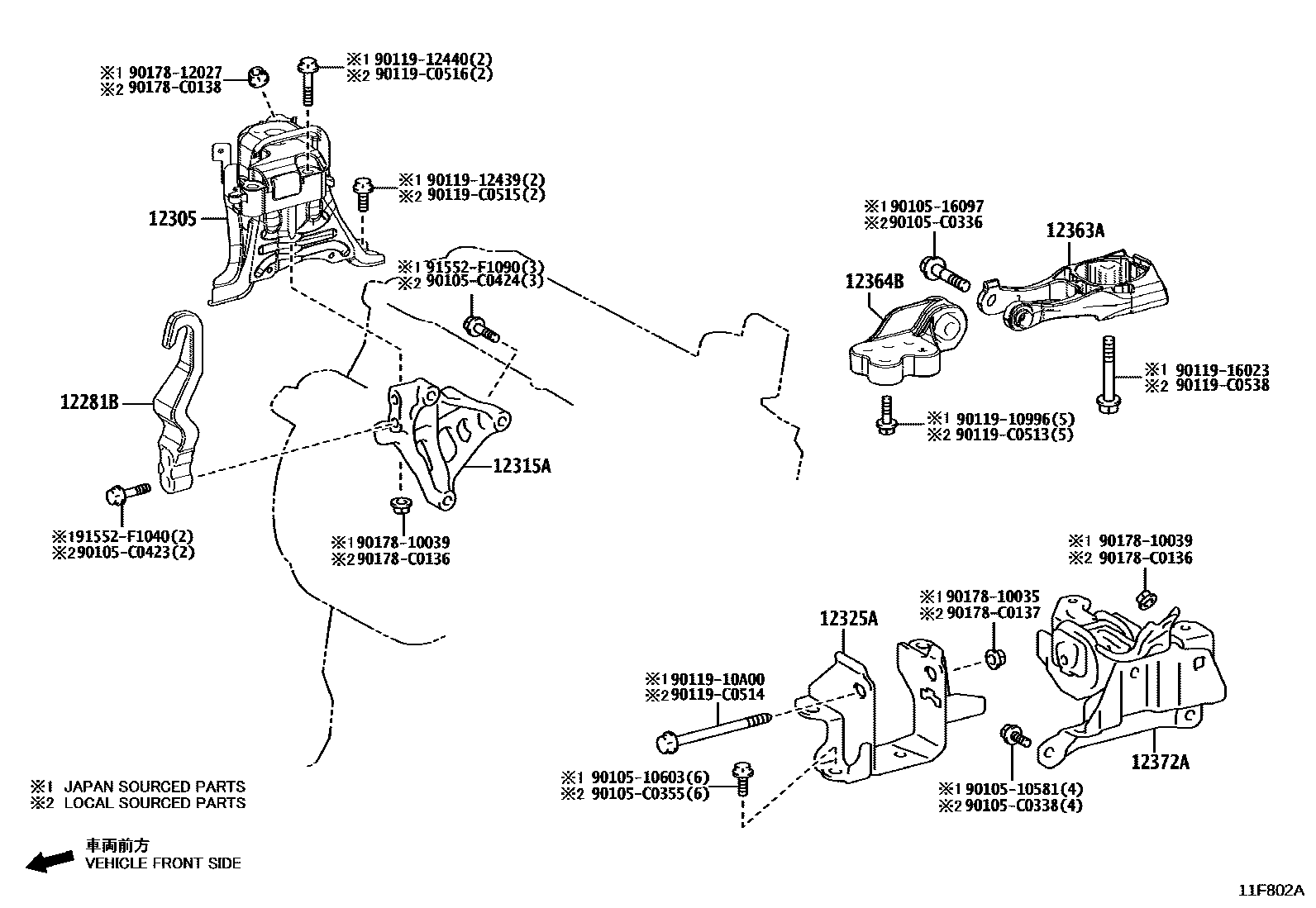

Toyota LEVIN — MOUNTING

0001 1 0002 1

12281BHANGER, ENGINE, NO.1

main12281-F2010iM20..MZEA12202107-202304

main12281-F2010iM20..MZEA12,MZEH16202304

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-F2021iM20..MZEA12202107-202304

main12305-F2021iM20..MZEA12202304

main12305-F2180iM20..MZEH16202307

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-F2090iM20..MZEA12202107-202304

main12315-F2090iM20..MZEA12,MZEH16202304

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-F2120iM20..MZEA12202107-202304

main12325-F2120iM20..MZEA12202304

12363AROD, ENGINE MOVING CONTROL

main12363-F2020iM20..MZEA12202107-202304

main12363-F2020iM20..MZEA12202304

main12363-F2100iM20..MZEH16202307

12364BROD, ENGINE MOVING CONTROL, NO.2

main12364-0T170iM20..MZEH16202307

main12364-F2080iM20..MZEA12202304

main12364-F2080iM20..MZEA12202107-202304

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-F2140iM20..MZEA12202107-202304

main12372-F2140iM20..MZEA12202304-202506

main12372-F2150iM20..MZEH16202307

9010510581

main90105-10581¥100

9010510603

main90105-10603¥100

9010516097

main90105-16097¥430

90105C0336

main90105-C0336

90105C0338

main90105-C0338

90105C0355

main90105-C0355

90105C0423

main90105-C0423

90105C0424

main90105-C0424

9011910996

main90119-10996¥120

9011910A00

main90119-10A00¥240

9011912439

main90119-12439¥190

9011912440

main90119-12440¥240

9011916023

main90119-16023¥490

90119C0513

main90119-C0513

90119C0514

main90119-C0514

90119C0515

main90119-C0515

90119C0516

main90119-C0516

90119C0538

main90119-C0538

9017810035

main90178-10035¥100

9017810039

main90178-10039¥100

9017812027

main90178-12027¥100

90178C0136

main90178-C0136

90178C0137

main90178-C0137

90178C0138

main90178-C0138

91552F1040

main91552-F1040¥120

91552F1090

main91552-F1090¥190

33 parts on this diagram · 2 diagrams in section
