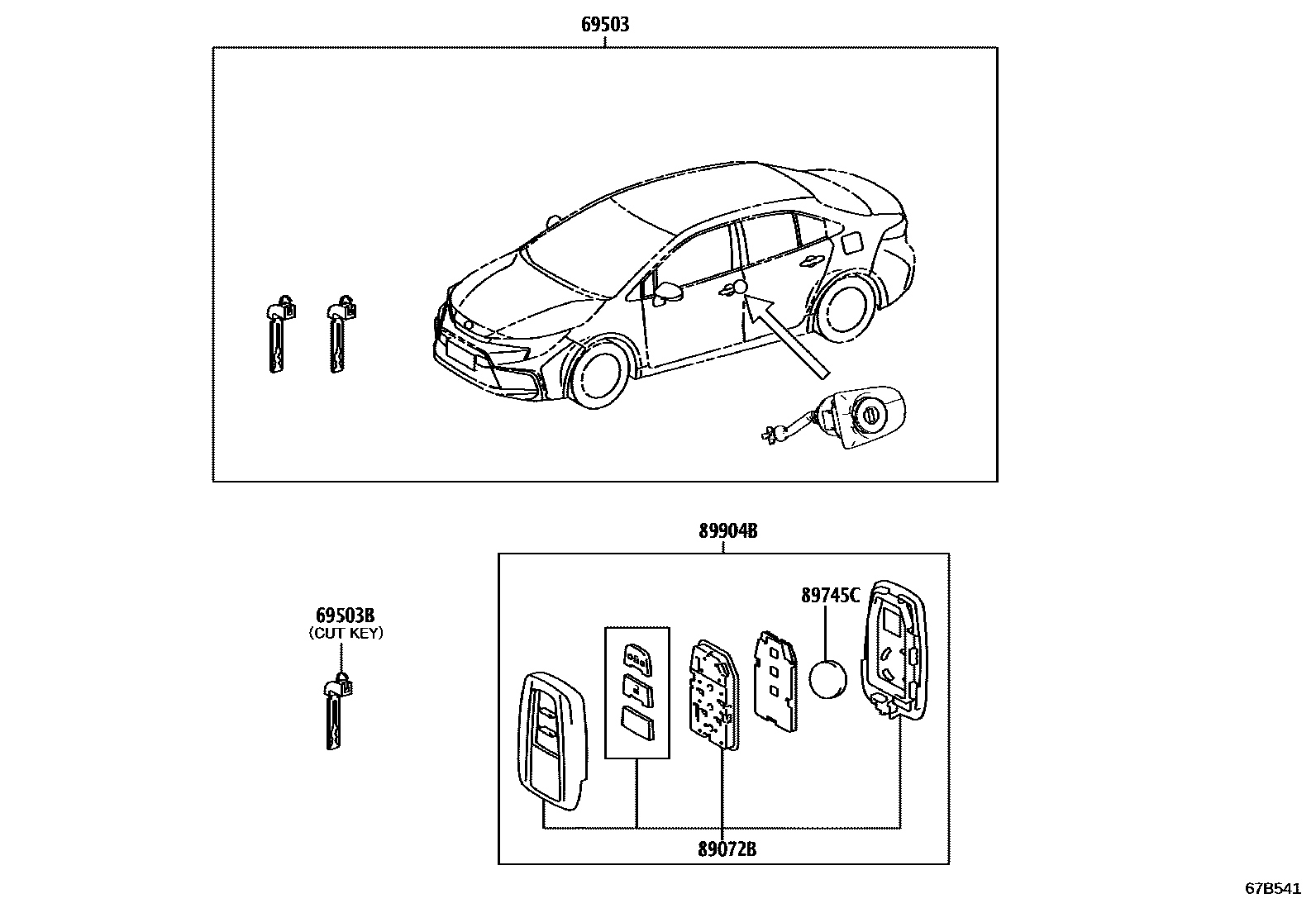

Toyota LEVIN — LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-02L90iMZEA12202107-202304

main69005-02M30iMZEA12,MZEH16202304

69503BKEY, CUT

main69515-0R160iMZEA12,MZEH16202304

MASTER KEY,W(*68)

main69515-F4060iMZEA12202107-202304

MASTER KEY,W(*68)

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-02A70iMZEA12202107-202304

main89072-02B70iMZEA12202304

main89072-02B70iMZEH16202407

main89072-02B80iMZEH16202307-202407

89745CBATTERY, TRANSMITTER

main89745-12020iMZEH16202307-202407

CR2032,DENSO

main89745-50020iMZEA12¥440202107-202304

CR2032

main89745-50020iMZEH16¥440202307-202407

CR2032,PANASONIC

main89745-50020iMZEA12¥440202304

CR2032

main89745-50020iMZEH16¥440202407

CR2032

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-02110iMZEA12202107-202304

main8990H-02410iMZEA12202304-202406

main8990H-02411iMZEA12,MZEH16202407

main8990H-02420iMZEH16202307-202407

sub8990H-02421

5 parts on this diagram · 1 diagram in section
