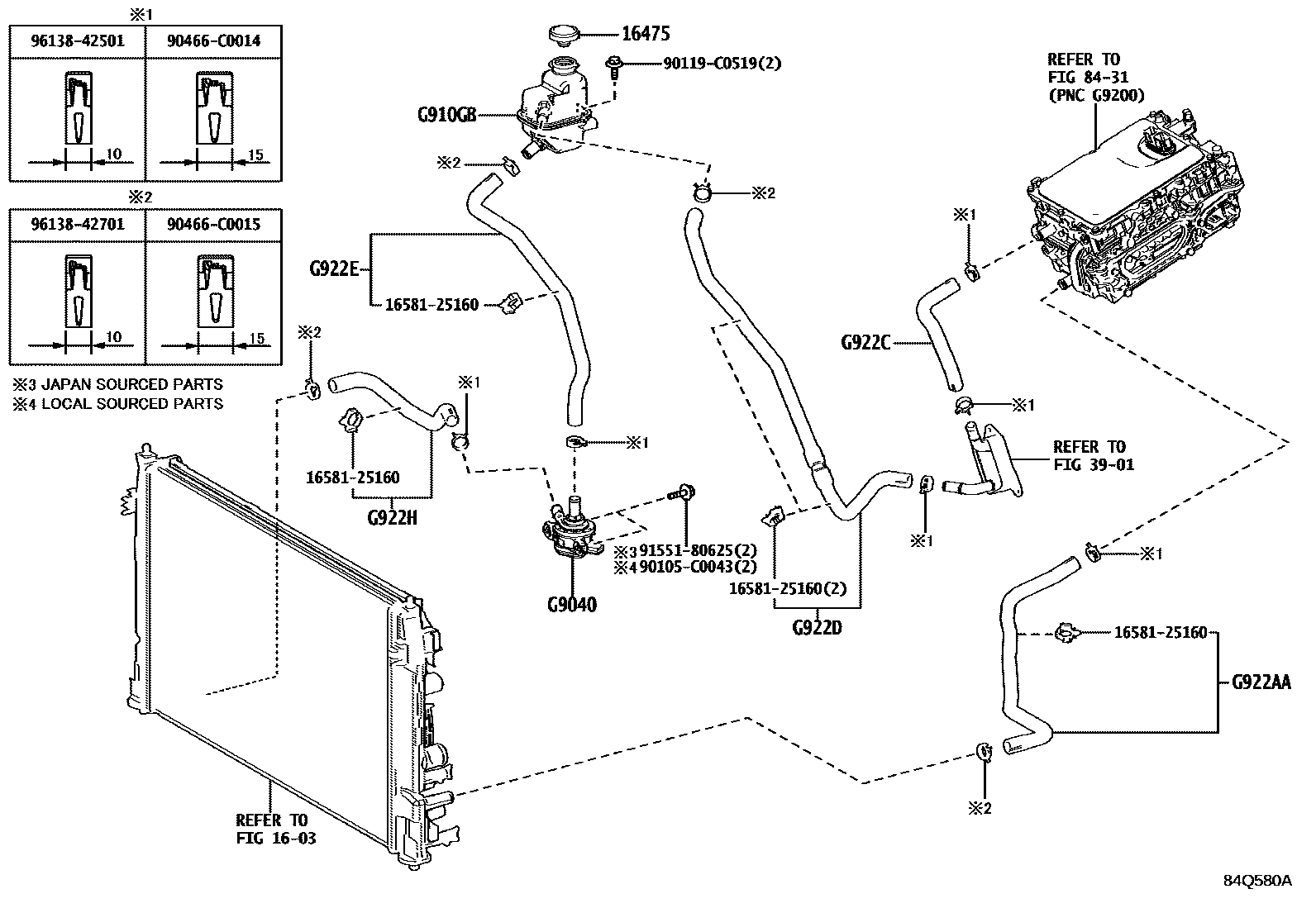

Toyota LEVIN — INVERTER COOLING

1603

16475CAP, RESERVE TANK

main16475-0T081iM20..MZEH16202307

(L)

main16475-28140iM20..MZEH16¥1,200202307

(J)

3901

8431

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904002050iMZEH16202307

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910GF4010iMZEH16202307

G922AAHOSE, INVERTER COOLING INLET, NO.1

mainG922A0A020iMZEH16202307

G922CHOSE, INVERTER COOLING OUTLET, NO.1

mainG922C0A030iMZEH16202307

G922DHOSE, INVERTER COOLING OUTLET, NO.2

mainG922D0A020iMZEH16202307

G922EHOSE, HYBRID WATER PUMP INLET

mainG922E0A020iMZEH16202307

G922HHOSE, HYBRID RADIATOR INLET

mainG922H0A020iMZEH16202307

1658125160CLAMP, HOSE(FOR WATER HOSE)

main16581-25160¥300

90105C0043

main90105-C0043

90119C0519

main90119-C0519

90466C0014

main90466-C0014

90466C0015

main90466-C0015

9155180625

main91551-80625¥60

9613842501

main96138-42501¥180

9613842701

main96138-42701¥200

19 parts on this diagram · 1 diagram in section
