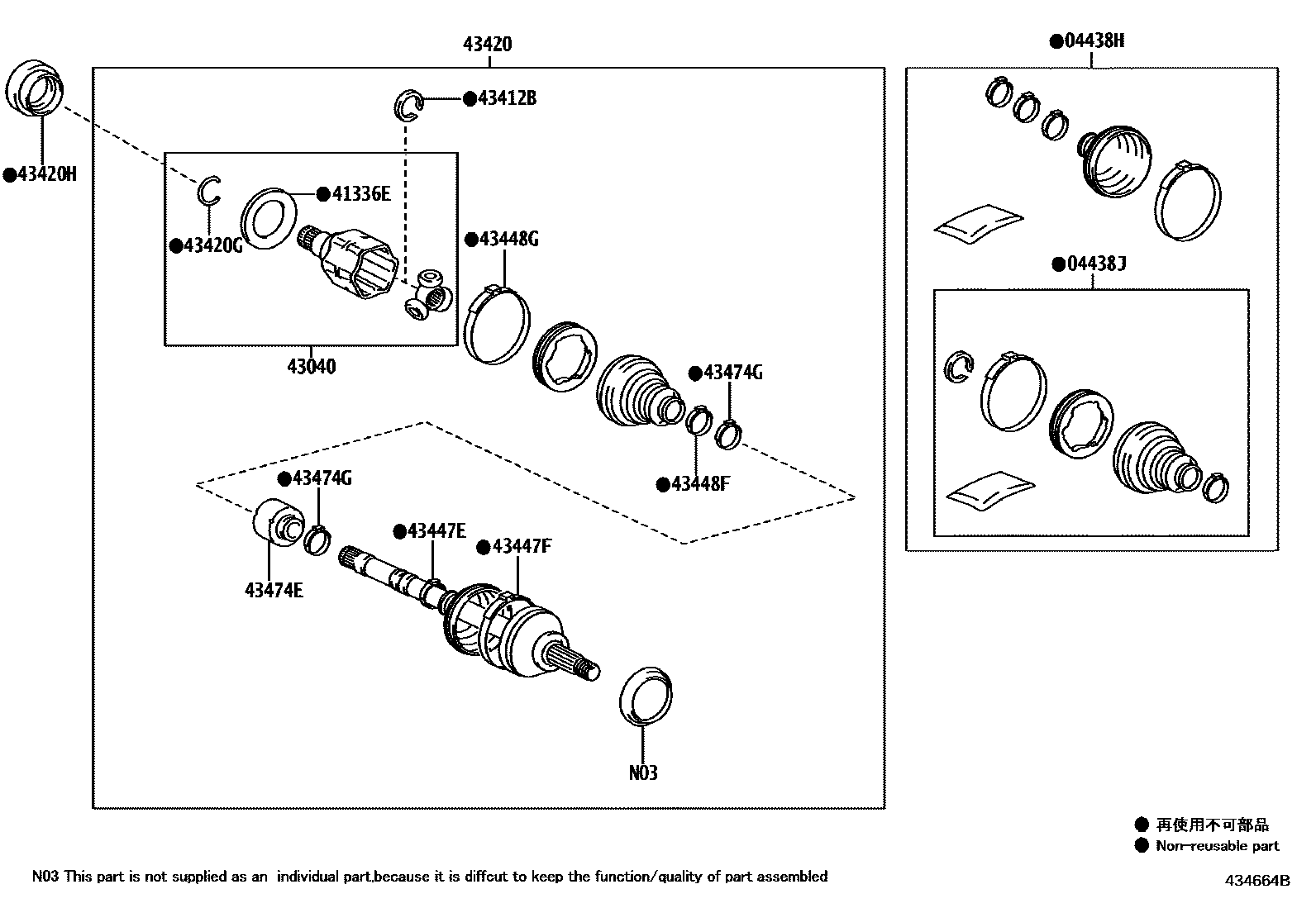

Toyota LEVIN — FRONT DRIVE SHAFT

0001 1LH 0002 1RH 0003 1

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04427-02832iMZEA12202107-202304

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04437-02790iMZEA12202107-202304

41336ECOVER, FRONT DRIVE SHAFT DUST, LH

main41336-06340iMZEA12202107-202304

43040JOINT ASSY, FRONT DRIVE INBOARD, LH

main43040-F4080iMZEA12202107-202304

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main43425-12070iMZEA12¥40202107-202304

(J)

main90520-C0029iMZEA12,MZEH16202107-202304

(L)

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-02K50iMZEA12,MZEH16202107-202304

43420GRING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)

main90520-C0040iMZEA12,MZEH16202107-202304

(L)

main90521-33002iMZEA12,MZEH16¥100202107-202304

(J)

43420HOIL SEAL, FRONT DRIVE SHAFT, LH

main90311-50058iMZEA12¥610202107-202304

main90311-C0045iMZEH16202307

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-12230iMZEA12¥220202107-202304

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-12240iMZEA12¥340202107-202304

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-12230iMZEA12¥220202107-202304

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-12180iMZEA12¥330202107-202304

43474EDAMPER, FRONT DRIVE SHAFT, LH

main43474-02580iMZEA12202107-202304

43474GCLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)

main42345-06420iMZEA12202107-202304

(L)

main42345-12090iMZEA12¥140202107-202304

(J)

14 parts on this diagram · 3 diagrams in section
