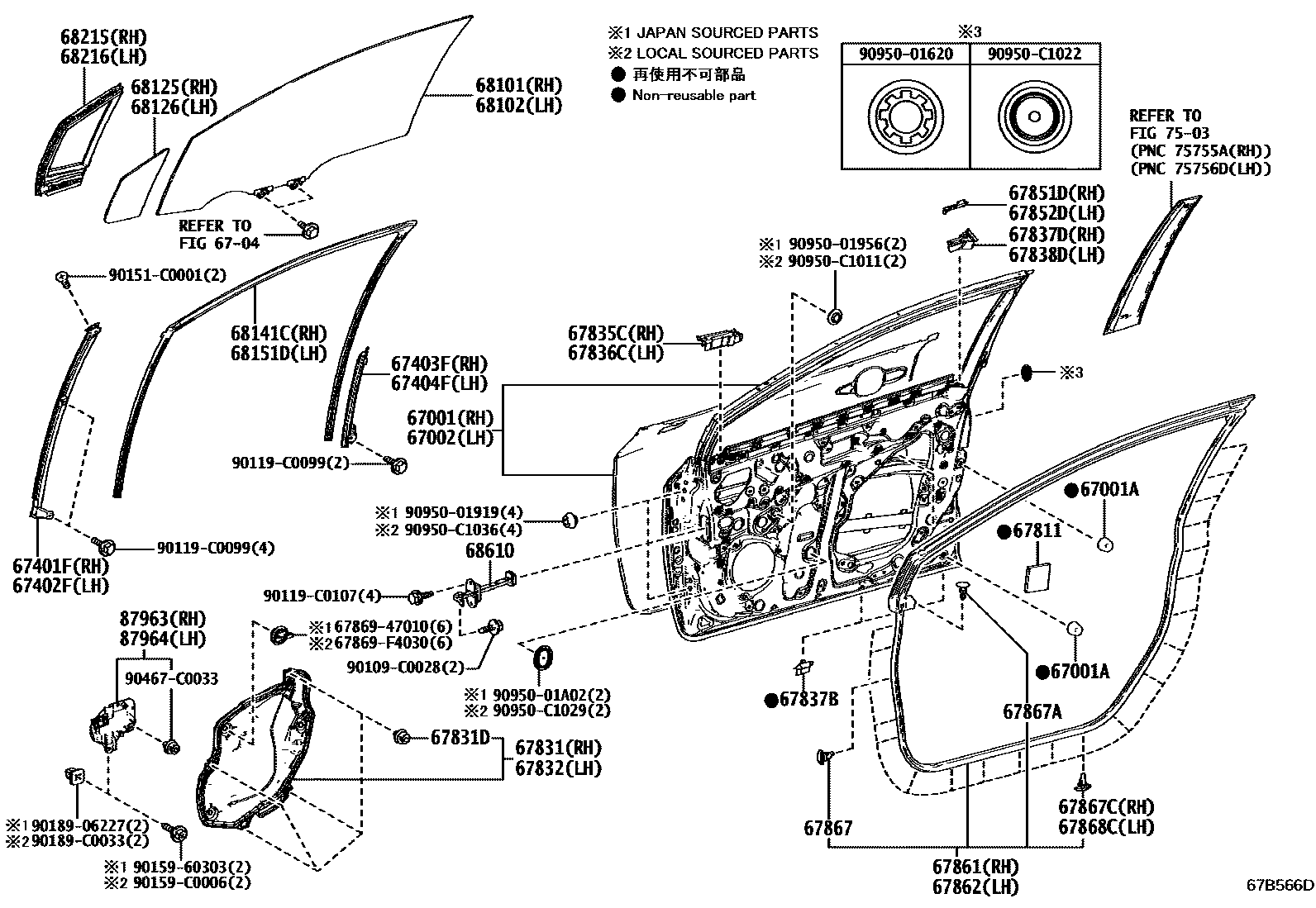

Toyota LEVIN — FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-02610iMZEA12,MZEH16202107-202304

67001ACUSHION, FRONT DOOR PANEL

main90541-09124iMZEA12¥100202107-202304

(J)

main90541-C0003iMZEA12202107-202304

(L)

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-02600iMZEA12,MZEH16202107-202304

6704

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-02100iMZEA12202107-202304

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-02100iMZEA12202107-202304

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-02320iMZEA12202107-202304

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-02310iMZEA12,MZEH16202107-202304

67811PAD, FRONT DOOR SILENCER

main67811-02400iMZEA12,MZEH16202107-202304

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-02510iMZEA12202107-202304

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main90467-C0033iMZEA12202107-202304

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-02510iMZEA12202107-202304

67835CCOVER, FRONT DOOR SERVICE HOLE, NO.3 RH

main67835-02080iMZEA12,MZEH16202107-202304

67836CCOVER, FRONT DOOR SERVICE HOLE, NO.3 LH

main67836-02140iMZEA12202107-202304

67837BSEAL, FRONT DOOR DUST PROOF

main67837-02230iMZEA12202107-202304

(L)

main67837-48050iMZEA12¥80202107-202304

(J)

67837DSEAL, FRONT DOOR VENT, RH

main67837-02190iMZEA12,MZEH16202107-202304

67838DSEAL, FRONT DOOR VENT, LH

main67838-02150iMZEA12202107-202304

67851DSEAL, FRONT DOOR REAR OUTSIDE, RH

main67851-02080iMZEA12202107-202304

67852DSEAL, FRONT DOOR REAR OUTSIDE, LH

main67852-02080iMZEA12202107-202304

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-02400iMZEA12202107-202304

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-02400iMZEA12202107-202304

67867CLIP, DOOR WEATHERSTRIP

main67867-52030iMZEA12¥100202107-202304

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67868-30030iMZEA12¥190202107-202304

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iMZEA12¥100202107-202304

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iMZEA12¥100202107-202304

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-02640iMZEA12202107-202304

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-02640iMZEA12202107-202304

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-02080iMZEA12202107-202304

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-02080iMZEA12202107-202304

68141CRUN, FRONT DOOR GLASS, RH

main68141-02451iMZEA12202107-202304

68151DRUN, FRONT DOOR GLASS, LH

main68151-02441iMZEA12202107-202304

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-02080iMZEA12202107-202304

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-02080iMZEA12202107-202304

68610CHECK ASSY, FRONT DOOR

main68610-02410iMZEA12202107-202304

7503

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-02050iMZEA12202107-202304

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-02050iMZEA12202107-202304

6786947010PLATE, WEATHERSTRIP, CENTER DOOR, UPPER

main67869-47010¥140

67869F4030PLATE, WEATHERSTRIP, CENTER DOOR, UPPER

main67869-F4030

90109C0028

main90109-C0028

90119C0099

main90119-C0099

90119C0107

main90119-C0107

90151C0001

main90151-C0001

9015960303

main90159-60303¥70

90159C0006

main90159-C0006

9018906227

main90189-06227¥70

90189C0033

main90189-C0033

90467C0033

main90467-C0033

9095001620

main90950-01620¥110

9095001919

main90950-01919¥100

9095001956

main90950-01956¥100

9095001A02

main90950-01A02¥100

90950C1011

main90950-C1011

90950C1022

main90950-C1022

90950C1029

main90950-C1029

90950C1036

main90950-C1036

56 parts on this diagram · 2 diagrams in section
