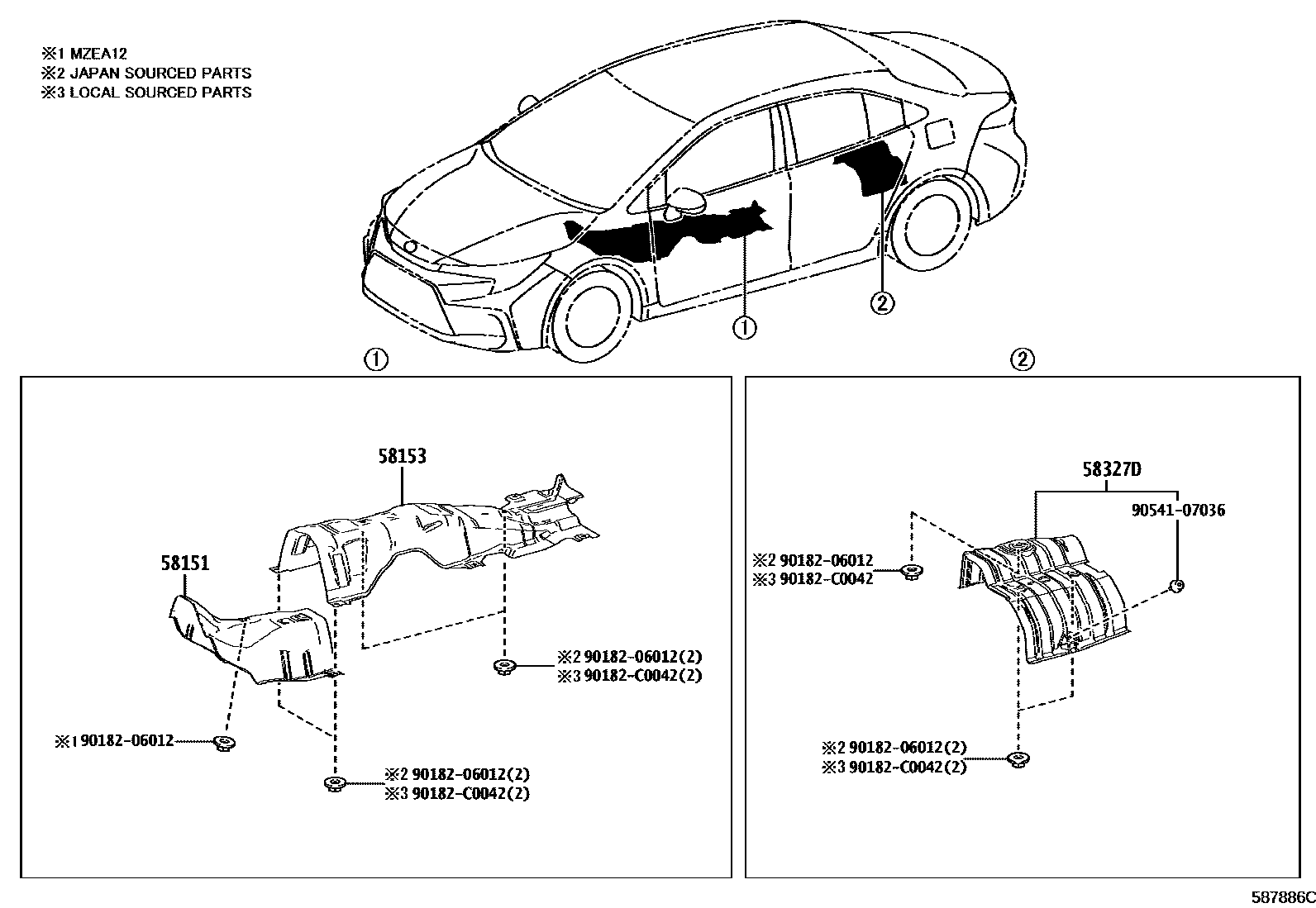

Toyota LEVIN — FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-0A130iMZEA12202304

main58151-0A140iMZEH16202307

main58151-F4080iMZEA12202107-202304

sub58151-0A130

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-02470iMZEA12202107-202201

sub58153-02471

main58153-02471iMZEA12202202-202304

main58153-02471iMZEA12,MZEH16202304

58327DINSULATOR, MAIN MUFFLER HEAT, UPPER

main58327-02320iMZEA12202107-202304

main58327-02320iMZEA12,MZEH16202304

9018206012

main90182-06012¥60

90182C0042

main90182-C0042

9054107036

main90541-07036¥110

6 parts on this diagram · 1 diagram in section
