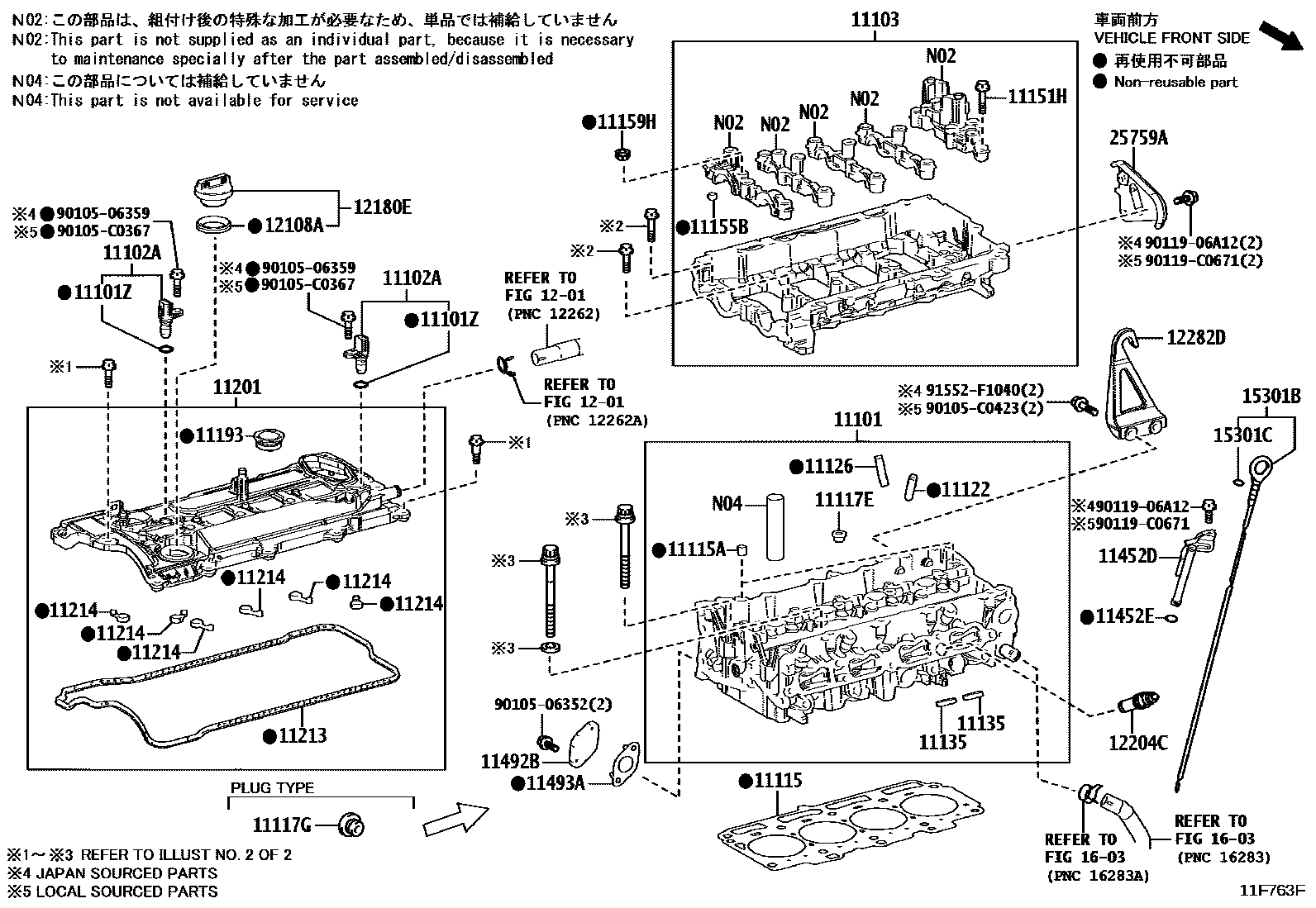

Toyota LEVIN — CYLINDER HEAD
11101ZO RING, CAM POSITION SENSOR
11102ASENSOR, CAMSHAFT POSITION
(J)
(L)
11103HOUSING SUB-ASSY, CAMSHAFT
(J)
(L)
11115GASKET, CYLINDER HEAD
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117GPLUG, W/HEAD STRAIGHT SCREW, NO.3
11122BUSH, INTAKE VALVE GUIDE
STD
STD
STD
O/S 0.05
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
STD
O/S 0.05
O/S 0.05
11135SEAT, EXHAUST VALVE
STD
STD
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
(J)
(L)
11155BPIN, RING
(J)
(J)
(L)
(L)
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
11193GASKET, SPARK PLUG TUBE
(J)
(L)
11213GASKET, CYLINDER HEAD COVER
(J)
(L)
11214GASKET, CYLINDER HEAD COVER, NO.2
11452DGUIDE, OIL LEVEL GAGE
11452ERING, O(FOR OIL LEVEL GAGE GUIDE)
(L)
(L)
(J)
(J)
11492BPLATE, WATER SEAL
(J)
(L)
11493AGASKET, WATER SEAL PLATE
1201
12108AGASKET(FOR OIL FILLER CAP)
12180ECAP ASSY, OIL FILLER
12204CVALVE SUB-ASSY, VENTILATION
12282DHANGER, ENGINE, NO.2
15301BGAGE SUB-ASSY, OIL LEVEL
15301CRING, O(FOR OIL LEVEL GAGE)
(L)
(L)
(J)
(J)
1603
25759ABRACKET, VACUUM SURGE TANK
9010506352
9010506359
90105C0367
main90105-C0367
90105C0423
main90105-C0423
9011906A12
90119C0671
main90119-C0671
91552F1040
38 parts on this diagram · 3 diagrams in section
