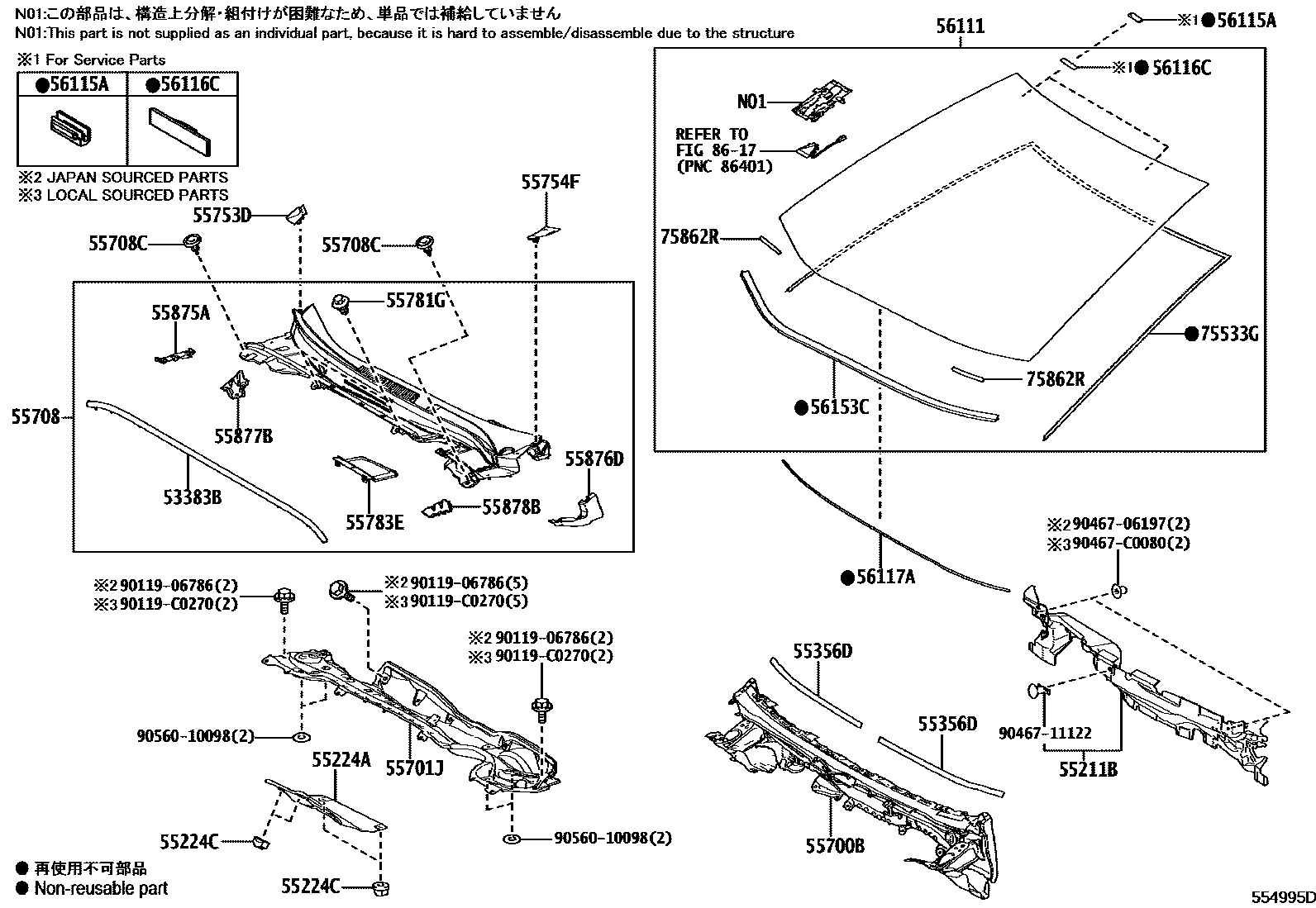

Toyota LEVIN — COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
55211BSILENCER, FRONT PANEL
(L)
(J)
55224AINSULATOR, DASH PANEL, OUTER NO.2
55224CCLIP, DASH PANEL INSULATOR
BLACK
BLACK,TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
55356DCUSHION, INSTRUMENT PANEL, NO.2
55700BCOWL ASSY
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708CCLIP, COWL TOP VENTILATOR LOUVER
(J)
(L)
55753DSHIELD, COWL WATER EXTRACT, RH
55754FSHIELD, COWL WATER EXTRACT, LH
55781GCLIP, COWL TOP VENTILATOR LOUVER
55783ELOUVER, COWL TOP VENTILATOR, CENTER
55875ASEAL, AIR DUCT, NO.5
55876DSEAL, AIR DUCT, NO.6
55877BCOVER, COWL VENT, RH
55878BCOVER, COWL VENT, LH
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=1298
56153CMOULDING, FRONT WINDOW, INNER CENTER
75533GMOULDING, WINDSHIELD, OUTSIDE
75862RPROTECTOR, ROCKER PANEL MOULDING, NO.2
8617
9011906786
90119C0270
main90119-C0270
9046706197
9046711122
90467C0080
main90467-C0080
9056010098
31 parts on this diagram · 2 diagrams in section
