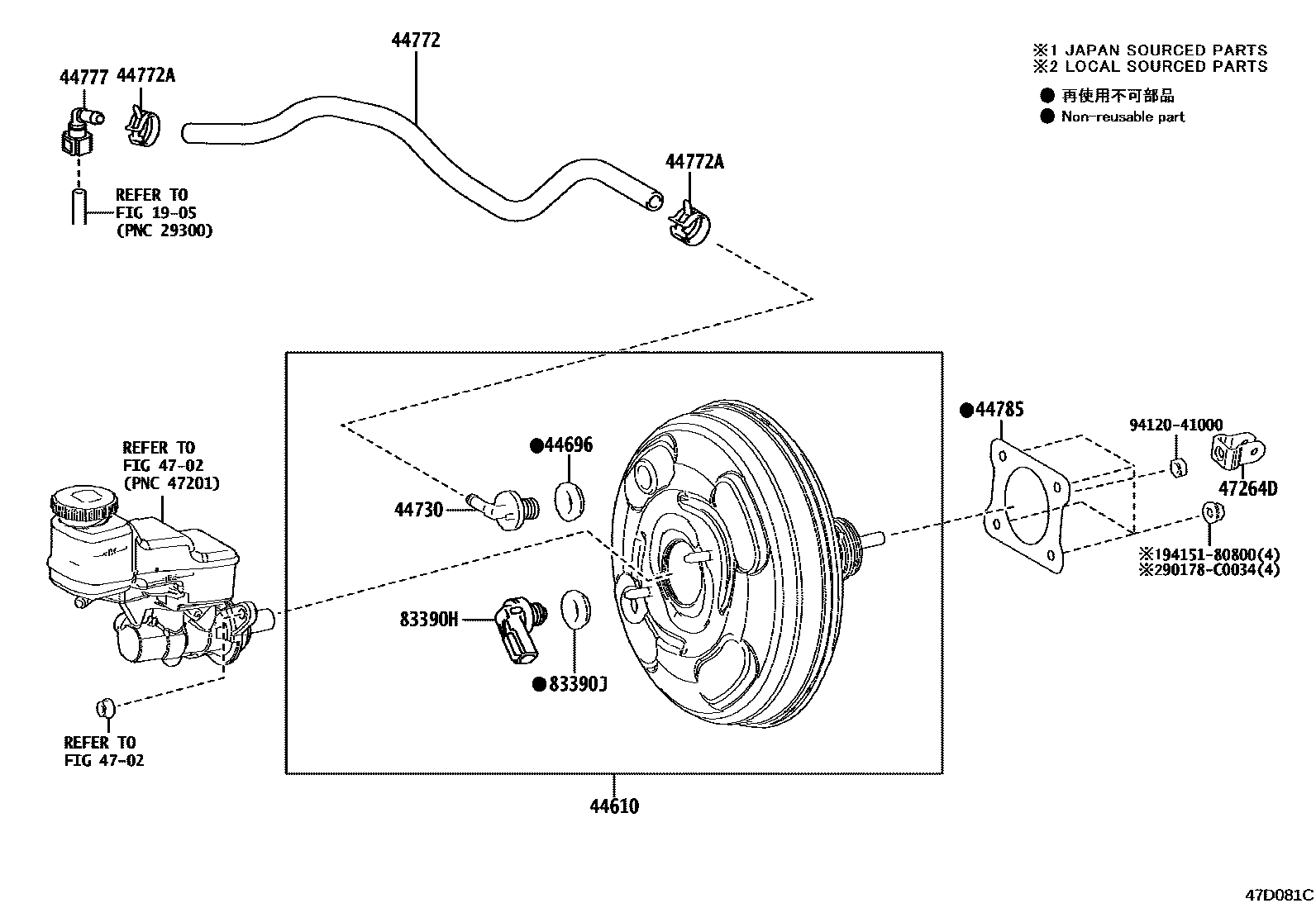

Toyota LEVIN — BRAKE BOOSTER & VACUUM TUBE
1905
44696GROMMET, CHECK VALVE
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44772HOSE, CHECK VALVE TO CONNECTOR TUBE
44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
(L)
(L)
(J)
(J)
44777CONNECTOR, VACUUM HOSE, NO.1
(J)
(J)
(L)
(L)
4702
47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD
83390HSWITCH ASSY, VACUUM WARNING
83390JGROMMET, VACUUM WARNING SWITCH
90178C0034
main90178-C0034
9412041000
9415180800
15 parts on this diagram · 1 diagram in section
