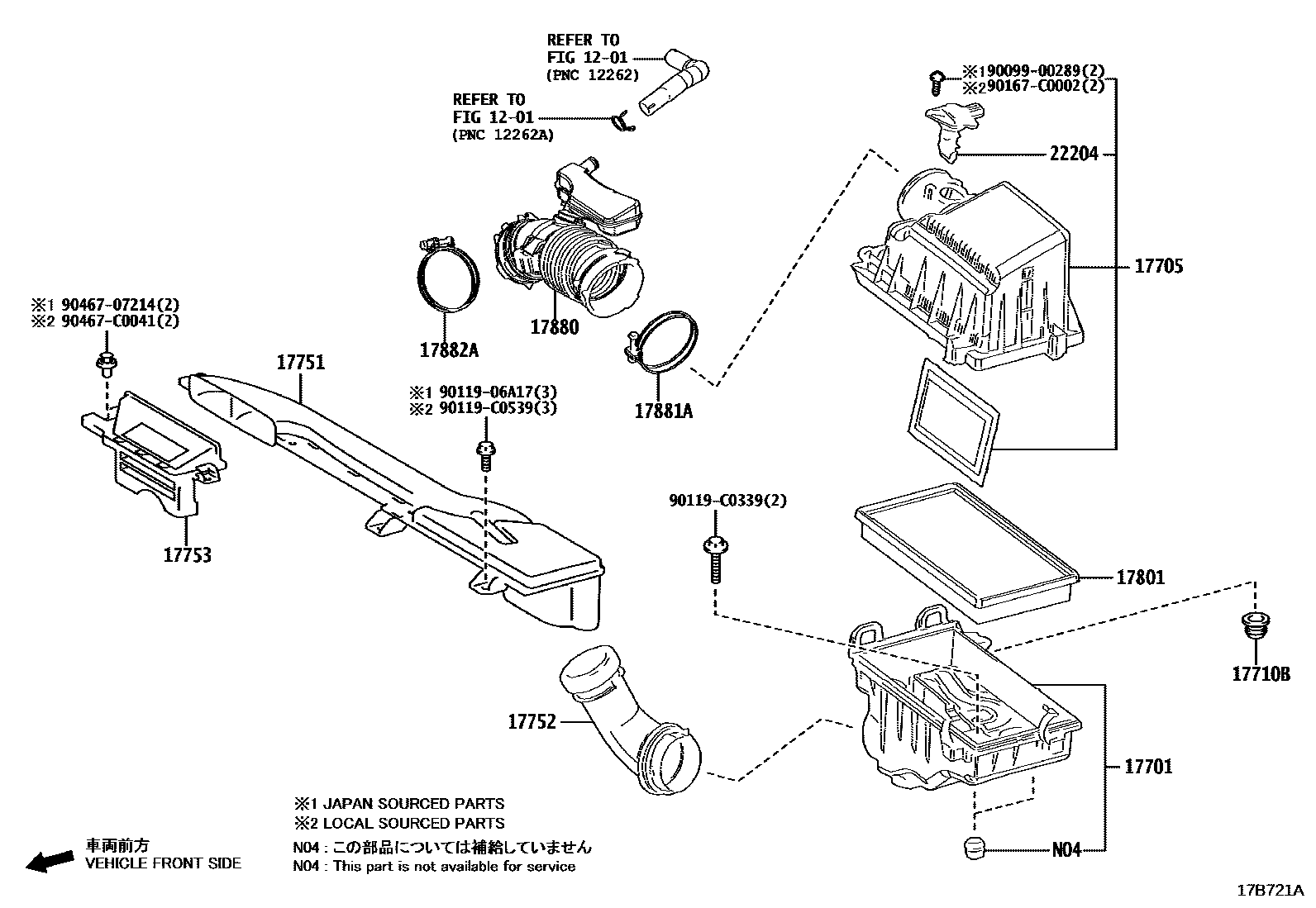

Toyota LEVIN — AIR CLEANER
1201
17701CASE SUB-ASSY, AIR CLEANER
17705CAP SUB-ASSY, AIR CLEANER
17751INLET, AIR CLEANER, NO.1
17752INLET, AIR CLEANER, NO.2
(J)
(L)
17753INLET, AIR CLEANER, NO.3
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
(J)
MARK 17801-77050
MARK 17801-F0040
MARK 17801-F2010
(L)
17880HOSE ASSY, AIR CLEANER
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
22204METER SUB-ASSY, INTAKE AIR FLOW
9009900289
9011906A17
90119C0339
main90119-C0339
90119C0539
main90119-C0539
90167C0002
main90167-C0002
9046707214
90467C0041
main90467-C0041
19 parts on this diagram · 2 diagrams in section
