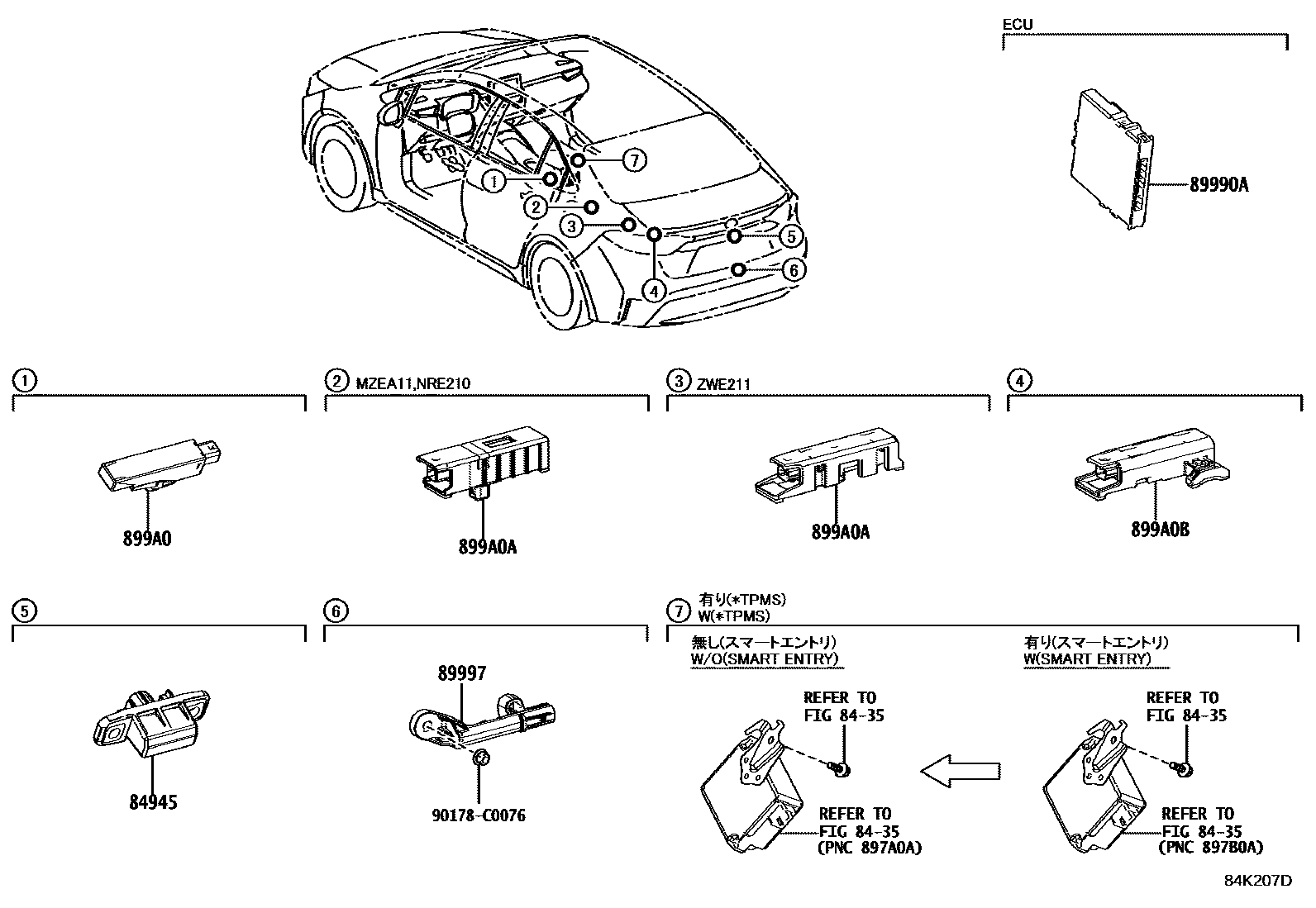

Toyota LEVIN/HYBRID — WIRELESS DOOR LOCK

0001 1 0002 1

8435

84945SWITCH, LUGGAGE ELECTRICAL KEY

main84945-02080iZWE211;NRE210..G;MZEA11..CVT..(E,G)201906-202303

WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)

main84945-02080iNRE210..E201906

main84945-02110iMZEA17,ZWE219202304

89990ACOMPUTER ASSY, SMART KEY

main899H0-02300iNRE210..E,G201906-202010

main899H0-02310iZWE211..E,G201906-202101

main899H0-02320iZWE211..N201906-202101

main899H0-02550iNRE210..E202010-202303

main899H0-02560iZWE211..E,G202101-202303

main899H0-02580iZWE211..N202101-202303

main899H0-02640iMZEA17..E,G202304

main899H0-02650iMZEA17..N202304

VFM PACKAGE

main899H0-02660iZWE219..E,G202304

main899H0-02670iZWE219..N202304

89997ANTENNA, ELECTRICAL KEY

main89997-0E060iMZEA11,NRE210..E,G201906-202309

sub89997-0E061

main89997-0E060iZWE211201906-202303

WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)

sub89997-0E061

main89997-0E061iMZEA17,ZWE219202301-202303

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-02330iNRE210..E201906-202406

sub899A0-02450

main899A0-02330iZWE211;NRE210..G;MZEA11..E,G201906-202303

WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)

sub899A0-02450

main899A0-02450iNRE210..E202403

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-02340iNRE210..N201906-202101

WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)

main899A0-02350iZWE211201906-202101

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-02360iMZEA11,NRE210..CVT..N201906-202303

WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)

main899A0-02360iNRE210..E201906

main899A0-02460iMZEA17,ZWE219202407

main899A0-0R170iMZEA17,ZWE219202304-202406

sub899A0-02460

90178C0076

main90178-C0076

8 parts on this diagram · 2 diagrams in section
