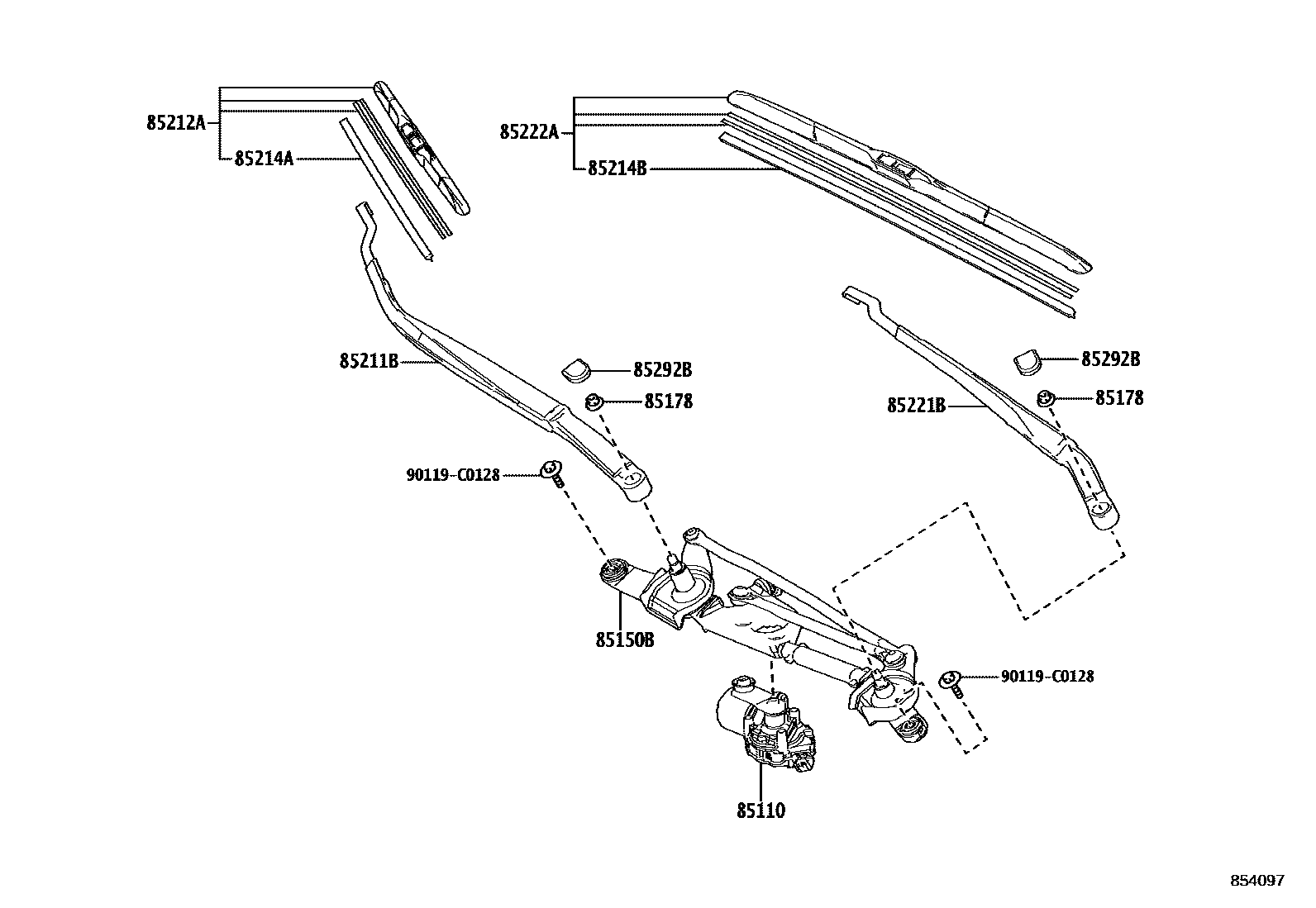

Toyota LEVIN/HYBRID — WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-02570iNRE210..G,N;MZEA11,ZWE211202101-202303

(L)

main85110-12C30iMZEA17,ZWE219202101-202303

(J)

main85110-12C30iNRE210,ZWE211201906-202101

85150BLINK ASSY, WIPER

main85150-02500iMZEA11,NRE210,ZWE211201906-202303

main85150-02530iMZEA17,ZWE219202303

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-C0012iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

85211BARM, FRONT WIPER, RH

main85211-02500iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

85212ABLADE, FR WIPER, RH

main85212-02320iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

85214ARUBBER, WIPER, RH

main85214-02260iNRE210..E201906-202303

85214BRUBBER, WIPER, LH

main85214-02420iNRE210..G,N;MZEA11,ZWE211202103-202303

(L)

main85214-28080iNRE210..G,N;MZEA11,ZWE211¥900201906-202303

(J)

85221BARM, FRONT WIPER, LH

main85221-02500iNRE210..E202303

main85221-02520iMZEA11,NRE210,ZWE211201906-202303

85222ABLADE, FR WIPER, LH

main85222-02500iNRE210..E202103-202303

(L)

main85222-52270iNRE210..G,N;MZEA11,ZWE211¥4,620201906-202303

(J)

85292BCAP, FRONT WIPER ARM HEAD

main85292-0D110iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

90119C0128

main90119-C0128

11 parts on this diagram · 2 diagrams in section
