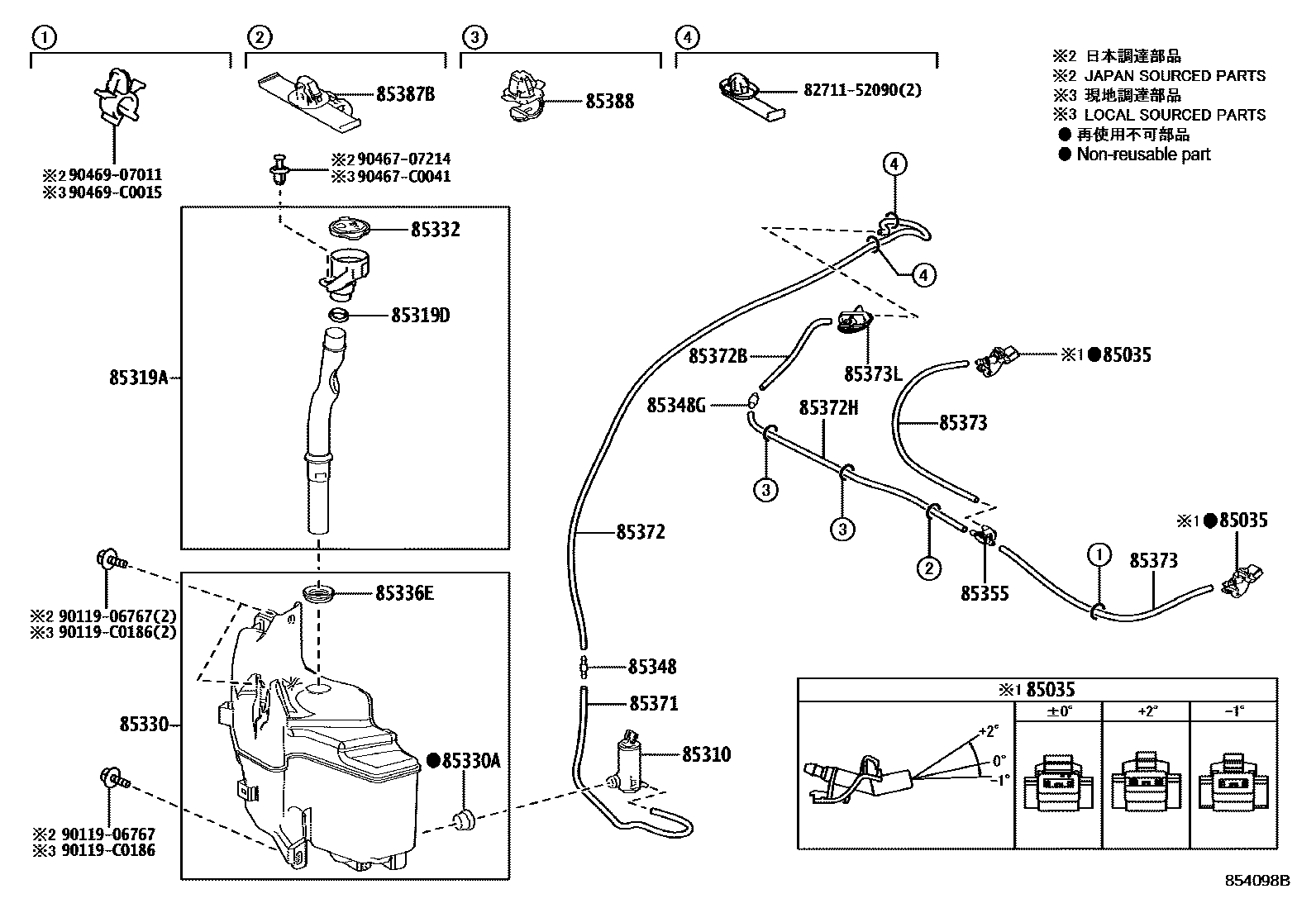

Toyota LEVIN/HYBRID — WINDSHIELD WASHER

0001 1 0002 1

85035NOZZLE SUB-ASSY, WASHER

main85381-0E090iNRE210..E202303

ANGLE 0

main85381-0E090iMZEA17,ZWE219202304

ANGLE 0

main85381-0E100iMZEA17,ZWE219202304

ANGLE +2

main85381-0E100iNRE210..E202303

ANGLE +2

main85381-0E110iMZEA17,ZWE219202304

ANGLE -2

main85381-0E110iNRE210..E202303

ANGLE -2

main85381-12360iMZEA11,NRE210,ZWE211201906-202303

ANGLE 0

main85381-12440iMZEA11,NRE210,ZWE211¥0201906-202303

ANGLE +2

main85381-33080iMZEA11,NRE210,ZWE211201906-202303

ANGLE -1

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-02110iNRE210..E202303

main85330-02110iMZEA17,ZWE219202304

main85330-33070iMZEA11,NRE210,ZWE211¥0201906-202303

85319AHOSE, INLET

main85319-02830iMZEA11,NRE210,ZWE211201906-202303

85319DPACKING, FRONT WASHER

main85336-42320iMZEA11,NRE210,ZWE211¥0201906-202303

85330JAR ASSY, WINDSHIELD WASHER

main85315-02830iMZEA11,NRE210,ZWE211201906-202303

main85315-02890iNRE210..E202303

main85315-02890iMZEA17,ZWE219202304

85330ABUSH, WINDSHIELD WASHER JAR

main90069-52046iNRE210..E202303

main90069-52046iMZEA17,ZWE219202304

main90099-32089iMZEA11,NRE210,ZWE211201906-202303

85332CAP, WINDSHIELD WASHER JAR

main85316-02530iMZEA17,ZWE219202304

main85316-02530iNRE210..E202303

main85316-06120iMZEA11,NRE210,ZWE211201906-202303

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-30160iMZEA11,NRE210,ZWE211201906-202303

main90069-52047iNRE210..E202303

main90069-52047iMZEA17,ZWE219202304

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-02530iNRE210..E202303

main85375-02530iMZEA17,ZWE219202304

main85375-0E140iMZEA11,NRE210,ZWE211201906-202303

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-02530iNRE210..E202303

main85375-02530iMZEA17,ZWE219202304

main85375-0E140iMZEA11,NRE210,ZWE211201906-202303

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iMZEA11,NRE210,ZWE211¥680201906-202303

main85376-02750iNRE210..E202303

main85376-02750iMZEA17,ZWE219202304

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90068-33348iMZEA11,NRE210,ZWE211201906-202303

L=500

main90069-46165iMZEA17,ZWE219202304

L=303

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-33345iMZEA11,NRE210,ZWE211201906-202303

L=1090

main90069-46158iNRE210..E202303

L=1050

main90069-46158iMZEA17,ZWE219202304

L=1050

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-33347iMZEA11,NRE210,ZWE211201906-202303

L=280

main90069-46159iNRE210..E202303

L=280

main90069-46159iMZEA17,ZWE219202304

L=280

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90068-33350iMZEA11,NRE210,ZWE211201906-202303

L=510

main90069-46160iNRE210..E202303

L=174

main90069-46160iMZEA17,ZWE219202304

L=174

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33351iMZEA11,NRE210,ZWE211201906-202303

L=465

main90069-46162iNRE210..E202303

L=248,ANGLE 0

main90069-46162iMZEA17,ZWE219202304

L=248,ANGLE 0

main90069-46163iNRE210..E202303

L=248,ANGLE +2

main90069-46163iMZEA17,ZWE219202304

L=248,ANGLE +2

main90069-46164iNRE210..E202303

L=248,ANGLE -2

main90069-46164iMZEA17,ZWE219202304

L=248,ANGLE -2

85373LGROMMET, WASHER

main85373-12050iMZEA11,NRE210,ZWE211¥0201906-202303

main85373-33030iNRE210..E¥0202303

main85373-33030iMZEA17,ZWE219¥0202304

85387BCLAMP, WASHER, NO.3

main82711-35750iMZEA11,NRE210,ZWE211¥110201906-202303

85388CLAMP NO.2 (FOR WINDSEIELD WASHER)

main85371-0A040iMZEA11,NRE210,ZWE211202208-202302

main85371-12040iMZEA11,NRE210,ZWE211¥100201906-202207

main85371-12040iMZEA11,NRE210,ZWE211¥100202302-202303

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090¥80

9011906767

main90119-06767¥60

90119C0186

main90119-C0186

9046707214

main90467-07214¥70

90467C0041

main90467-C0041

9046907011

main90469-07011¥110

90469C0015

main90469-C0015

26 parts on this diagram · 2 diagrams in section
