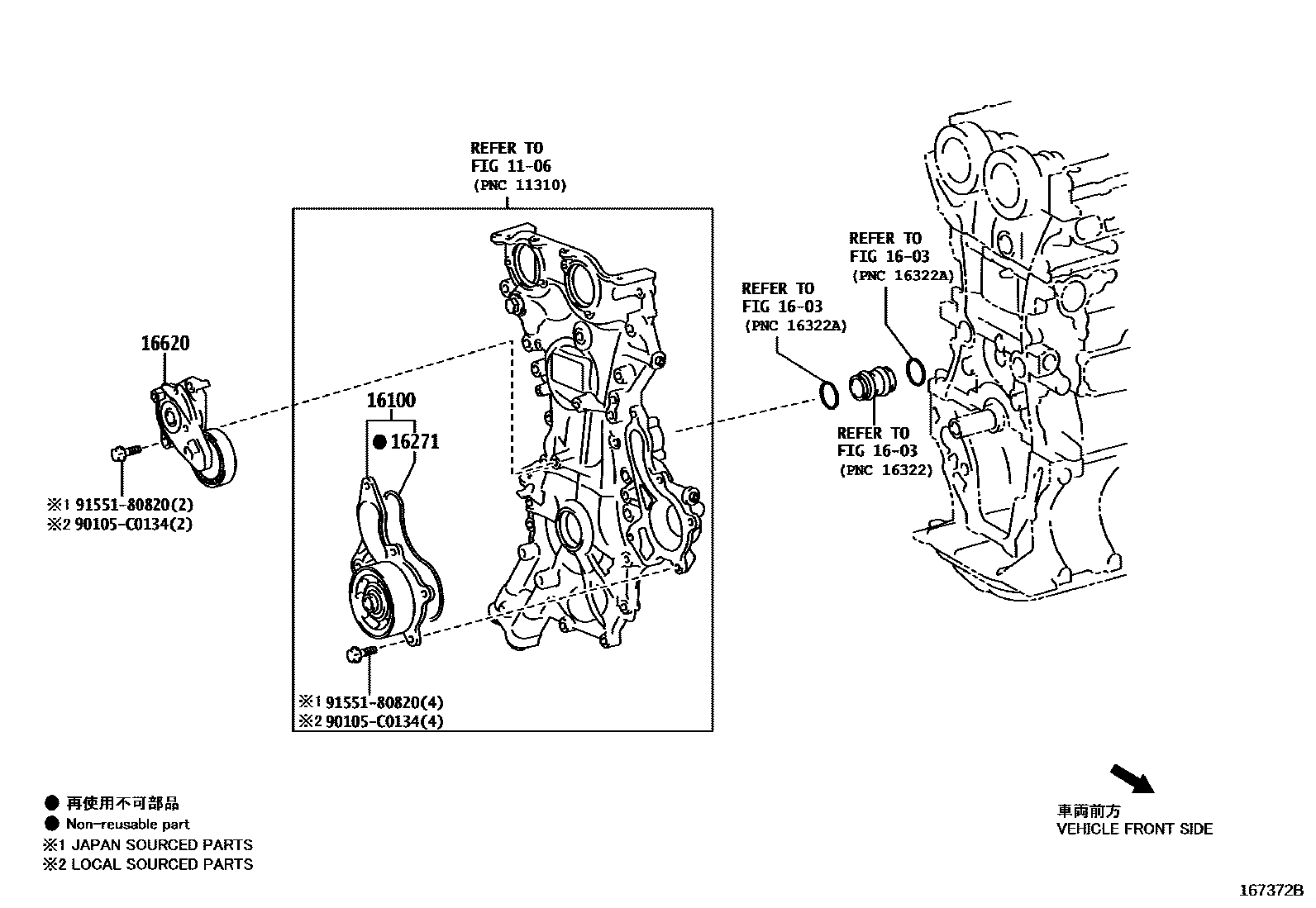

Toyota LEVIN/HYBRID — WATER PUMP

0001 1 0002 1 0003 1

1106

1603

16100PUMP ASSY, ENGINE WATER

main16100-09760i9NRFTS..NRE210..E201906-202303

(L),*497,*615

main16100-80014i9NRFTS..NRE210¥9,000202106-202303

*474

main16100-80014i9NRFTS..NRE210..G,N¥9,000201906-202303

(J),*497,*615

main161A0-39035i8ZRFXE..ZWE211¥15,000201906-202303

main161A0-39045i8ZRFXE..ZWE219¥15,000202304

16271GASKET, WATER PUMP

main16271-0Y050i9NRFTS..NRE210..G,N202007-202303

*497,*615

main16271-0Y050i9NRFTS..NRE210201906-202007

main16271-37020i8ZRFXE..ZWE211¥470201906-202303

main16271-47060i9NRFTS..NRE210¥410202007-202303

*474

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0Y030i9NRFTS..NRE210..E202007-202303

*497,*615

main16620-0Y030i9NRFTS..NRE210201906-202007

main16620-47061i9NRFTS..NRE210¥11,200202007-202303

*474

90105C0134

main90105-C0134

9155180820

main91551-80820¥80

7 parts on this diagram · 3 diagrams in section
