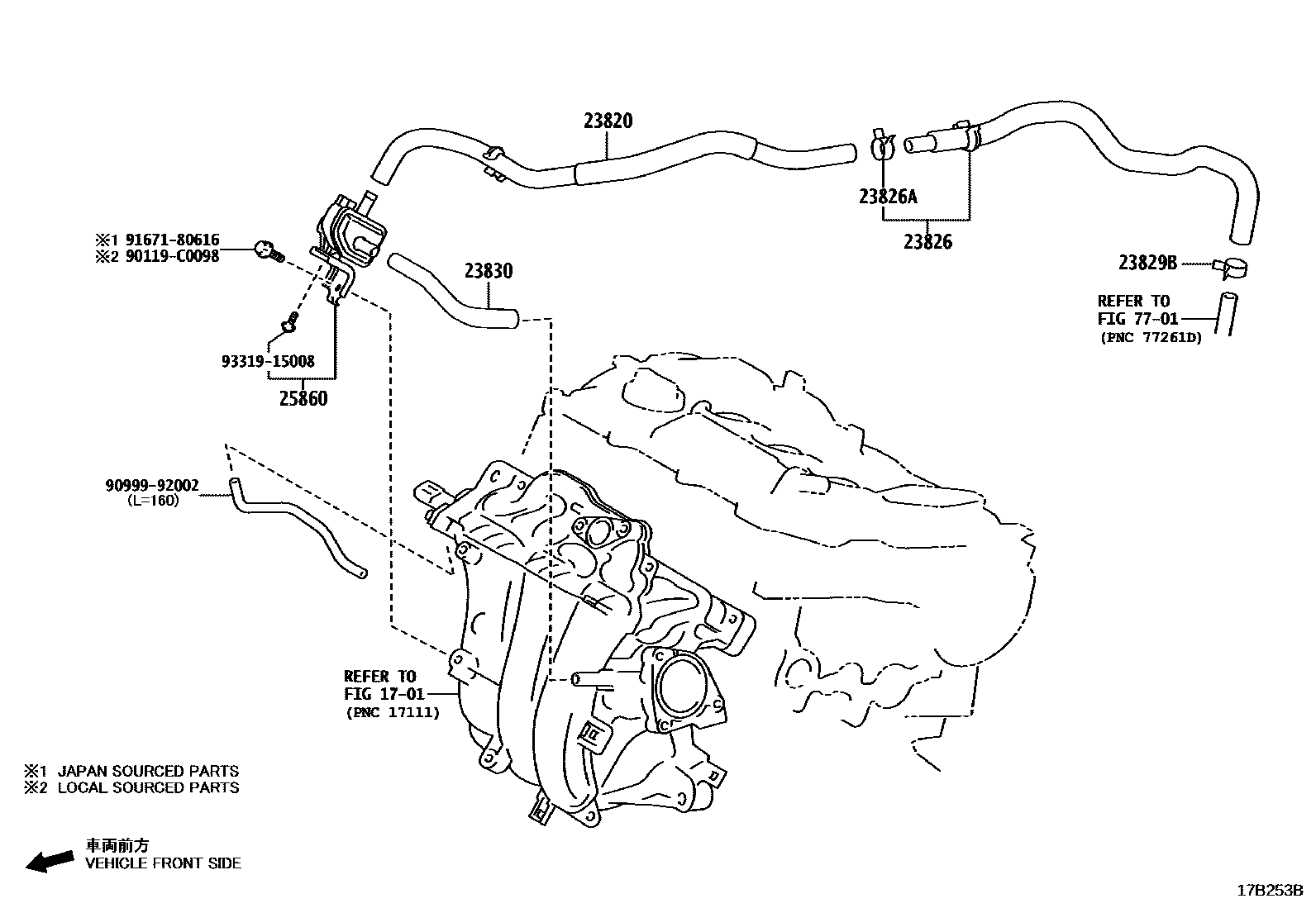

Toyota LEVIN/HYBRID — VACUUM PIPING
1701
23820HOSE ASSY, FUEL VAPOR FEED
23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
(L)
(L)
(J)
(J)
23829HOSE, FUEL VAPOR FEED, NO.3
*497,*615
*497,*615
*474
*497,*615
*474
23829BCLIP(FOR FUEL VAPOR FEED HOSE)
(L)
(L)
(L)
(L)
(J)
(J)
(J)
(J)
23830HOSE ASSY, FUEL VAPOR FEED, NO.2
25860VALVE ASSY, VACUUM SWITCHING, NO.1
*497,*615
*497,*615
*474
7701
90119C0098
main90119-C0098
9099992002
9167180616
9331915008
13 parts on this diagram · 5 diagrams in section
