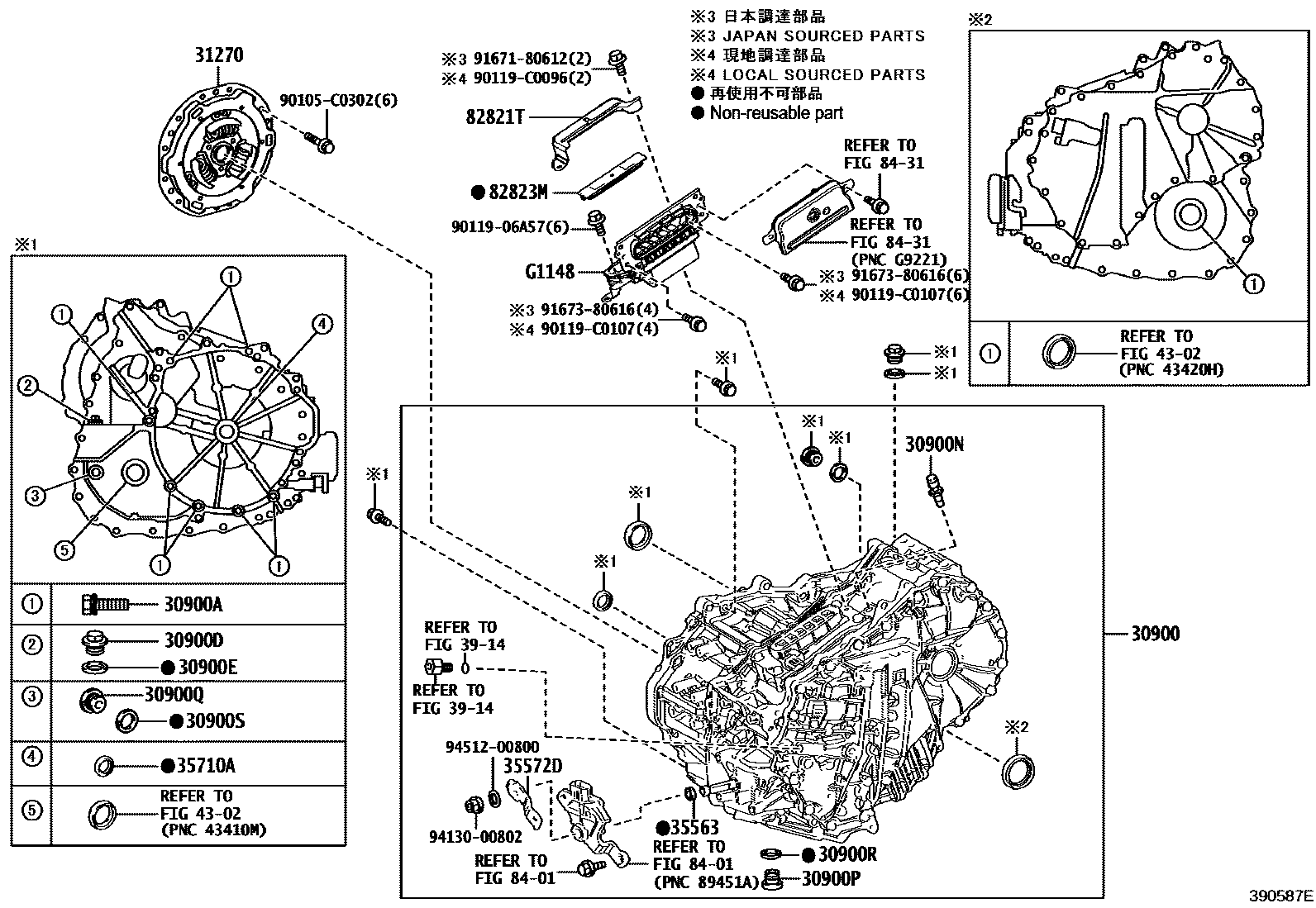

Toyota LEVIN/HYBRID — TRANSAXLE ASSY(HEV OR BEV OR FCEV)
30900ABOLT(FOR HYBRID VEHICLE TRANSAXLE & ENGINE SETTING)
*10-1.25PX45-30
*10-1.25PX45-30,(L)
*10-1.25PX45-30,(J)
30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)
(J)
(L)
30900EGASKET(FOR TRANSAXLE HOUSING & CASE)
30900NPLUG, BREATHER(FOR TRANSAXLE)
30900RGASKET, DRAIN PLUG(HEV)
(J)
(L)
30900SGASKET, FILLER PLUG(HEV)
(J)
(L)
31270DAMPER ASSY, TRANSMISSION INPUT
35563SEAL, SHIFT CONTROL ACTUATOR
(L)
35572DLEVER, TRANSMISSION CONTROL SHAFT
35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)
(L)
3914
4302
82821TCOVER, CONNECTOR
8401
90105C0302
main90105-C0302
9011906A57
90119C0096
main90119-C0096
90119C0107
main90119-C0107
9167180612
9167380616
9413000802
9451200800
27 parts on this diagram · 2 diagrams in section
